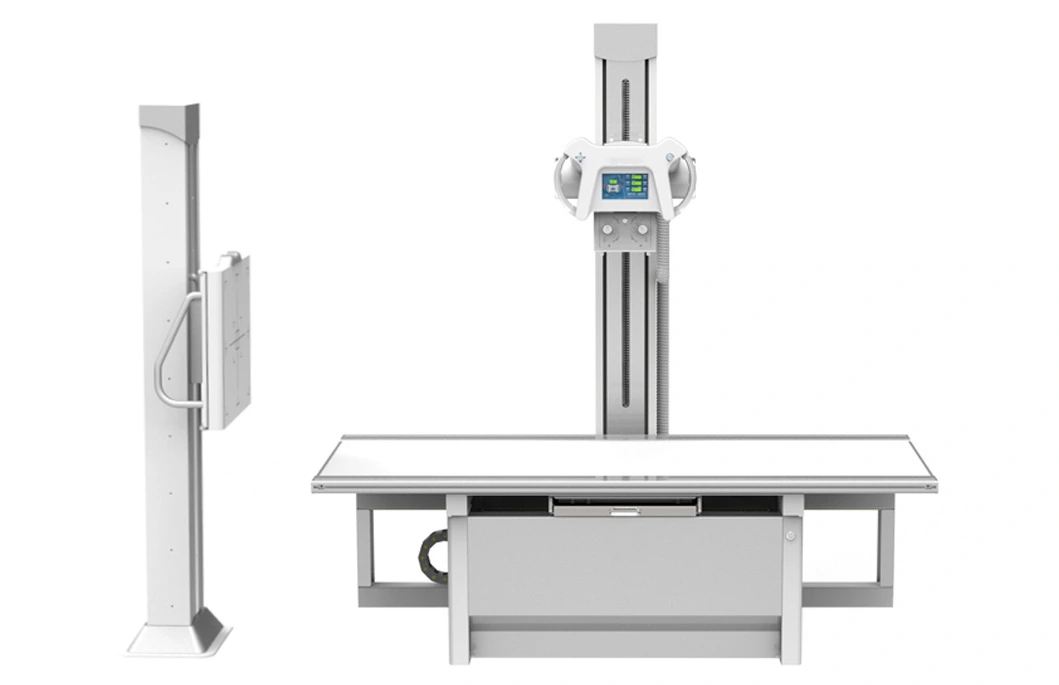

High Frequency 50KW 630mA Digital X-Ray Machine
- Place of Origin: Jiangsu,China
- Brand Name: Healicom
- Model Number: HX50R-A
- Power Source: Electricity
- Warranty: 1 Year
- Material: Metal, Plastic, Steel
- Quality Certification: ce
- Output Power: 50KW
- Power Voltage: 380V±38V
- mA range: 10~630mA
Call for details 01842-756014
630ma/50kw Digital X-Ray Machine
https://youtu.be/wfXKA3O4ZPI
High Frequency 50KW 630mA X-ray Radiography Machine
Application

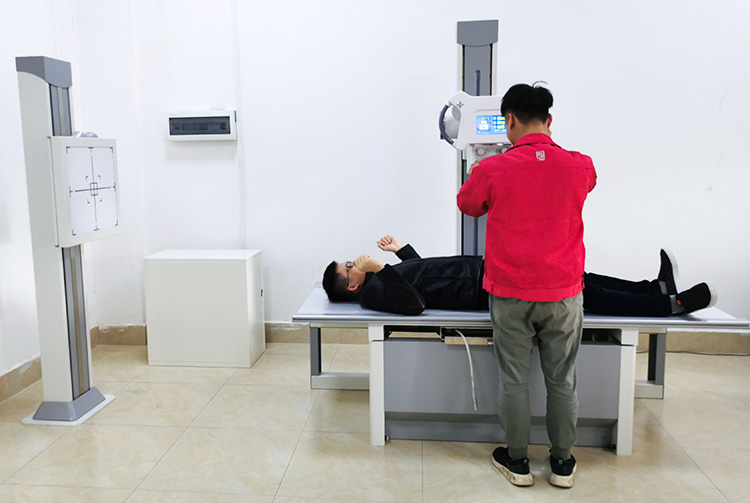

Applicable to orthopedics, emergency room, operating room, etc.

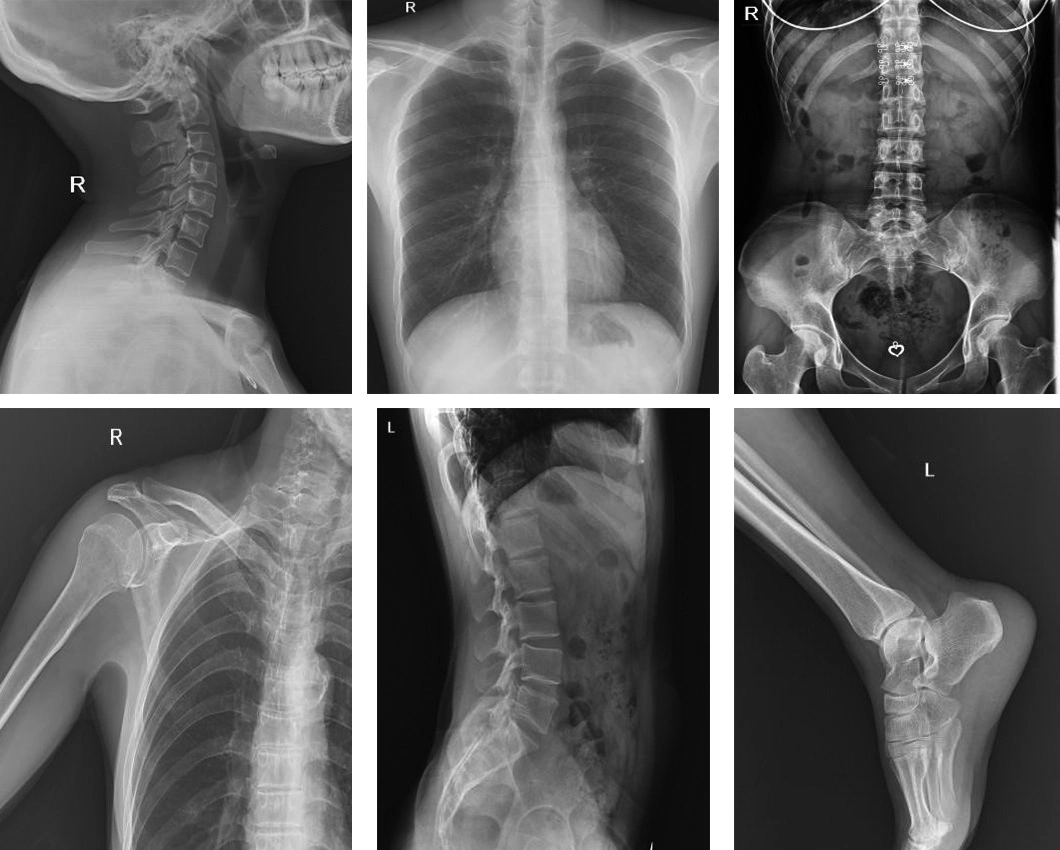

As human head, limbs, chest, spine, lumbar spine for medical diagnosis
Features

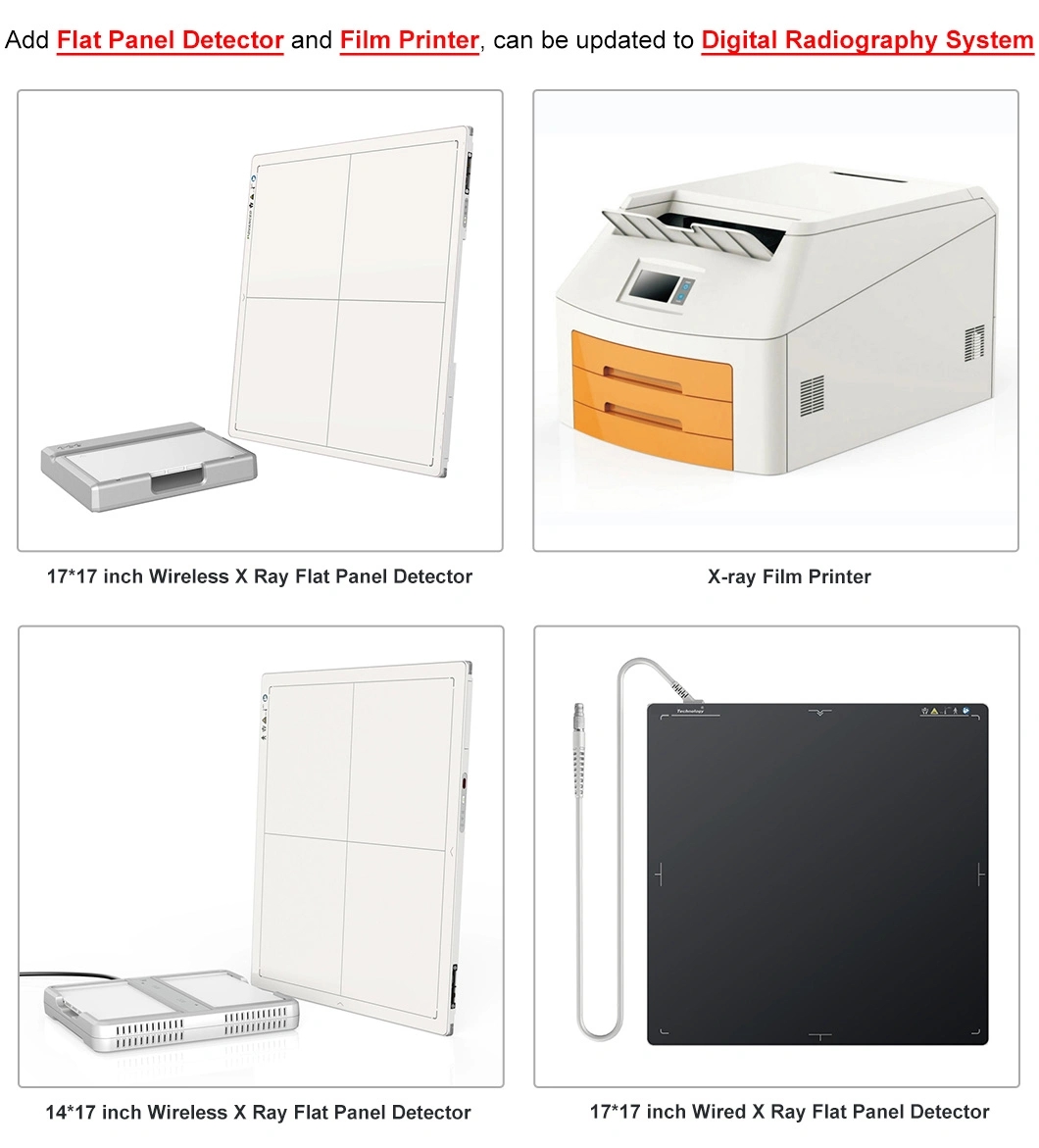

1. Rich DR upgrade reserve interface
2. Fault self-diagnosis and protection
3. Automatic calibration of tube current
4. X-ray tube has the function of filament dormancy
5. AEC function, different ionization chamber as optional
6. Analog – digital double – loop control, simple operation, high intelligence
7. High kV, high current, high power,strong penetration,able to handle obese patients
|
Technical Specifications
|
|
|
X-ray generator (include console)
|
|
|
Output Power
|
50KW
|
|
Power Voltage
|
380V±38V
|
|
kV range
|
40~150kV
|
|
mA range
|
10~630mA
|
|
mAs range
|
0.1 ~630mAs
|
|
Exposure time
|
0.002~6.3S
|
|

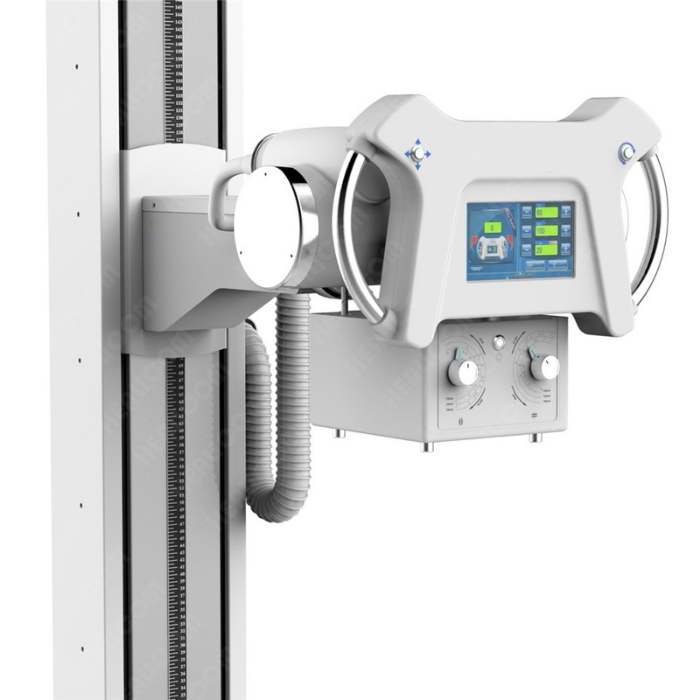

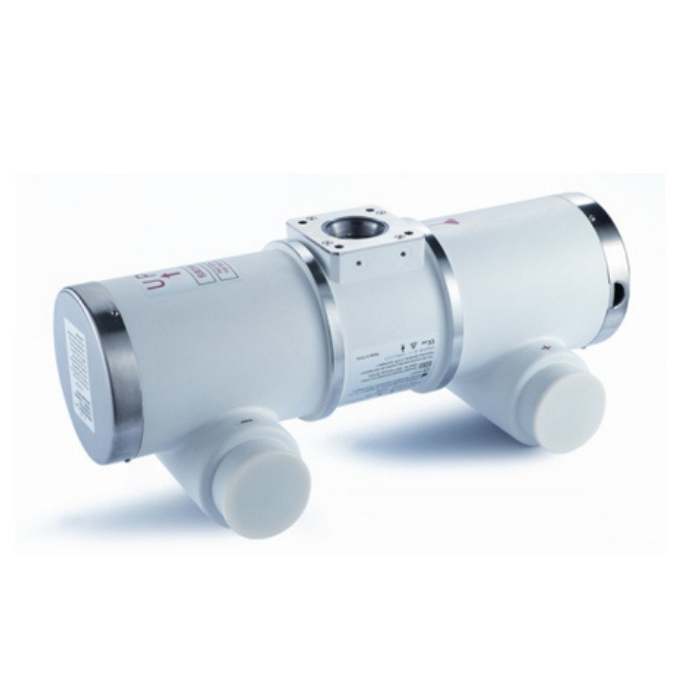

X-ray tube
|
|
|
Anode Heat Storage Capacity
|
240kHU
|
|
Small focus
|
0.6
|
|
Large focus
|
1.2
|
|
Anode speed
|
3000r/min
|
|
Collimator
|
|
|
Inherent filtration
|
1.0mm Al /75kV
|
|
Light Source
|
LED
|
|
Radiographic Table
|
|
|
Top Table Size
|
2100X800X650mm
|
|
Bucky Size
|
18X18inch
|
|
Table longitudinal movement
|
≥900mm
|
|
Cassette Movement Distance
|
≥500mm
|
|
Vertical Chest stand
|
|
|
Vertical moving range
|
≥1200mm
|
|
Bucky Size
|
18X18inch
|
|
Double Grid
|
|
|
Size
|
18X18inch
|
|
Ratio
|
1:1
|
|
F.D.
|
100cm
|
|
Density
|
40 L/cm
|
