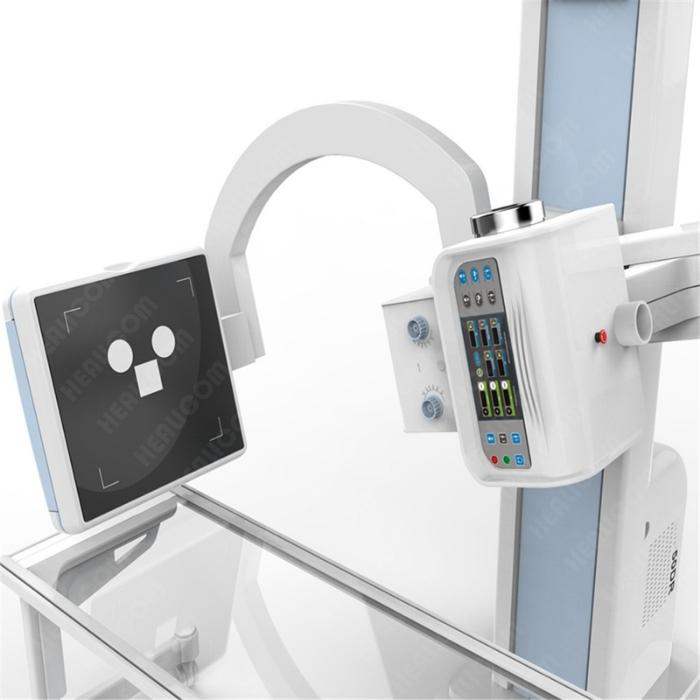

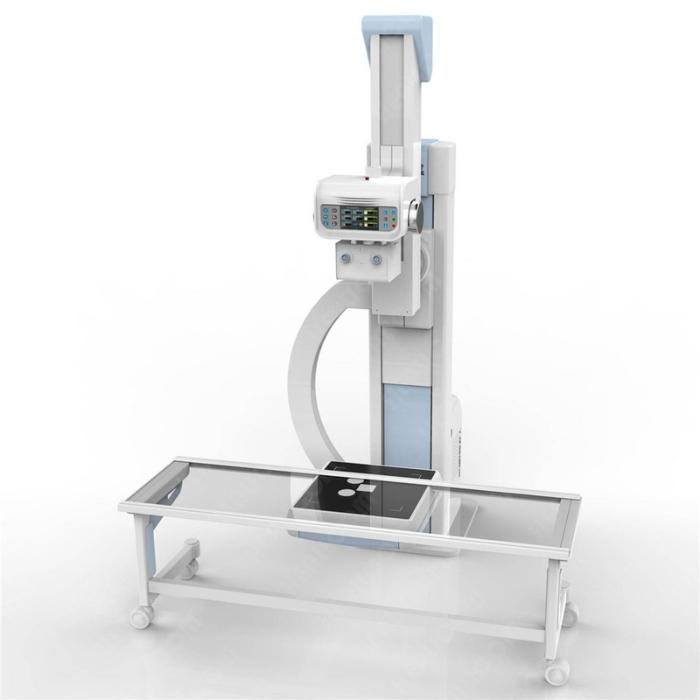

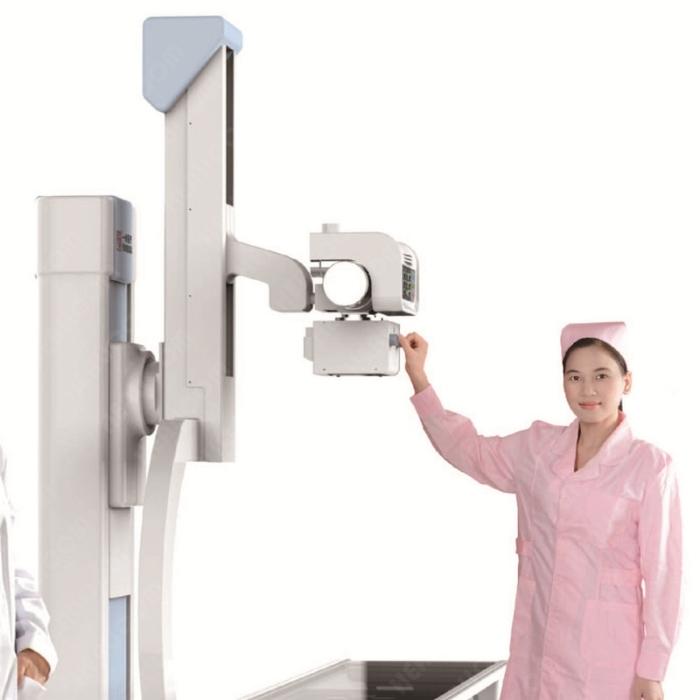

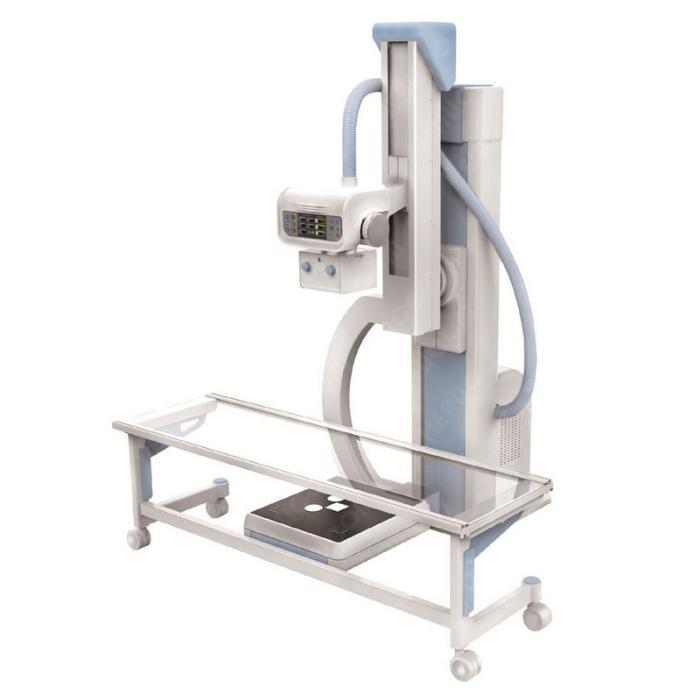

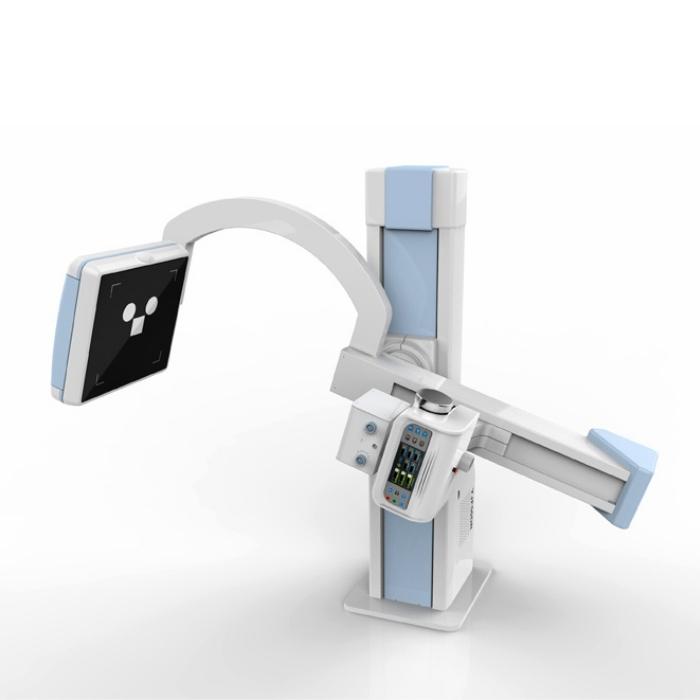

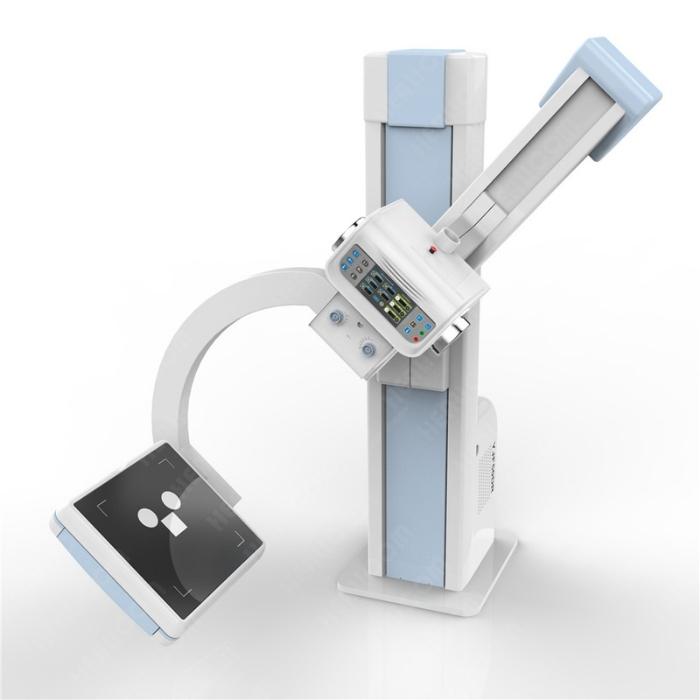

HDR50-U 50KW U-arm Digital Radiography X Ray Machine
 Manual |
Features
- Fault self-diagnosis and protection
- Automatic calibration of tube current
- X-ray tube has the function of filament dormancy
- AEC function, different ionization chamber as optional
- Analog – digital double – loop control, simple operation, high intelligence
- High kV, high current, high power, strong penetration, able to handle obese patients
Technical Specifications | ||
X-ray Generator | Output Power | 50KW |
Power Voltage | 380V±38V | |
kV range | 40~150kV | |
mA range | 10~630mA | |
mAs range | 0.1 ~630mAs | |
Exposure time | 0.002~6.3S | |
X-ray Tube | Small focus | 0.6 |
Large focus | 1.2 | |
Collimator | Inherent filtration | 1.0mm Al /75kV |
Light Source | LED | |
Radiographic Table | Top Table Size | 2020mmX690mmX680mm |
Load-bearing | Less than 200kg | |
Movement | Wheels | |
DR Machine Frame | Up&Down Moving Range | 700mm ~ 1700mm |
Rotating Range | 0°~ 105° | |
SID | 1000mm ~ 1800mm | |
Wire Flat Panel Detector | Size | 17X17inch |
Scintillator | CSI | |
Pixels | 3072*3072 | |
Resolution | 3.6 | |
AD Conversion | 16 | |
Computer& LCD | CPU | ≥2.8GHz |
Memory | ≥4GB | |
Disk Capacity | ≥1T | |
≥1T | 23inch | |
