Healicom FCA261 Fully Automated Biochemistry Analyzer

Healicom FCA261 Fully Automated Biochemistry Analyzer

৳ 780,000.00

Type: Biochemical Analysis System
Brand Name: Healicom
Model Number: FCA261
Place of Origin: Jiangsu, China
Instrument classification: Class II
Warranty: 1 Year
After-sale Service: Online technical support

Call for detail: 01842-756014

Categories: Biochemistry Analyzer, Medical Equipment

Description
Reviews (0)

Healicom FCA261 Fully Automated Biochemistry Analyzer

Quick Details

Type: Biochemical Analysis System
Brand Name: Healicom
Model Number: FCA261
Place of Origin: Jiangsu, China
Instrument classification: Class II
Warranty: 1 Year
After-sale Service: Online technical support
Analytical system: Random access with direct reading system
Assay Item: 40 assay items (80 optional)
Sample Volume: 1-100uL, 0.1uL/step
Reagent Position: 40 positions (80 optional)
Wavelength: 340-810nm

Products Description

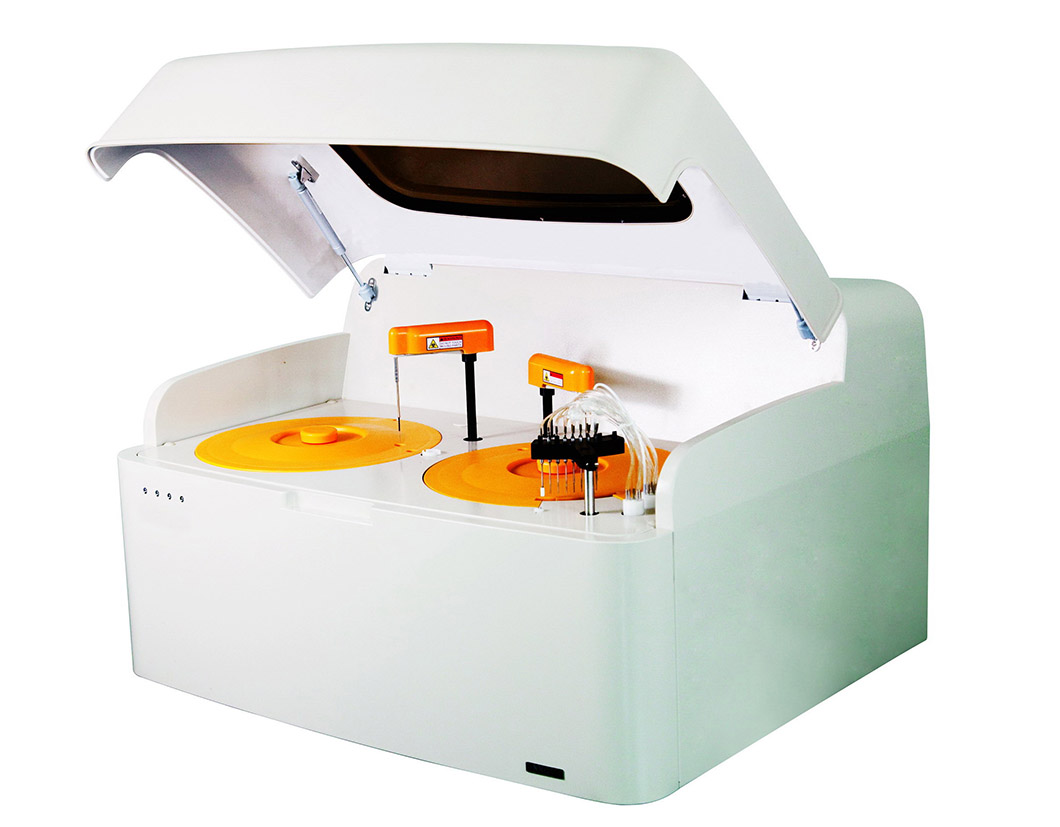

FCA261 Clinical Fully Automated Biochemistry Chemistry Analyzer

Features ● Random access and direct reading system ● New concept and more friendly software ● Automatic washing station for both sample and reagent probe ● Liquid level detection, collision protection for sample / reagent probe. ● Reliable cooling system for reagent chamber ● 8 channels automatic cuvette washing system ● Perfect self-checking and alarm function ● Bar code reader and ISE Module available on request ● Designed with environmental protection concept

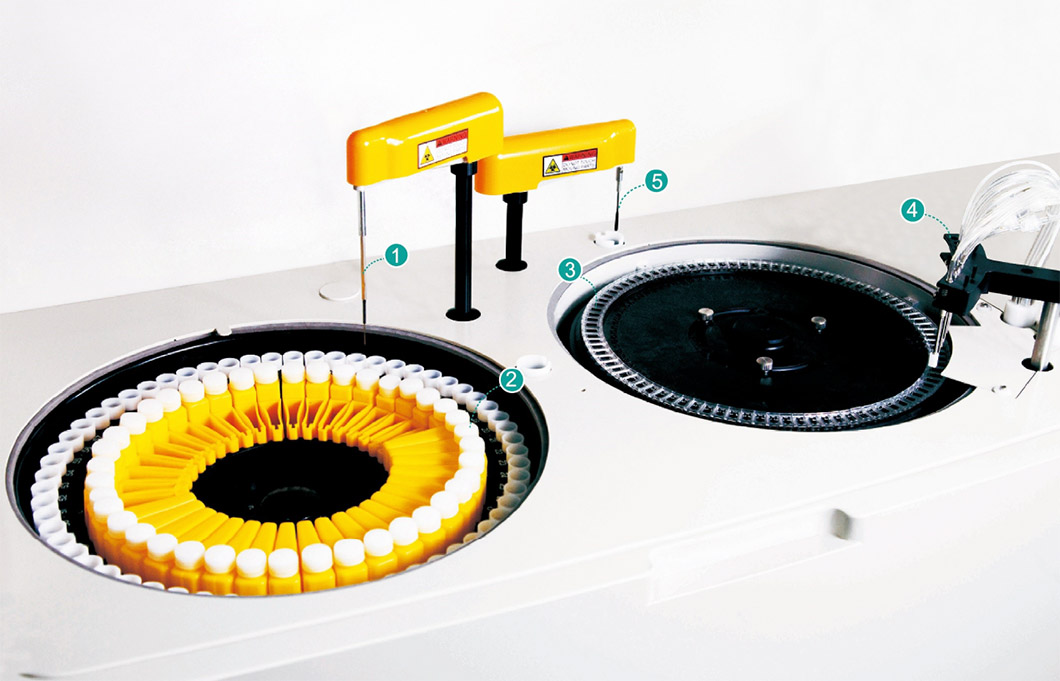

1. Sample/Reagent Probe Sample/reagent probe with liquid sensor, anti-collision sensor and automatic washing function

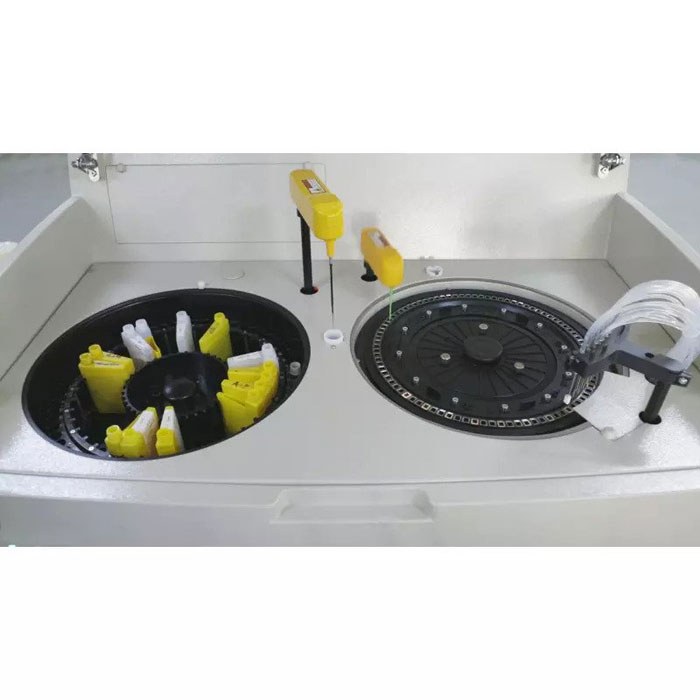

2. Sample/Reagent Disk 40 positions (80 positions optional); 24-hour continuous refrigeration system with independent switch; 60 sample positions, available to use serum cup or blood tube

3. Cuvettes High quality UV-transmitted plastic cuvettes, quartz glass cuvettes optional

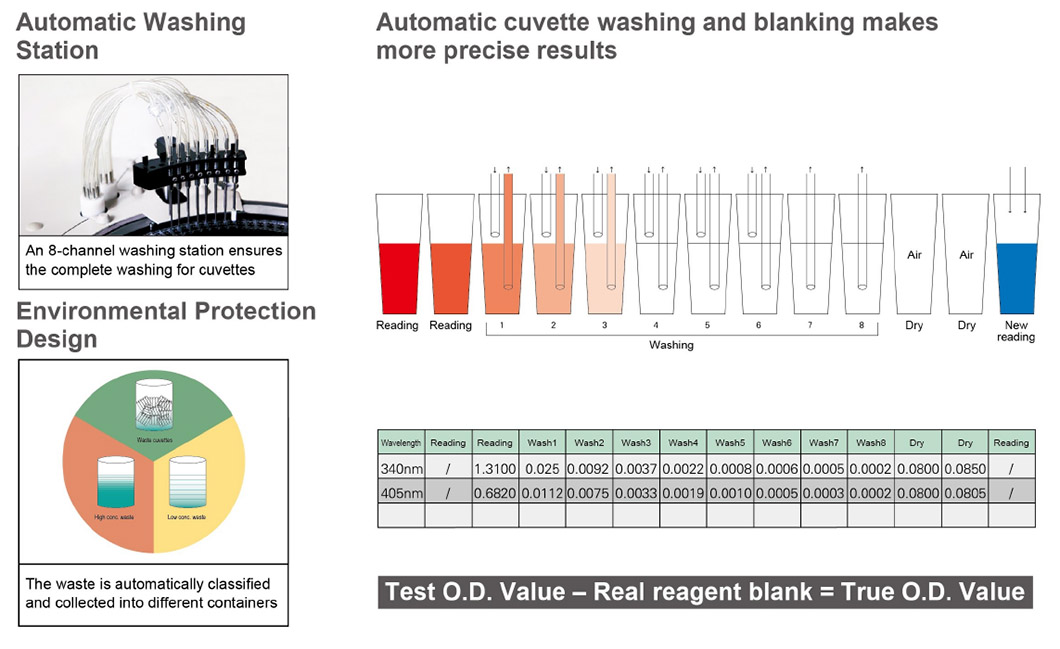

4. 8 channels automatic washing system Eight channels washing station for each cuvette, automatic record and deduct cuvette blank value

5. Independent mixer ensuring full reaction of sample/reagent position

Technical Specifications

Analytical System	Random access with direct reading system
Method	End point, Kinetic, Fixed time, Immunoturbidimetric, 1-2 reagent, multistandard, reagent/serum blank, etc
Assay Item	40 assay items (80 optional)
Throughput	1 Reagent: 240 tests/h (max)
	2 Reagent: 150 tests/h (max)
	With ISE: 120 tests/h (optional)
Sample Position	60 postions
Sample Position	including standard, control stat; either serum cup or primary tube available
Sample Volume	1-100µL, 0.1µL/step
Reagent Position	40 positions (80 optional)
Reagent Volume	R1: 1µL-400µL, 0.1µL/step R2: 1µL-400µL, 0.1µL/step
Reagent/Sample Probe	With liquid level sensor, collision sensor, teflon coating and automatic washing
Reaction Time	0-999seconds
Cuvette	High quality UV-transmitted plastic cuvette, or quartz glass cuvette on request
Cuvette Time	8 channels automatic washing system for reaction cuvettes
Cuvette Time	Independent washing station for each sample/reagent probe and mixer
Alarm	Automatic alarm for malfuction (e.g: collision, reagent insufficiency, full waste container etc)
Calibration	Linear, Non-linear, Multi point, K factor
Sample Dilution/Retest	Sample can be diluted and retested if results are out of range or sample is insufficient
Wavelength	340-810nm
Light Source	Halogen lamp
Absorbance Resolution	0.0001A
Absorbance Accuracy	±0.0003A(0~2.5A)
Carry-over	≤0.1%
Quality Control	Levy jennings quality control program at 3 levels
Bar Code	Optional
Printer	Multiple report formats available
Language	English, French, Spanish, German, Russian, etc
System	Windows XP or 7
Power Supply	220V/50Hz, or 110V/60Hz
Dimension	85 x 72 x 53cm
Weight	85Kg
