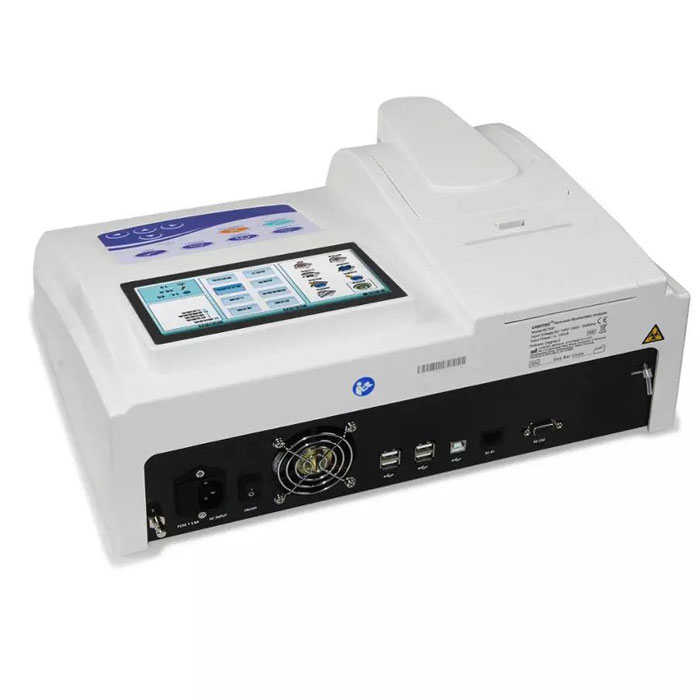

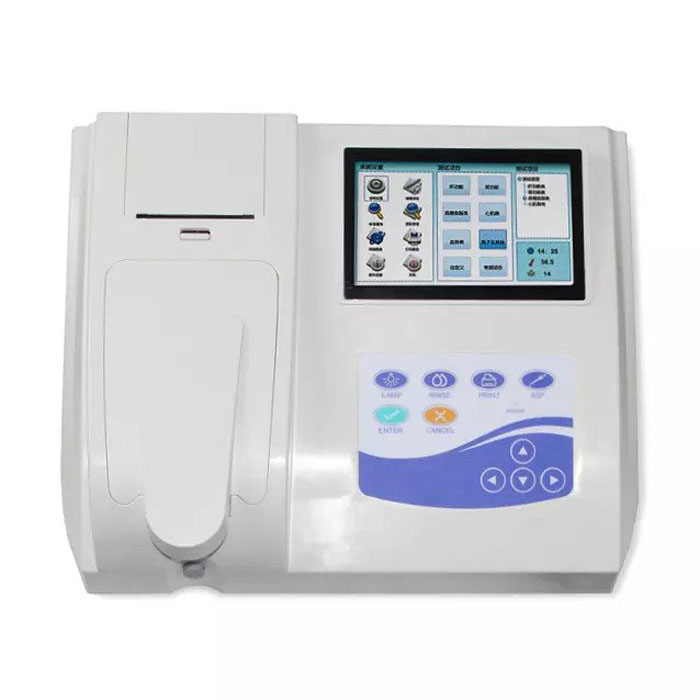

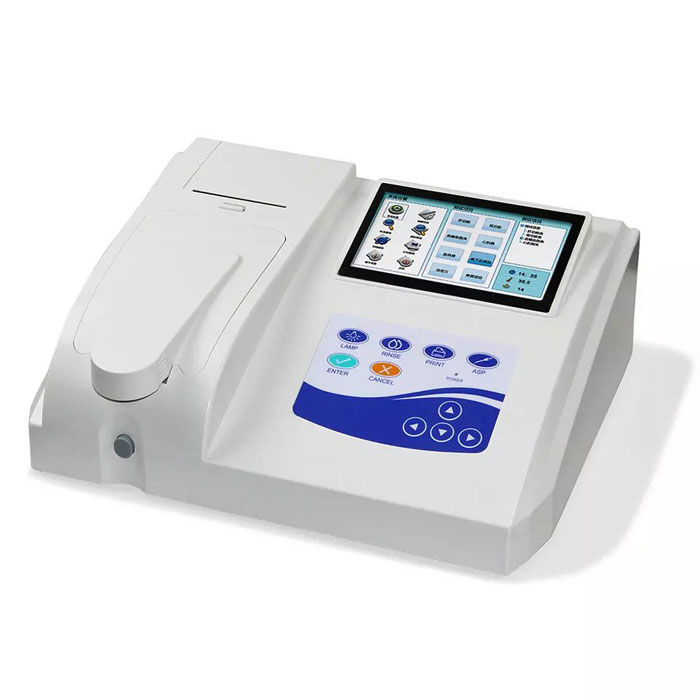

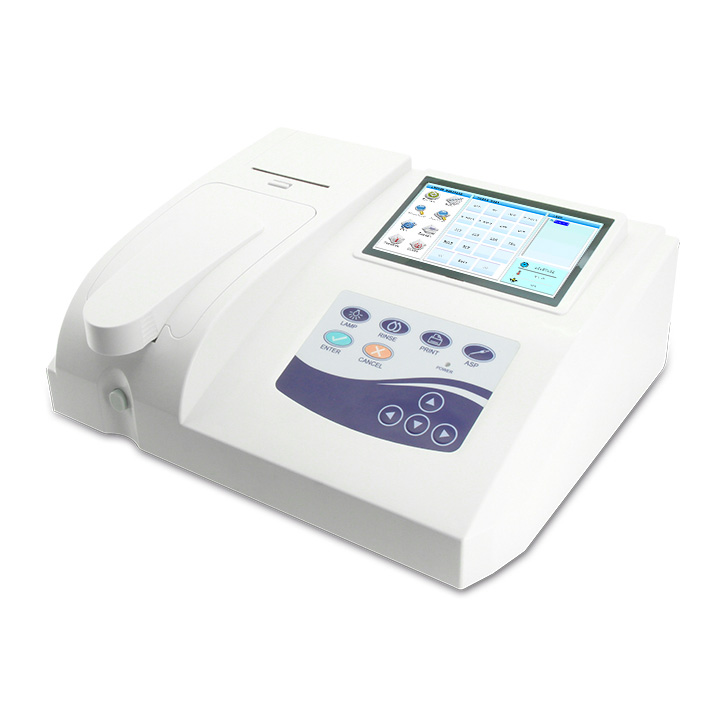

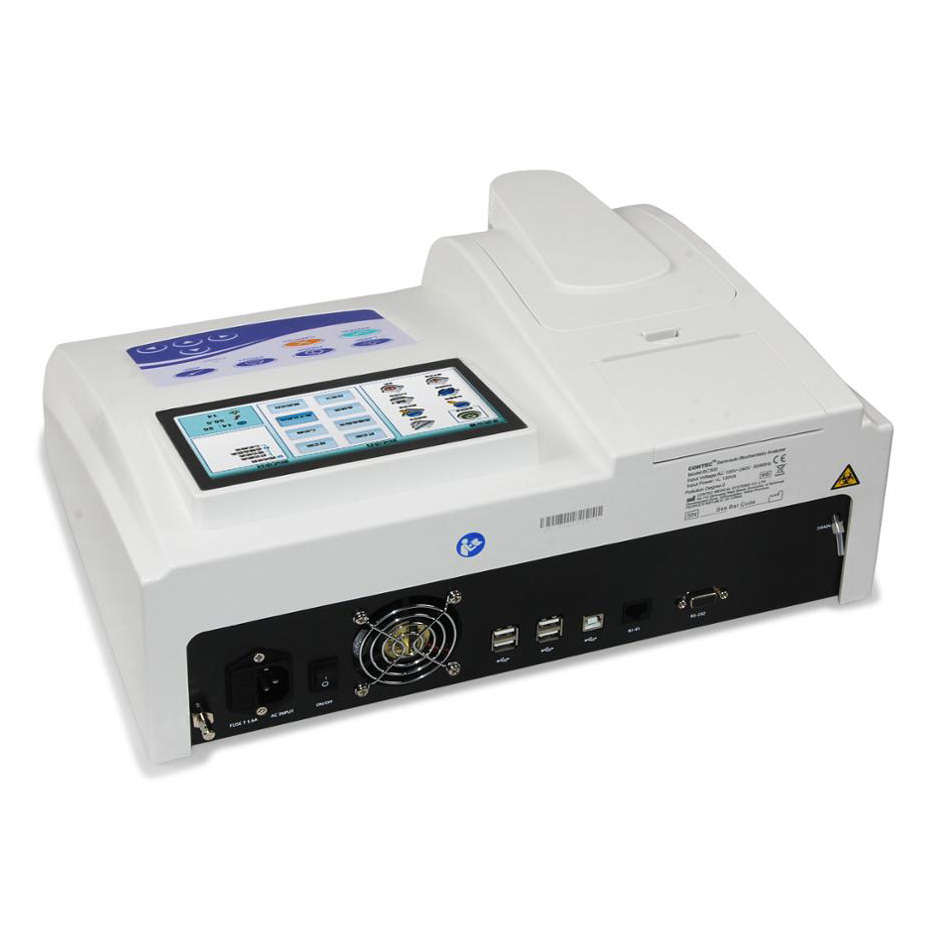

Healicom SCA3100 Semi auto Biochemistry Analyzer
Quick Details
- Type: Biochemical Analysis System
- Brand Name: Healicom
- Model Number: SCA3100
- Place of Origin: Jiangsu, China
- Instrument classification: Class II
- Warranty: 1 Year
- After-sale Service: Online technical support
- Absorbency range: -0.3-3.0Abs
- Light source: Halogen lamp
- Stability: ≤0.005A/30min
- Half-bandwidth: ≤12 nm
- Temperature accuracy: ±0.1℃
- Colorimetric cell: 30μl quartz flow cell
- Injection: 0~6000ul
- Cross Contamination: ≤1.0%
- Display: 7 color LCD
- Dimension: 410(L)X340(W)X150(H)mm
Products Description-
![Healicom SCA3100 Semi auto Biochemistry Analyzer 10 H1c847c89872f4efba10c93fdbd4d44f4P](http://s.alicdn.com/@sc04/kf/H1c847c89872f4efba10c93fdbd4d44f4P/200550024/H1c847c89872f4efba10c93fdbd4d44f4P.jpg?quality=close)
Introduction The Semi-auto Biochemistry Analyzer measures biochemical indexes by analyzing blood and other body fluid, then combines with other clinical information, to help diagnose disease, evaluate organs function, identify disease gene and determine the norm for future therapy. Features • Based on the Linux operating system, color graphical interfaces, large and color LCD. • Operating with touch screen, function keys and external USB mouse or keyboard, which is simple and fast. • Multiple measurement methods (End point, Two-point, kinetics, double wavelength) are optional, and multiple calculation methods (factor, linear regression, nonlinear regression, etc.) are also optional. • Store 500 test items and 10000 test results; supply many methods of printing and many formats of report. • Each item can be set for two quality-control, automatically statistic and draw QC curve, store one year’s QC data and QC chart, also can query and print. • Auto-dormancy for the lamp to prolong its life. • Power-off protective function to automatically save measurement results. • Seft-check function for alarming to light route, liquid route and machine components, etc. • With standard interface for communication, convenient for data transmitting and processing.
Technical Specifications
Absorbency range
|
-0.3-3.0Abs
|
Resolution
|
0.001Abs(display),0.0001 Abs(inner calculation)
|
Light source
|
Halogen lamp
|
Wavelength
|
340,405,510,546,578,620nm 2 free positions
|
Stability
|
≤0.005A/30min
|
Half-bandwidth
|
≤12 nm
|
Temperature control
|
Room Temperature, 25℃, 30℃, 37℃
|
Temperature accuracy
|
±0.1℃
|
Colorimetric cell
|
30μl quartz flow cell
|
Injection
|
0~6000ul
|
Cross Contamination
|
≤1.0%
|
Storage
|
500 test items and 10000 test results.
|
Interface
|
Standard RS232 interface, 4 USB interfaces, Ethernet interface
|
Display
|
7″color LCD
|
Print
|
Built-in high-speed thermal printer, and connect external printer
|
Processor
|
Embedded high-speed processor
|
Weight
|
10kg
|
Dimension
|
410(L)×340(W)×150(H)mm
|
Power Supply
|
100~240VAC, 50HZ/60HZ
|
![Healicom SCA3100 Semi auto Biochemistry Analyzer 11 H5f93ddb60b794f118827e0f31d02bc5fi](http://s.alicdn.com/@sc04/kf/H5f93ddb60b794f118827e0f31d02bc5fi/200550024/H5f93ddb60b794f118827e0f31d02bc5fi.jpg?quality=close)
![Healicom SCA3100 Semi auto Biochemistry Analyzer 12 H62fb928f4b464eaeb905c154fdb4c3f2L](http://s.alicdn.com/@sc04/kf/H62fb928f4b464eaeb905c154fdb4c3f2L/200550024/H62fb928f4b464eaeb905c154fdb4c3f2L.jpg?quality=close)
![Healicom SCA3100 Semi auto Biochemistry Analyzer 13 Ha5ad2d3a768b4f739546d23e8d42949eV](http://s.alicdn.com/@sc04/kf/Ha5ad2d3a768b4f739546d23e8d42949eV/200550024/Ha5ad2d3a768b4f739546d23e8d42949eV.jpg?quality=close)
![Healicom SCA3100 Semi auto Biochemistry Analyzer 14 H01c026af84404e64befa05b1e0c71109R](http://s.alicdn.com/@sc04/kf/H01c026af84404e64befa05b1e0c71109R/200550024/H01c026af84404e64befa05b1e0c71109R.jpg?quality=close)
