Portable Surgical Diathermy Machine

৳ 310,000.00

Place of Origin: Jiangsu, China
Brand Name: Healicom
Model Number: HE-50A
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online technical support
Material: Metal

Call for details 01842-756014

Description
Reviews (0)

Portable Surgical Diathermy Machine

Quick Details

Place of Origin: Jiangsu, China
Brand Name: Healicom
Model Number: HE-50A
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online technical support
Material: Metal
Shelf Life: 1years
Quality Certification: ce
Instrument classification: Class III
Safety standard: GB/T18830-2009

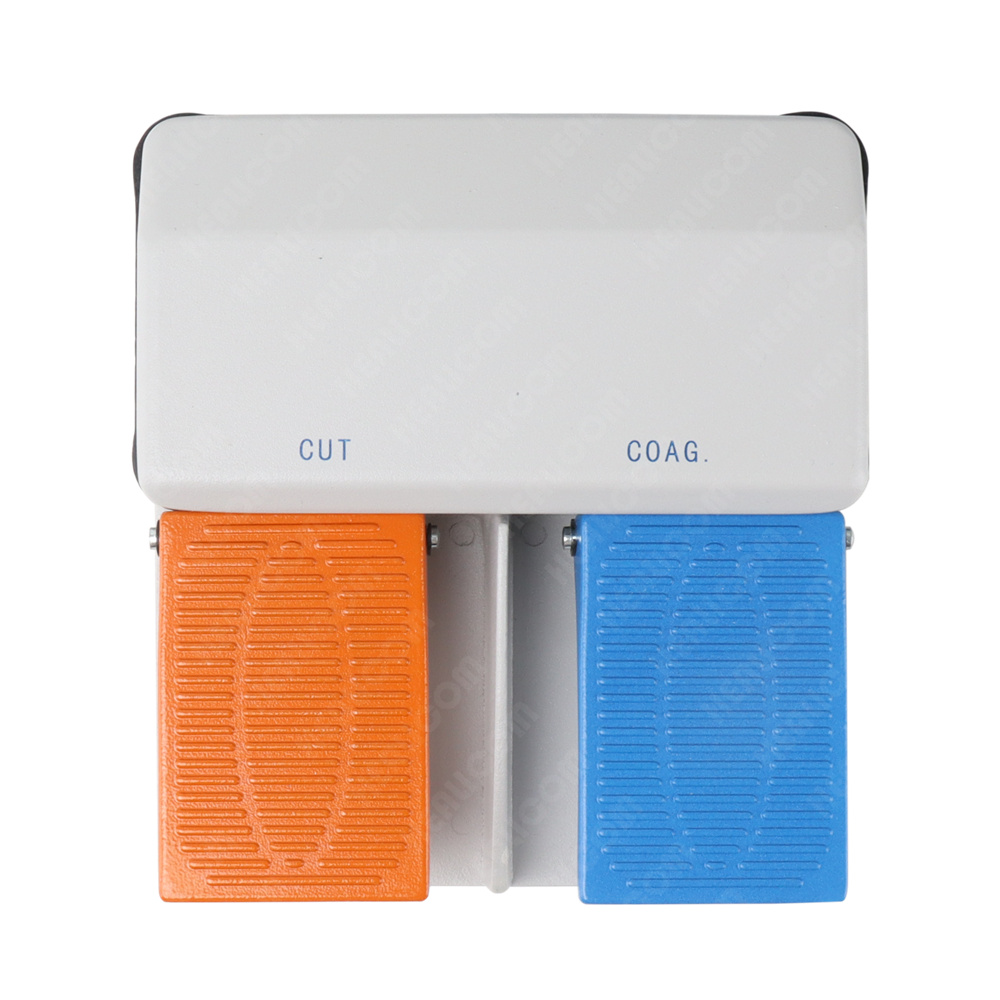

Monopolar electrode: hand or foot-control
Bipolar electrode: automatic and foot control
Application: general surgery, orthopedic surgery, chest surgery etc
Pure Rated Power: 350W
Pure Rated Load: 500Ω
Coagulation Rated Power: 200W
Coagulation Rated Load: 500Ω

Products Description

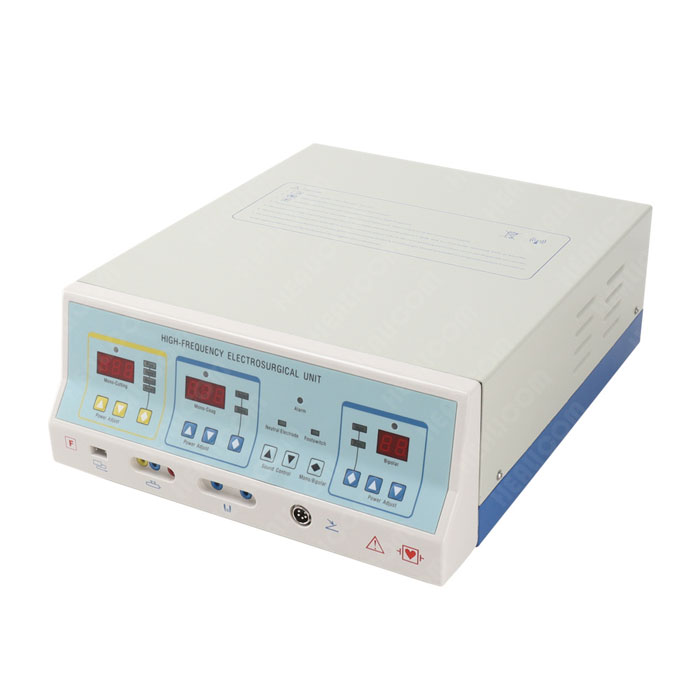

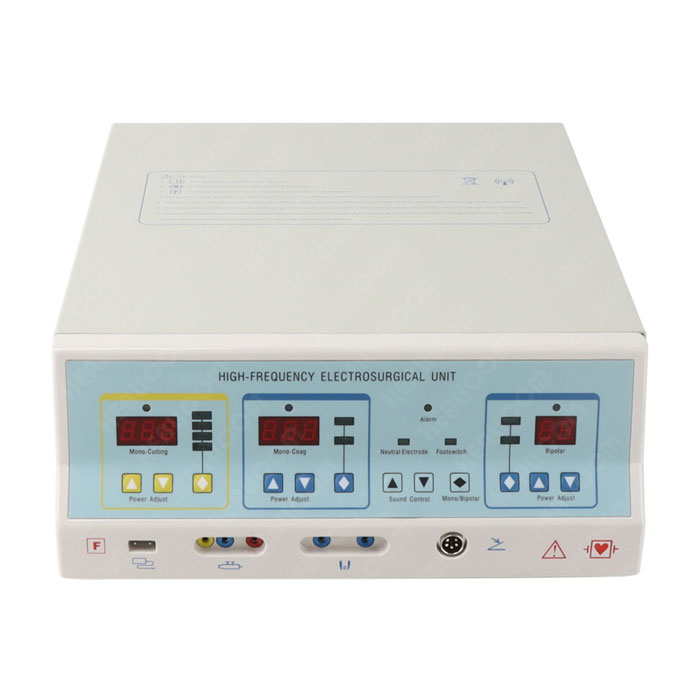

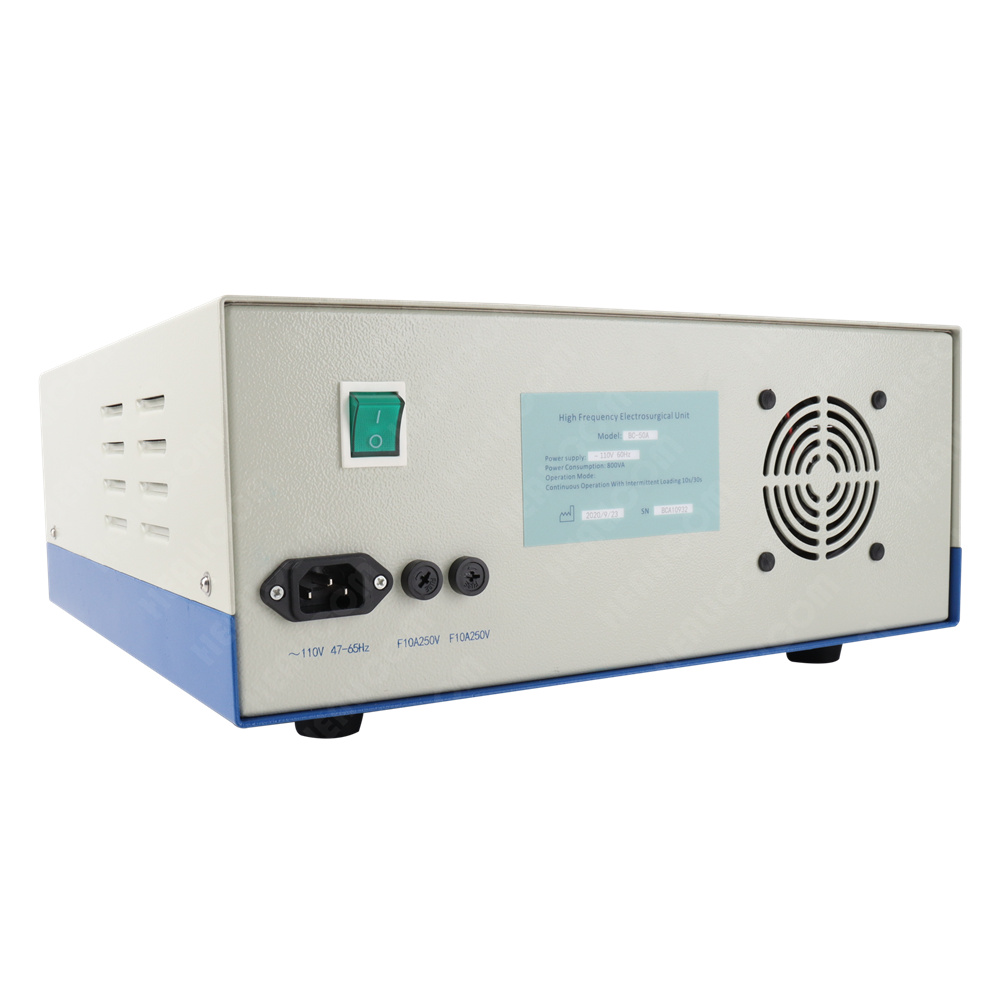

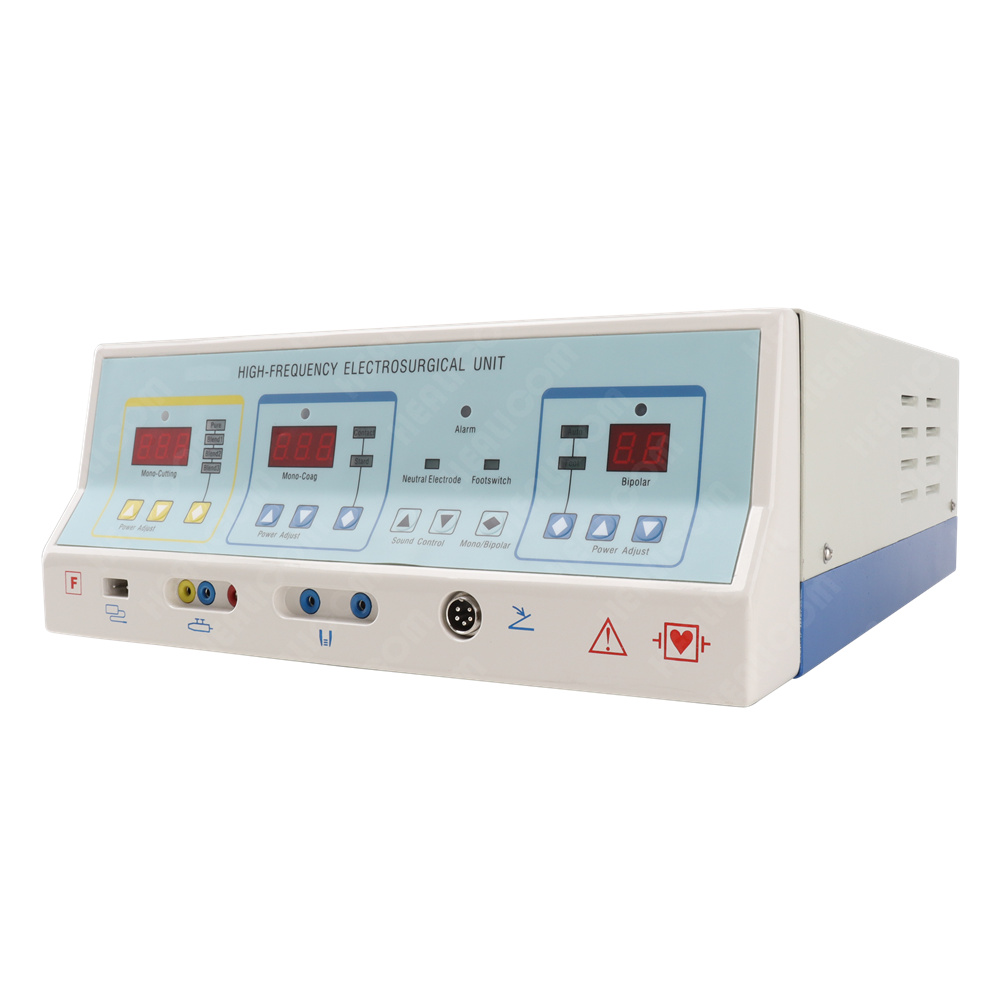

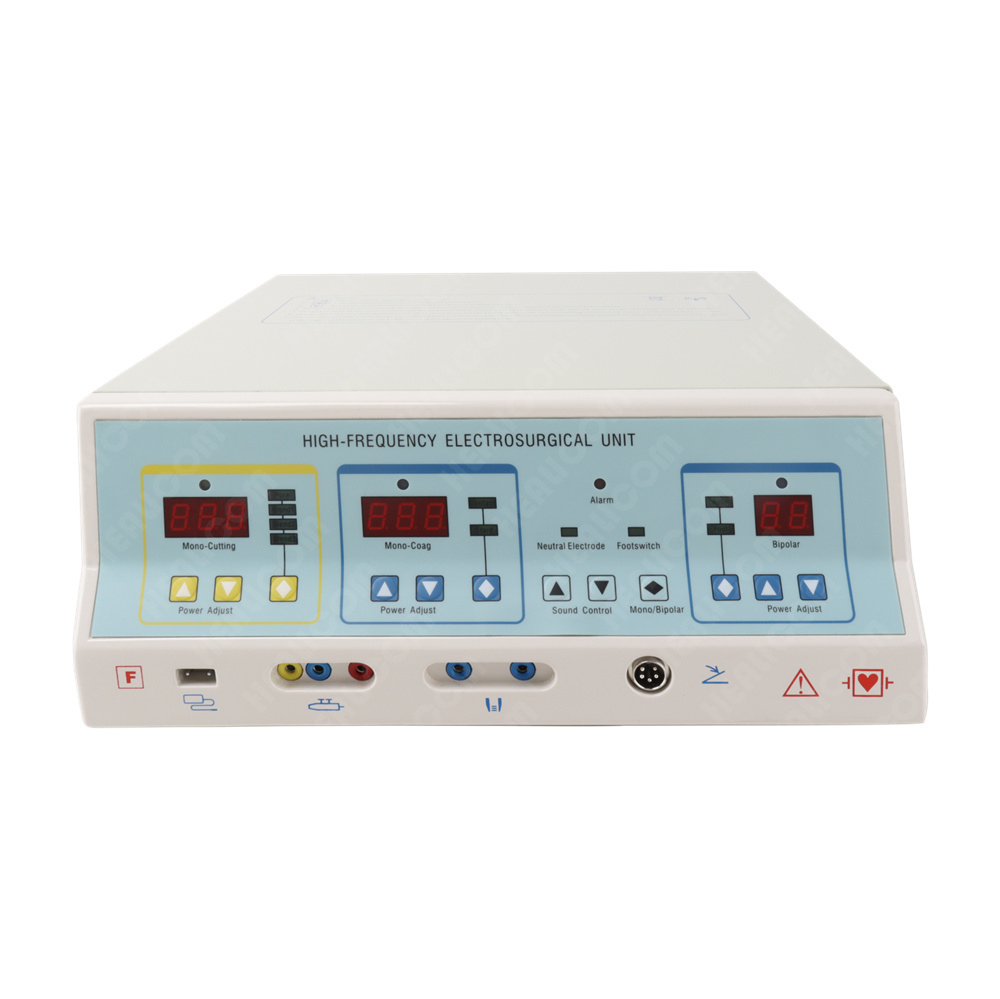

HE-50A Portable High Frequency Electrosurgical Unit

It has the features including: pure cutting, blend 1, blend 2, blend 3, monopolar contact coagulation, monopolar standard coagulation and bipolar standard coagulation. while monopolar electrode can be hand and foot controlled, bipolar electrode is controlled automatically and by foot. The unit can automatically switch between monopolar and bipolar. The output power of the unit is digital displayed and its sound level can be adjusted. The malfunction of the unit can be self diagnosed by the system, and error code will be displayed with visual and audio alarm. NE CONTINUITY MONITOR of the system which intended for connection to an NE (single plate), can provide an alarm in the event of electrical discontinuity in the NE cable or its connection. As well neutral electrode contact quality monitor (CQM)which intended for connection to a MONITORING NE (split plates) can provide an alarm in the event that NE connecting with the patient becomes insufficient. This unit can be used together with the endoscope to perform endoscopic surgery. It is intended for general surgery, orthopedic surgery, chest surgery, cardiovascular surgery, gynecology, urology, tumor, gastroenterology, neurology and so on.

Technical Specifications
Surgical mode	Cutting				Coagulation		Bipolar
Surgical mode	Pure	Blend 1	Blend 2	Blend 3	Coag	Bipo	Bipo
Rated Power	350W	250W	200W	200W	200W	200W	70W
Rated Load	500Ω	500Ω	500Ω	500Ω	500Ω	500Ω	150Ω
