Monopolar Bipolar High Frequency Electro Surgical Cautery Machine

৳ 190,000.00

Place of Origin: Jiangsu, China
Brand Name: Healicom
Model Number: HE-50F
Power Source: Electric
Warranty: 1 Year

Call for detail: 01842-756014

Categories: Medical Equipment, Shortwave Diathermy

Description
Reviews (0)

Monopolar Bipolar High Frequency Electro Surgical Cautery Machine

Quick Details

Place of Origin: Jiangsu, China
Brand Name: Healicom
Model Number: HE-350A
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online technical support
Material: Metal
Shelf Life: 1years
Quality Certification: ce
Instrument classification: Class II
Safety standard: GB/T18830-2009

Products Description

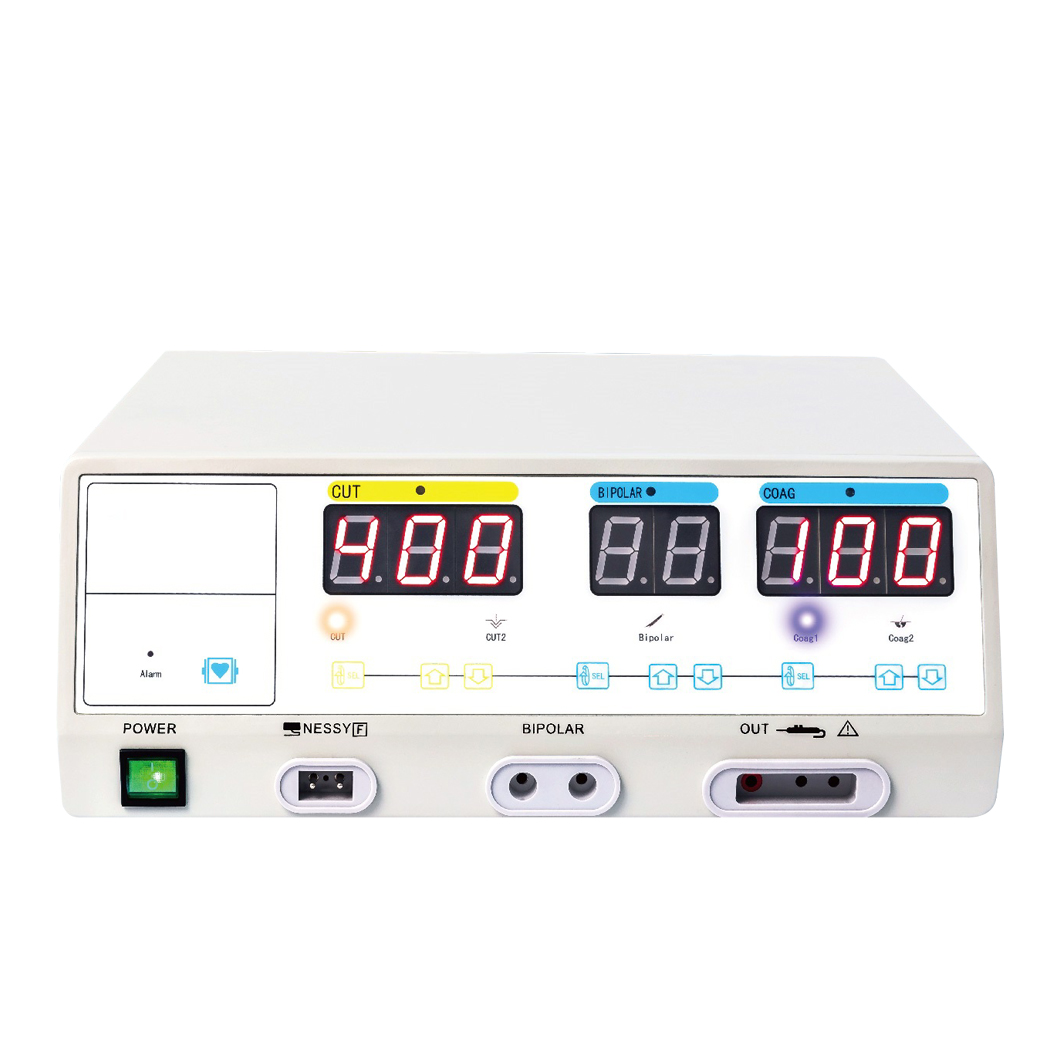

HE-350A High Frequency Electrosurgical Unit

Scope of Application
* It is suitable for various surgeries on cutting or coagulation, including general surgery, heart, gynecology, anorectal surgery, orthopedics, thoracic surgery, tumor, etc.
* It is also used with surgeries of endoscope, hysteroscope, laparoscope, ENT endoscope, etc. The bipolar can be used in the fine surgeries of microsurgery, neurology, ENT and ophthalmology, hand surgery, etc.

Five Working Modes
Mono Cut	Cutting: 400W	Blend: 150W
Mono Cog	Soft Cog: 10ow	Strong Cog: 80W
Bipolar	Bipolar Cog: 50W

Product Advantages · Independent output port of endoscope and intelligent conversion key, which can enter endoscopic mode automatically after start-up. · Microcomputer control system, power-off protection, and memory function of keeping last usage data after restart. · Automatic adjustment on output power. It can be adjusted automatically according to the change of density of tissue. Stable output power to keep the minimum wastage. · Automatic conversion on monopolar and bipolar. · Automatic monitoring of on-off, automatic detection and error prompt in work. · The monitoring circuit system on contact quality of neutral electrode can test and evaluate the safety and effect electrode plate and skin. The system can cut of output automatically and give an alarm, in case of finding that contact area is in dangerous level. It can test and use negative plate of monopolar or bipolar effectively. Operating panel with keys, high definition and large digital it has different sound and light indicators during operation. Waterproof operating keys easy to clean and maintain. · Independent three-way power output. This increases the convenience and security of operation. · It can be operated and performed well underwater even when dissecting and removal of fat tissue.

Technical Parameters
Ambient temperature range	10℃～40℃
Relative humidity range	30%～75%
Atmospheric pressure range	700hpa～1060hpa
Power supply	220V/110V,50Hz
Working frequency	360kHz～460kHz
Type of equipment	CF
The power consumption of the whole device is less than 1000VA.(Cutting function:400W)
