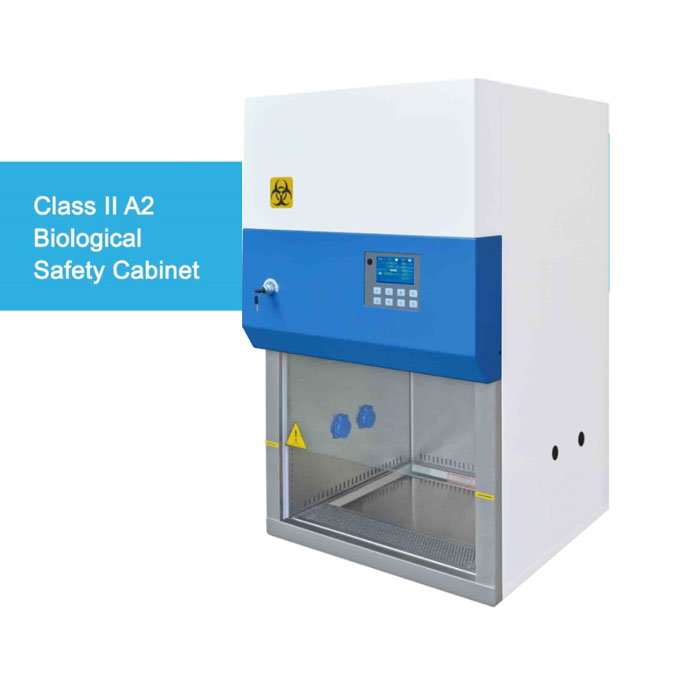

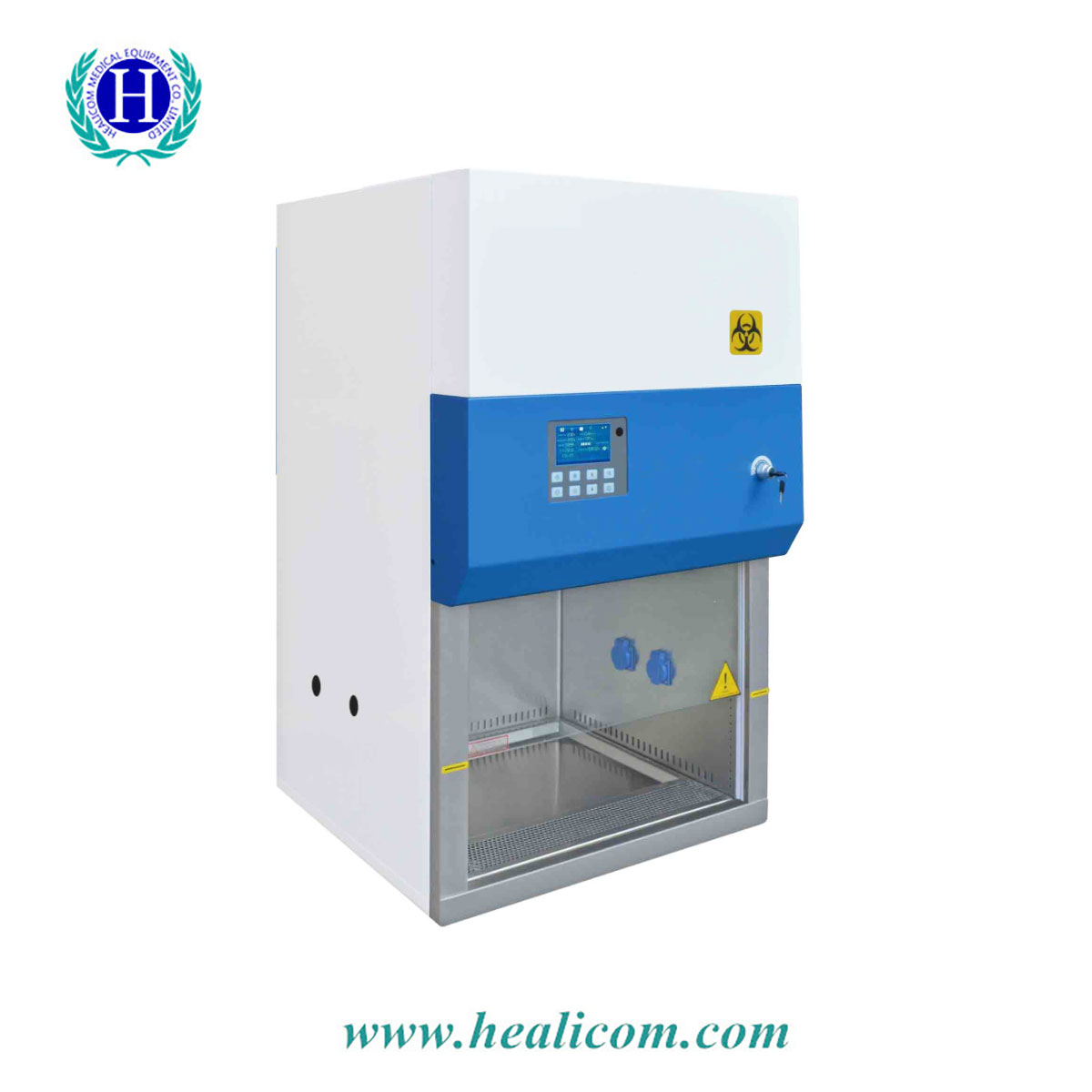

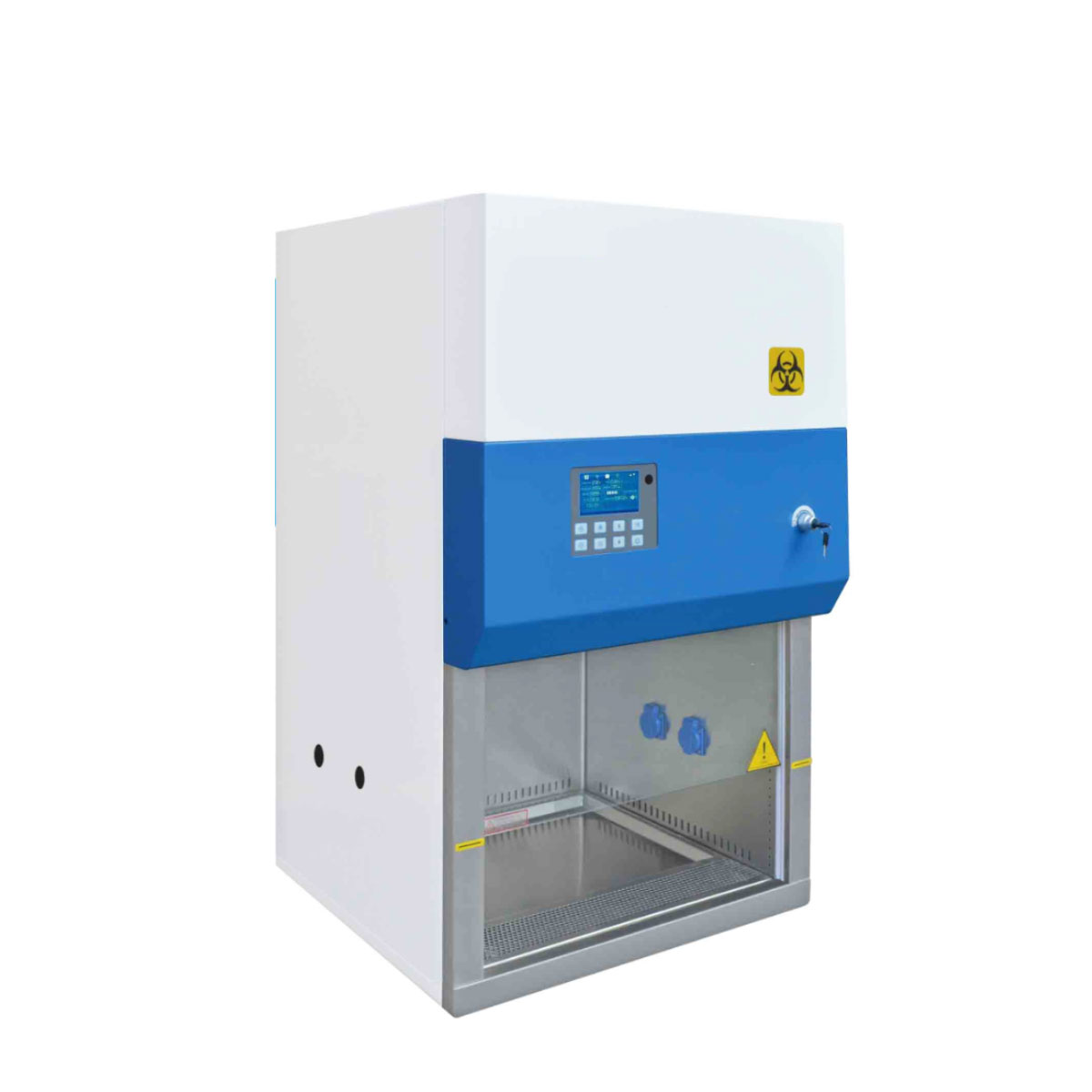

PCR Laboratory Class- A2 Biosafety Cabinet
Quick Details
- General Use: Commercial Furniture
- Type: Laboratory Furniture
- Mail packing: N
- Application: Hospital
- Design Style: Contemporary
- Material: Metal
- Metal Type: Iron
- Place of Origin: China
- Brand Name: Heaicom
- Model Number: Class II A2
- Product name: biological safety cabinet
- External Size(W*D*H): 700*650*1230mm
- lnternal Size(W*D*H): 700*650*1230mm
- Tested Opening: Safety height 200mm(8″)
- Max Opening: 370mm(15″‘)
- Inflow Velocity: 0.53 O.025m/s
- Down Flow Velocity: 0.33 0.025m/s
- LED Lamp: 8w*2
- lllumination: ≥1000Lux
- Consumption: 500w
Products Description
ADVANTAGE

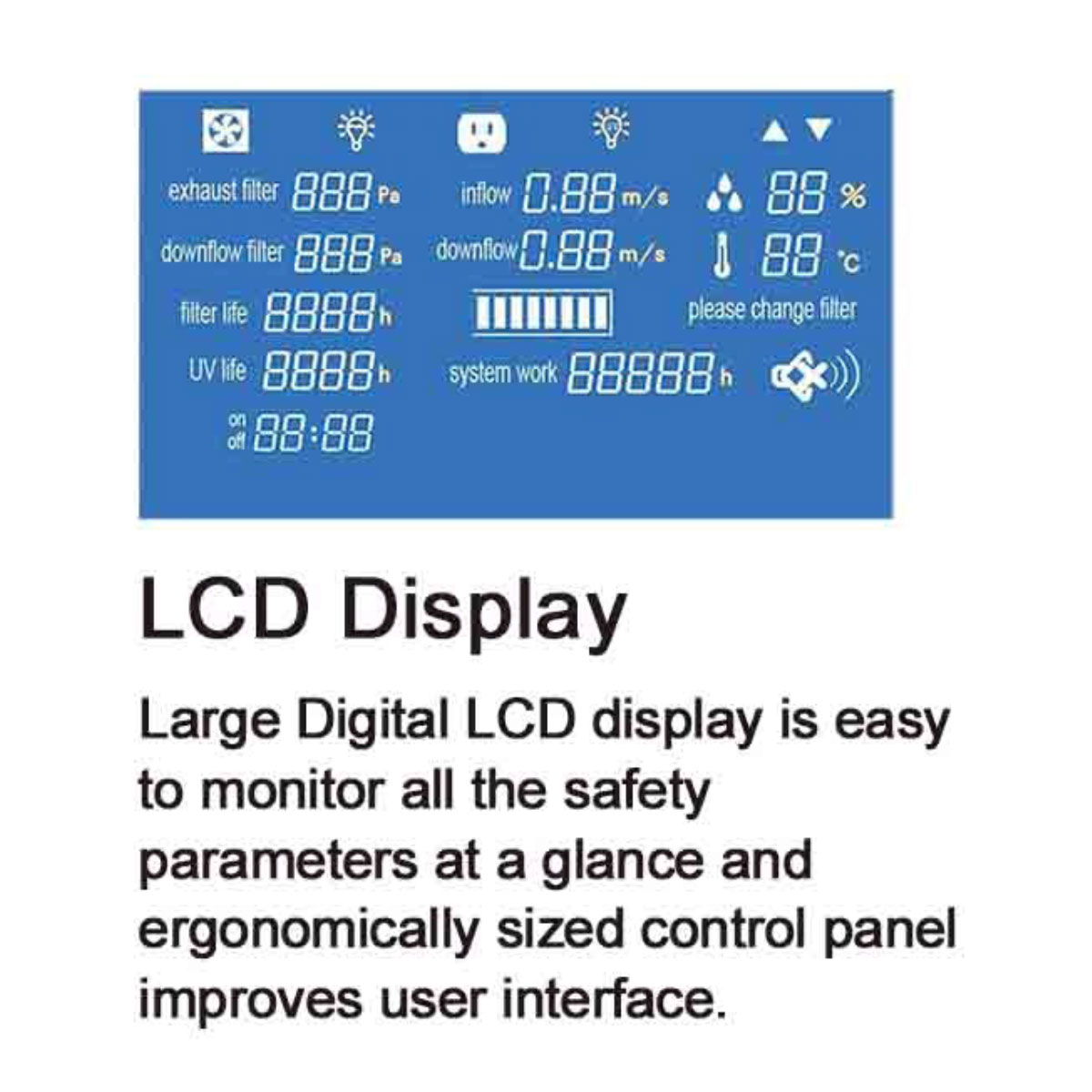

1.Small dimension, save space. 2.Centrifugal fan, speed adjustable; H14 HEPA filter. 3.Motorized front window: The front window is motorized for convenient, one-hand operation.4.Audio and visual alarm:Abnormal airflow velocity, Filter replacement, Front window at unsafe height. 5. Time reserve function: This can save 30 minutes waiting time after activating the cabinet and the sterlization timeafter experiment. 6.Remote control:Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency. 7.Large LCD display: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc. 8.With memory function in case of power-failure.
Product Paramenters
|
Model
|
11231 BBC 86
|
|
External Size(W*D*H)
lnternal Size(W*D*H) Tested Opening |
700*650*1230mm
600*500*540mm Safety height 200mm(8″) |
|
Max Opening
Inflow Velocity Down Flow Velocity |
370mm(15″‘)
0.53 O.025m/s 0.33 0.025m/s |
|
HEPA Filter
Front Window Noise |
Two, 99.995% efficiency at 0.3um. Filter life indicator
Motorized.Toughened glass.Anti UV. EN12469≤58dB / NSF49≤61dB15W*1 |
|
UV Lamp
|
15*1
UV timer, UV life indicator,emission of 253.7 nanometers for most efficient decontamination |
|
LED Lamp
lllumination Consumption Socket |
8w*2
≥1000Lux 500w Two, total load of two sockets: 500W |
|
Display
Control System |
LCD display
Microprocessor |
|
Airflow System
Visual and Audio Alarm |
70% air recirculation,30% air exhaust
Filter replacement, window over height,abnormal air flow velocity |
|
Material
|

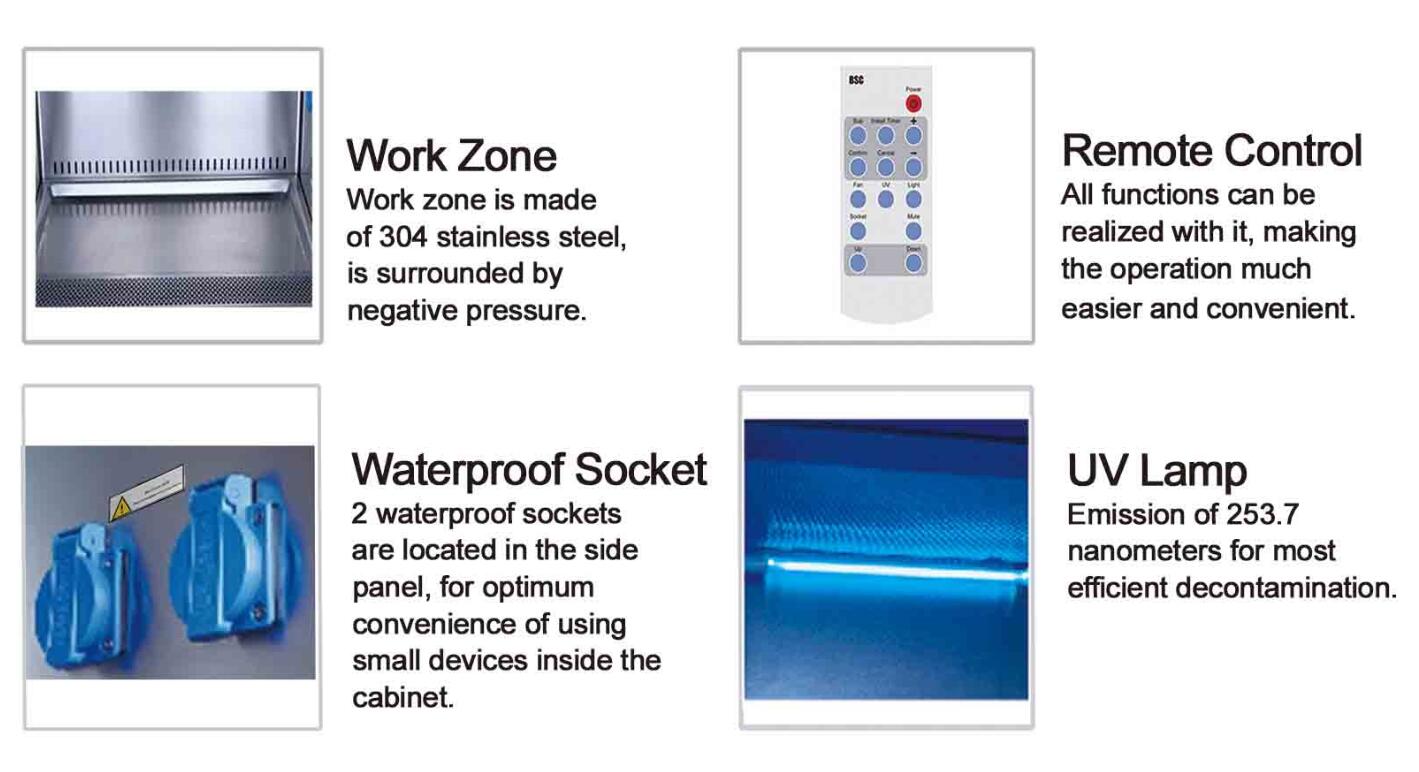

Work Zone: 304 stainless steel.
Main Body: Cold-rolled steel with anti-bacteria powder coating |
|
Work Surface Height
Power Supply |

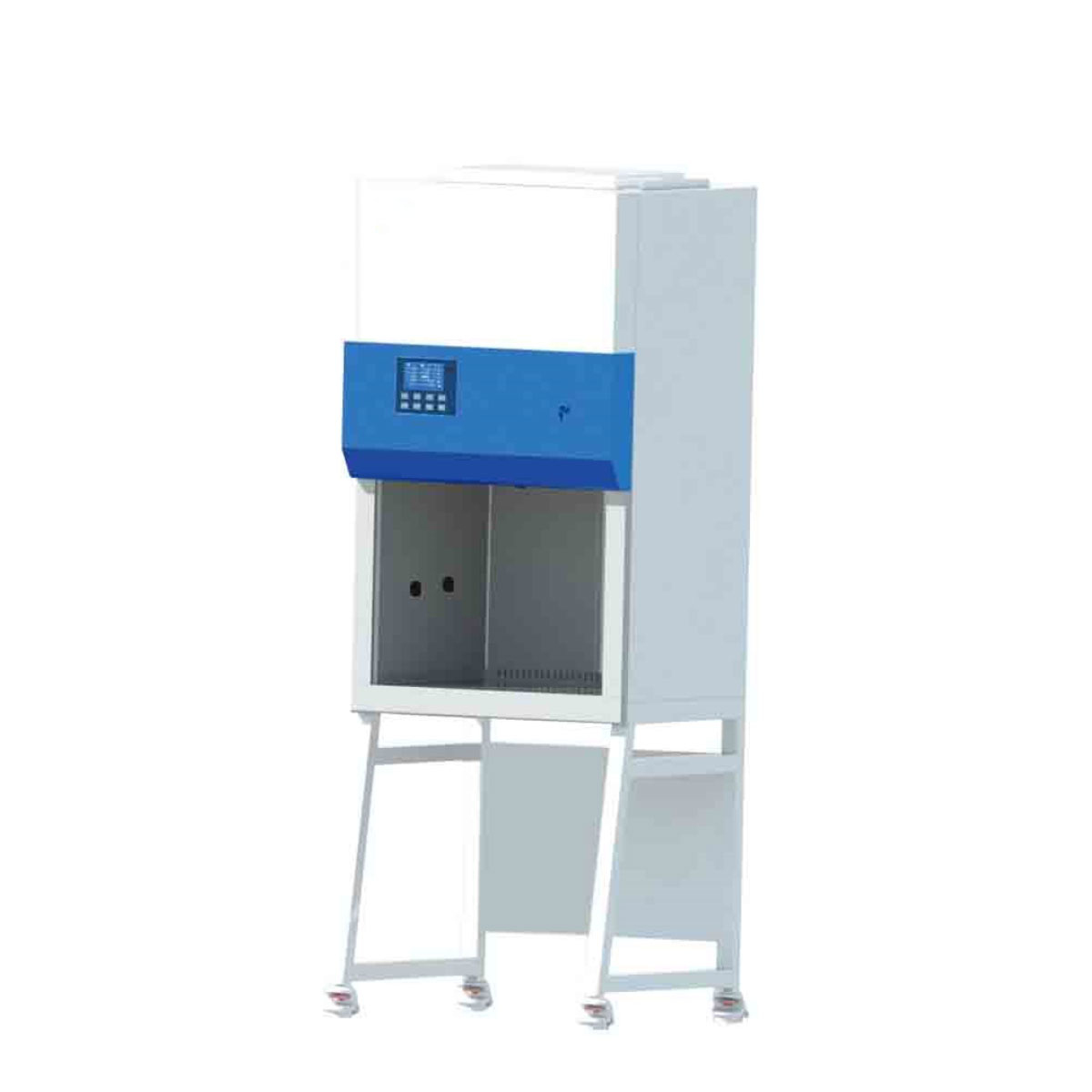

750mm with optional base stand
AC220V士10%,50/60Hz; 110V 10%,60Hz |
|
Standard Accessory
Optional Accessory |
LED lamp, UV lamp*2, Remote control, Waterproof sockets
Base stand, Universal caster with brake and leveling feet, SS Water tap*1, SS Gas tap*1 |
|
Gross Weight without
Base Stand |
Wooden Box: 164kg
Carton: 121kg |
|
Gross Weight with
Base Stand |
Gross Weight with
Wooden Box: 196kg Base Stand |
|
Package Size without
Base Stand (W*D*H) |
Wooden Box: 860*800*1450mm Carton: 820*760*1430
|
|
Package Size with
Base Stand (W*D*H) |
Wooden Box:860*960*1450mm
|
