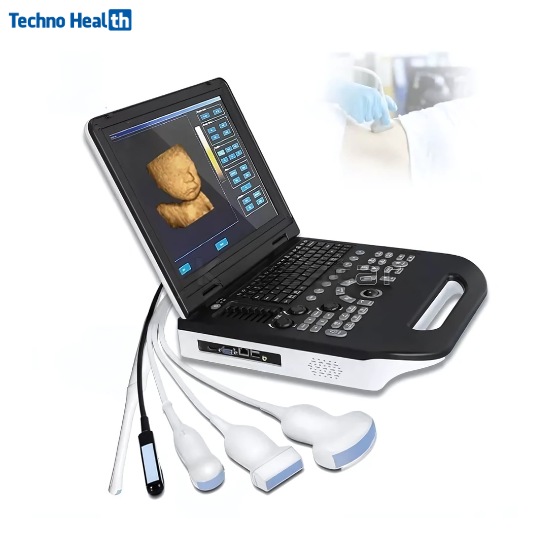

Karestar K-C506 3D/4D Portable Ultrasound Scanner

Karestar K-C506 Portable Ultrasound Scanner

The Karestar K-C506 is a high-performance 3D/4D portable ultrasound machine built for modern diagnostic needs. Designed to deliver accurate, real-time imaging, it’s ideal for hospitals, diagnostic centers, and mobile medical units across Bangladesh. With a lightweight laptop-style design, this system combines portability with the power of advanced imaging technology.

Whether you’re performing obstetric scans, cardiac imaging, or general diagnostics, the K-C506 offers color Doppler, B, M, PW, CFM, and PDI modes, enabling precise evaluations across a wide range of clinical applications.

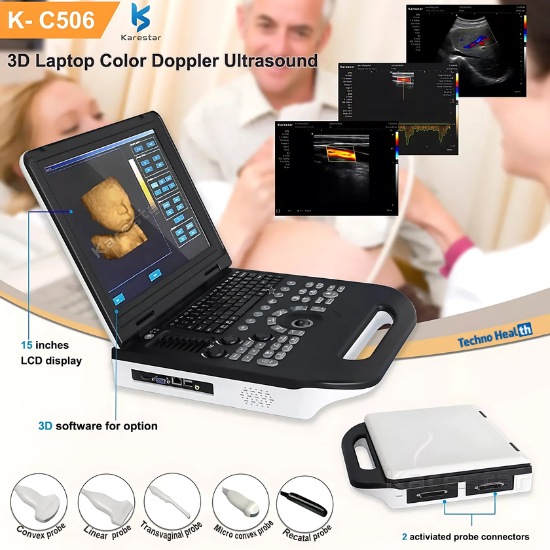

Key Features

01. Display

• Type: 15-inch LED Display.
• Visuals: Provides crisp visuals for accurate diagnosis and real-time scanning.

02. Imaging Modes

• B-mode: Includes B-mode, B/B (dual B-mode), 4B (quad B-mode), and B + M (B-mode with M-mode).
• Color Doppler: Features Color Flow Mapping (CFM) and B + CFM.
• Power Doppler: Incorporates Power Doppler Imaging (PDI) and B + PDI.
• Pulsed Wave Doppler: Supports Pulsed Wave (PW) Doppler for blood flow analysis.
• Optional: 3D/4D Imaging for volumetric scanning and real-time 3D rendering.

03. Advanced Image Processing

• Features: Includes THI (Tissue Harmonic Imaging), speckle reduction, digital beamforming, and five levels of auto-optimization.

04. IMT Automatic Measurement

• Functionality: Carotid intima-media thickness (IMT) calculation for precise vascular assessments.

05. Cine Loop Storage

• Capacity: Buffer of 200–2000 frames for playback and review of dynamic studies.

06. Ideal For

• Hospitals, diagnostic centers, and private clinics

• OB/GYN, cardiology, paediatrics, urology, small-part imaging

• Mobile medical teams, field diagnostics, and remote clinics

Technical Specifications

01. Probe Ports

• Connectors: 2 activated connectors with auto-detection function for efficient probe management.

02. Onboard Storage

• Capacity: 128 GB SSD for storing images, reports, and cine loops.

03. Data Export & Connectivity

• Ports: HDMI, VGA, USB.
• Standards: DICOM.
• Additional: Line Out for seamless integration and printouts

04. Imaging Depth & Resolution

• Imaging Depth: Up to 400 mm.
• Resolution: 1024 × 678 pixels.
• Grey Scale: 256 levels.

06. Physical Size & Weight

• Dimensions (Approximate): 370 × 382 × 90 mm.
• Weight (Approximate): 6.7 kg.
