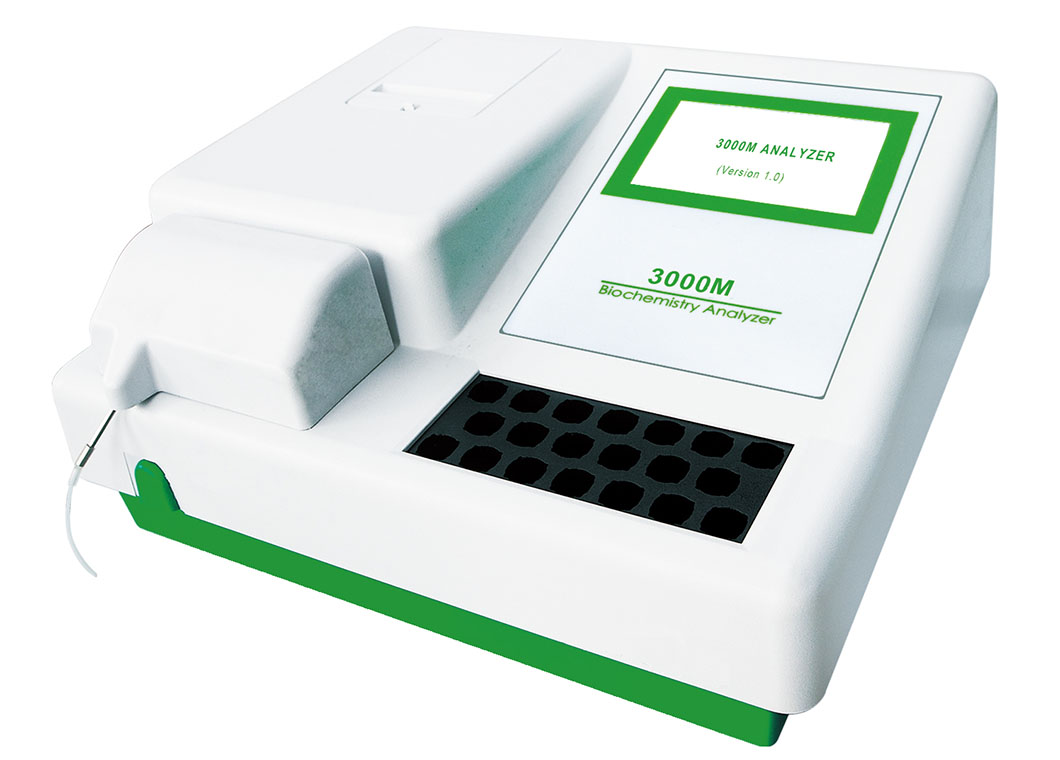

Healicom SCA3000M Semi auto Biochemistry Analyzer
Quick Details
- Type: Biochemical Analysis System
- Brand Name: Healicom
- Model Number: SCA3000M
- Place of Origin: Jiangsu, China
- Instrument classification: Class II
- Warranty: 1 Year
- After-sale Service: Online technical support
- Display: 5 inch touch screen
- Incubator: 20 incubating positions
- Light Source: 6V/10W halogen lamp
- Aspiration Volume: 200~800
- Wavelength: 340/405/492/510/546/578/62
● Latest concept and technology
● Color touch screen ● Multi-language
Technical Specifications
|
Reading Cuvette
|
Both flow through cell and direct reading cuvette
|
|
Aspiration Volume
|
200ul~800ul
|
|
Incubator
|
20 incubating positions
|
|
Photometric System
|
Light Source: 6V/10W halogen lamp
|
|
Wavelength: 340/405/492/510/546/578/620nm, 2 more filter on request
|
|
|
Wavelength Accuracy: ±2nm
|
|
|
Thermostatic Control
|
Temperature: 25℃, 30℃,37℃
|
|
Precision: ±0.1℃
|
|
|
Measuring System
|
Method: End point, Fixed time, Multistandard, Differential, Bichromatic and Immunoturbidimetric, etc
|
|
Mearsuring Range: 0~3.000 O.D
|
|
|
Photometric Linearity: ±2%( 0~3.000 O.D)
|
|
|
Photometric Accuracy: ±1%( 0~3.000 O.D)
|
|
|
Carry-over:≤1%
|
|
|
Drift
|
< 0.005 O.D/hr
|
|
Test Menu
|
T.BILI r-GT/GGT CHO Ca APOB-1/B CHE TP CK
|
|
D.BILI ALP/AKP TG CL APOB CREA UREA P
|
|
|
CK-MB Mg ALB CREA LDH C ASO AFU HS-CRP
|
|
|
Lactic Acid UA a-HBDH CO2 FMN LP(a) AST/GOT PA
|
|
|
ALT/GPT GLU AMY LDL-C HDL-C LA TBA ADA
|
|
|
Fe Cu Zn C3 C4 lgG lgM lgA and drug, toxicity, etc
|
|
|
Quality Control
|
Excellent Q.C. function, Q.C chart may be displayed and printed
|
|
Display
|
Back-illuminated LCD, color touch screen
|
|
Storage
|
Over 200 programs, 1000 test results
|
|
Software
|
For computer communication on request
|
|
Interface
|
RS-232 serial port for additional PC
|
|
Power Supply
|
AC110V/60Hz or 220V/50Hz
|
|
Dimensions
|
34cm*38cm*18cm
|
|
Weight
|
8.0Kg
|
