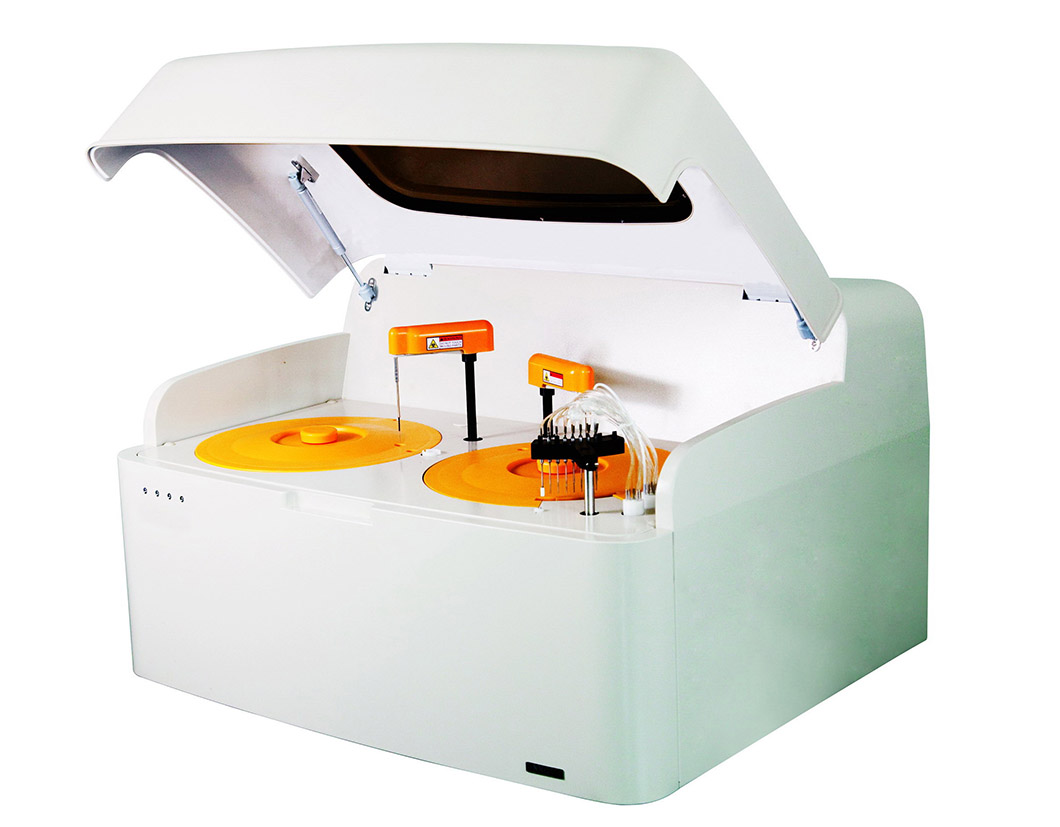

Healicom FCA261 Fully Automated Biochemistry Analyzer
৳ 780,000.00
- Type: Biochemical Analysis System
- Brand Name: Healicom
- Model Number: FCA261
- Place of Origin: Jiangsu, China
- Instrument classification: Class II
- Warranty: 1 Year
- After-sale Service: Online technical support
Call for details 01842-756014
Healicom FCA261 Fully Automated Biochemistry Analyzer
Quick Details
- Type: Biochemical Analysis System
- Brand Name: Healicom
- Model Number: FCA261
- Place of Origin: Jiangsu, China
- Instrument classification: Class II
- Warranty: 1 Year
- After-sale Service: Online technical support
- Analytical system: Random access with direct reading system
- Assay Item: 40 assay items (80 optional)
- Sample Volume: 1-100uL, 0.1uL/step
- Reagent Position: 40 positions (80 optional)
- Wavelength: 340-810nm

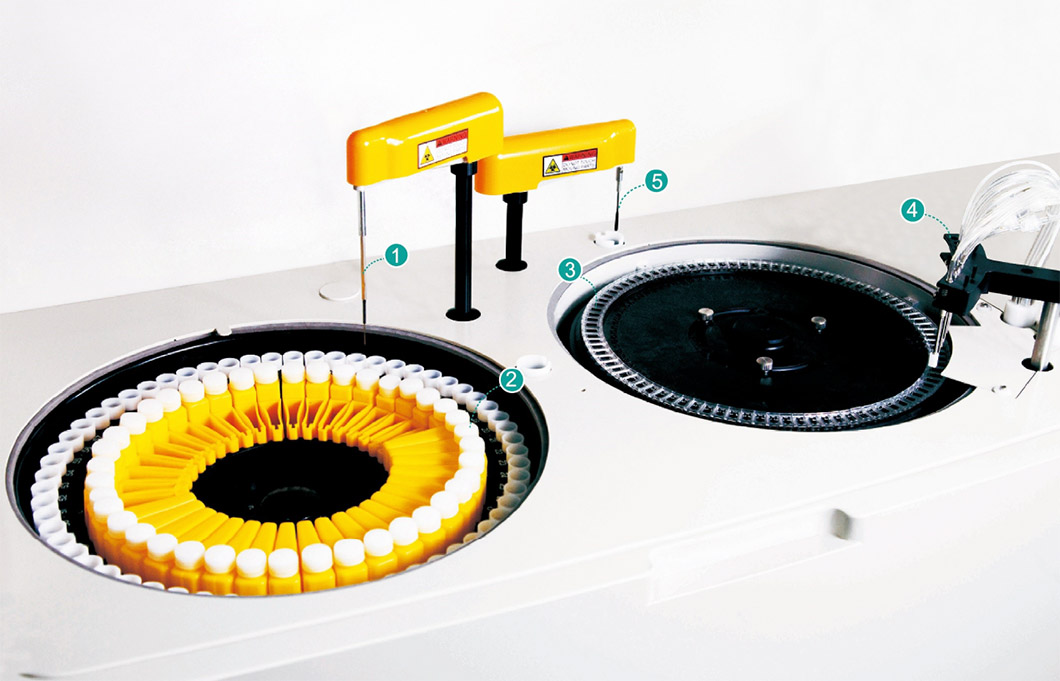

1. Sample/Reagent Probe Sample/reagent probe with liquid sensor, anti-collision sensor and automatic washing function
2. Sample/Reagent Disk 40 positions (80 positions optional); 24-hour continuous refrigeration system with independent switch; 60 sample positions, available to use serum cup or blood tube
3. Cuvettes High quality UV-transmitted plastic cuvettes, quartz glass cuvettes optional

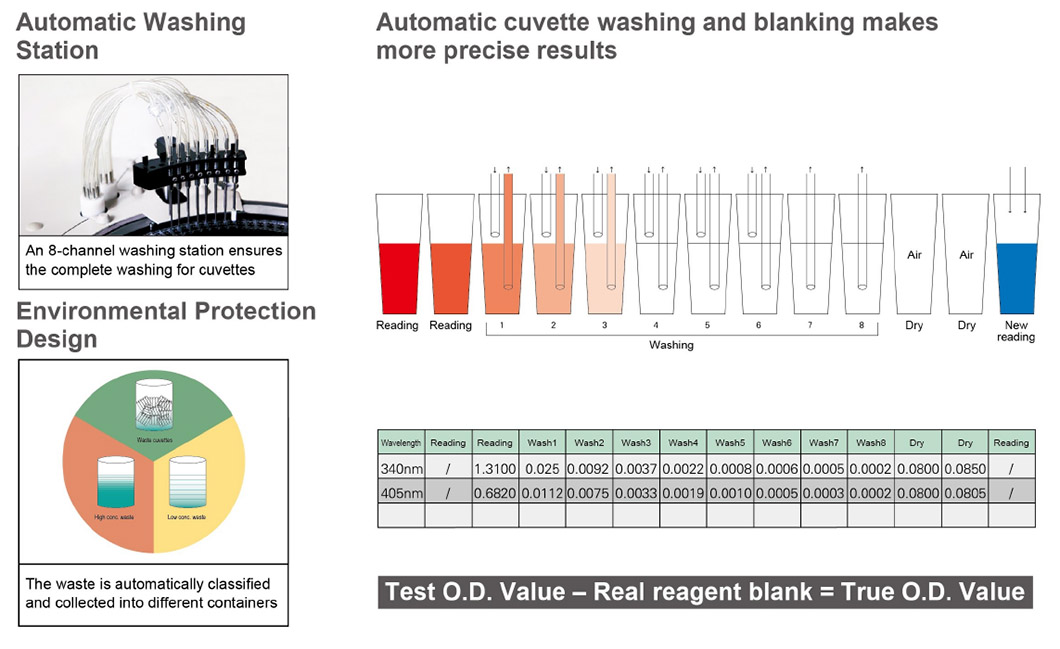

4. 8 channels automatic washing system Eight channels washing station for each cuvette, automatic record and deduct cuvette blank value
|
Analytical System
|
Random access with direct reading system
|
|
Method
|
End point, Kinetic, Fixed time, Immunoturbidimetric, 1-2 reagent, multistandard, reagent/serum blank, etc
|
|
Assay Item
|
40 assay items (80 optional)
|
|
Throughput
|
1 Reagent: 240 tests/h (max)
|
|
2 Reagent: 150 tests/h (max)
|
|
|
With ISE: 120 tests/h (optional)
|
|
|
Sample Position
|
60 postions
|
|
including standard, control stat; either serum cup or primary tube available
|
|
|
Sample Volume
|
1-100µL, 0.1µL/step
|
|
Reagent Position
|
40 positions (80 optional)
|
|
Reagent Volume
|
R1: 1µL-400µL, 0.1µL/step R2: 1µL-400µL, 0.1µL/step
|
|
Reagent/Sample Probe
|
With liquid level sensor, collision sensor, teflon coating and automatic washing
|
|
Reaction Time
|
0-999seconds
|
|
Cuvette
|
High quality UV-transmitted plastic cuvette, or quartz glass cuvette on request
|
|
Cuvette Time
|
8 channels automatic washing system for reaction cuvettes
|
|
Independent washing station for each sample/reagent probe and mixer
|
|
|
Alarm
|
Automatic alarm for malfuction (e.g: collision, reagent insufficiency, full waste container etc)
|
|
Calibration
|
Linear, Non-linear, Multi point, K factor
|
|
Sample Dilution/Retest
|
Sample can be diluted and retested if results are out of range or sample is insufficient
|
|
Wavelength
|
340-810nm
|
|
Light Source
|
Halogen lamp
|
|
Absorbance Resolution
|
0.0001A
|
|
Absorbance Accuracy
|
±0.0003A(0~2.5A)
|
|
Carry-over
|
≤0.1%
|
|
Quality Control
|
Levy jennings quality control program at 3 levels
|
|
Bar Code
|
Optional
|
|
Printer
|
Multiple report formats available
|
|
Language
|
English, French, Spanish, German, Russian, etc
|
|
System
|
Windows XP or 7
|
|
Power Supply
|
220V/50Hz, or 110V/60Hz
|
|
Dimension
|
85 x 72 x 53cm
|
|
Weight
|
85Kg
|
