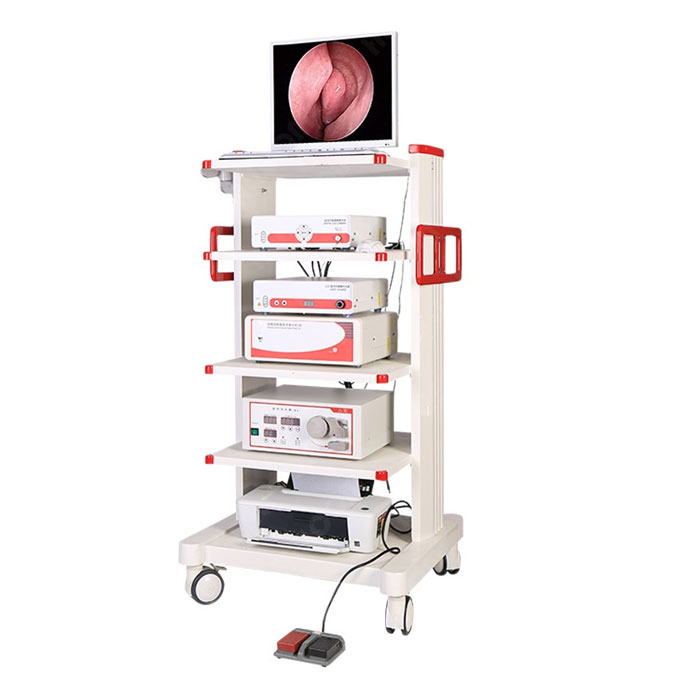

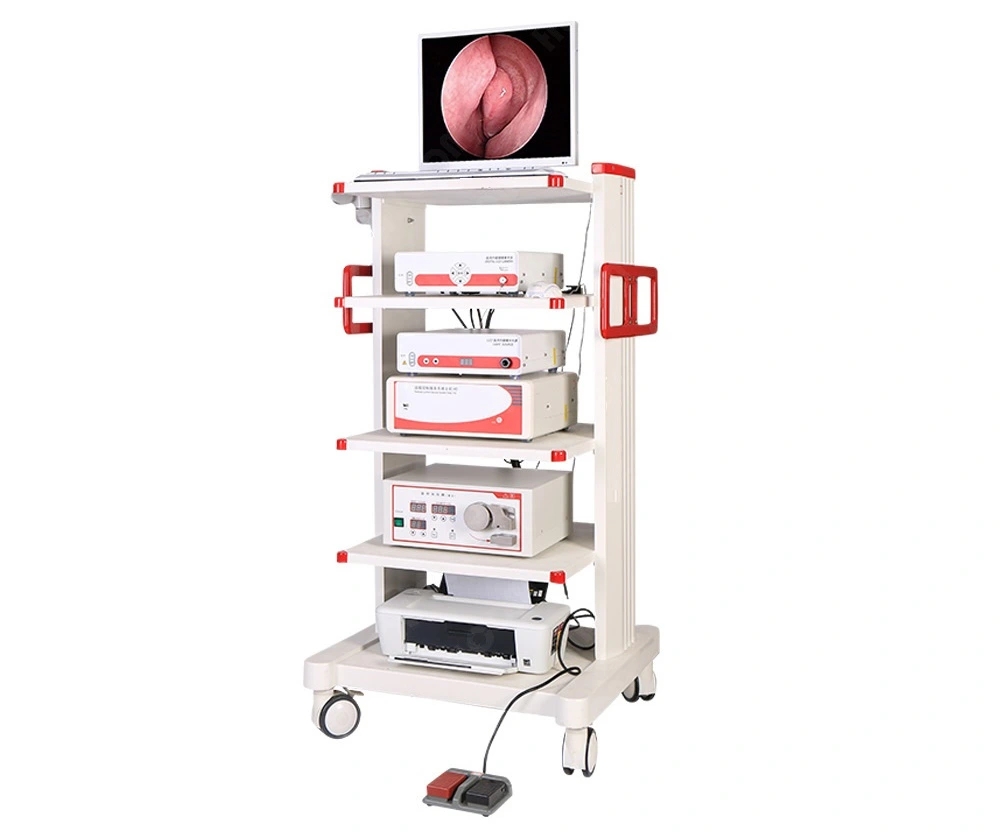

Healicom ENT Surgical Endoscope Tower Type
Quick Details
- Place of Origin: Jiangsu, China
- Brand Name: Healicom
- Model Number: HED-2000
- Power Source: Electric
- Warranty: 1 Year
- After-sale Service: Online technical support
- Material: Metal
- Shelf Life: 1years
- Quality Certification: ce
- Instrument classification: Class II
- Safety standard: GB/T18830-2009
- Product name:Anorectal Endoscope Set
- Patient monitor: 15 inch 19 inch 21 inch
- Endoscopy camera: CCD/HD
- LED cold light source: 30w 50w 80w
- Application: Ear examination and surgery
- Application 1: Ear nerve surgery
- Application 2: Middle ear infection and eardrum surgery
- Application 3: Anaphylaxis atrophic
- Brand: Healicom
Products Description

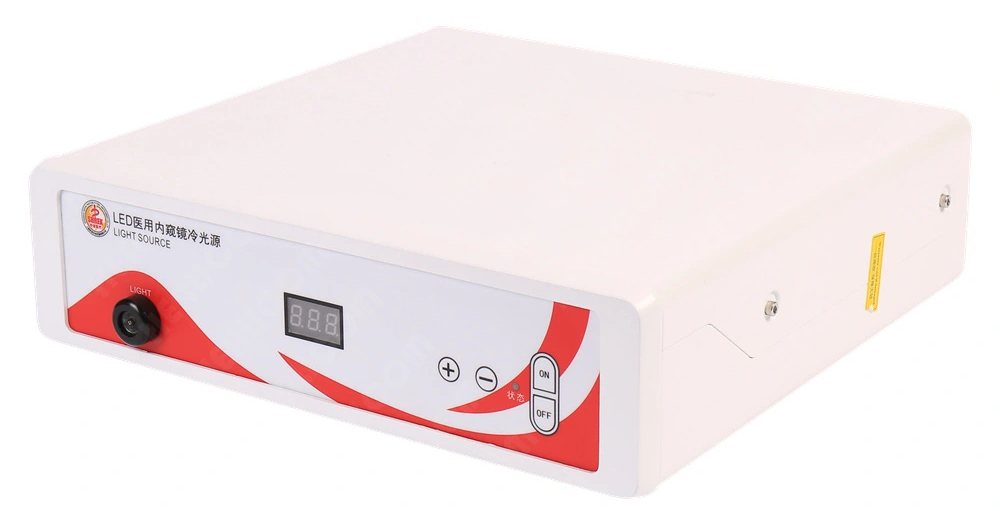

Light source
|
Led light
|
Brightness (Lux)
|
≥490000lx
|
Color temperature
|
≥6500K
|
LCD Timing Screen
|
Yes
|
Input Power
|
50VA
|
Noise
|
≤55dB
|

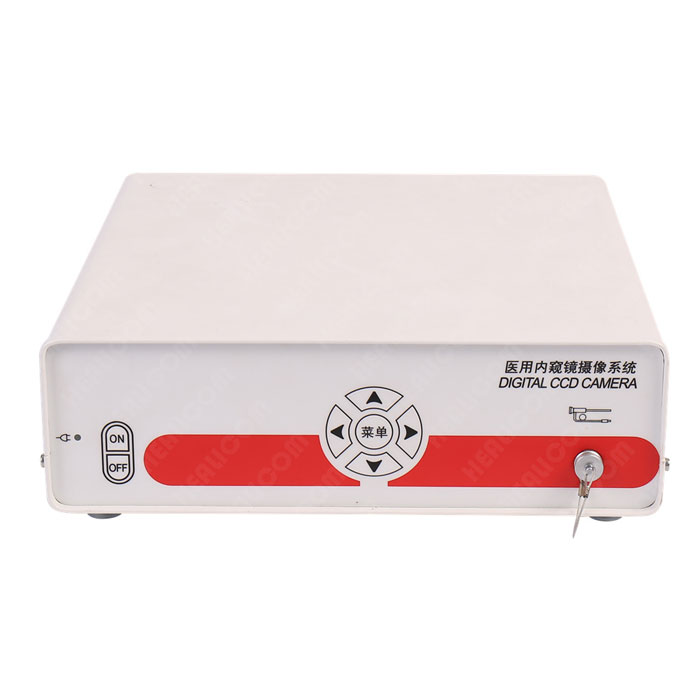

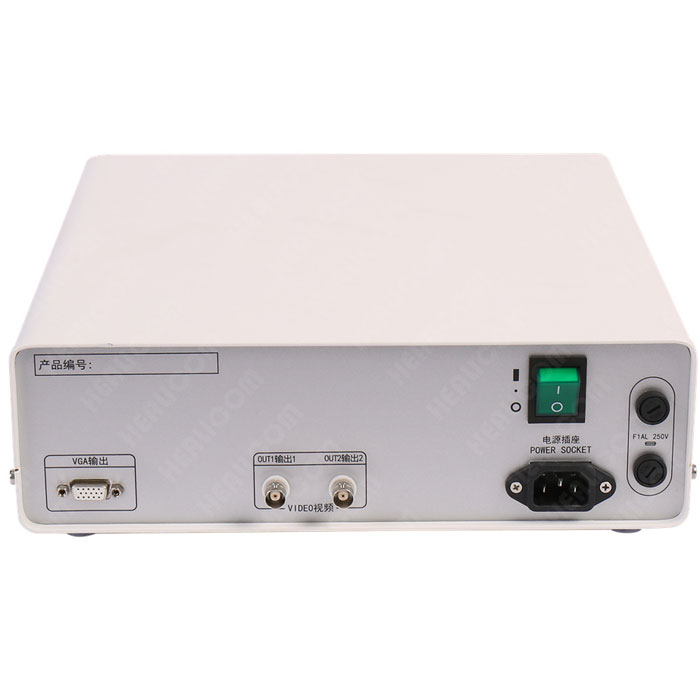

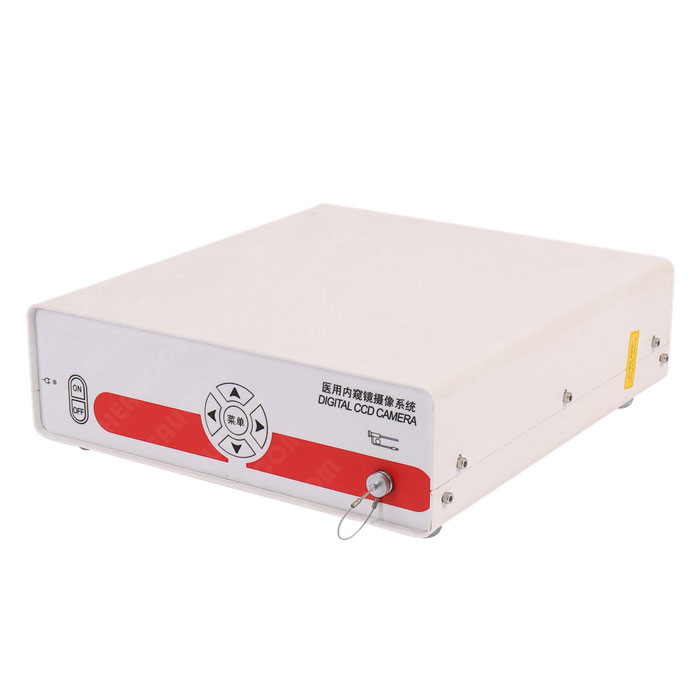

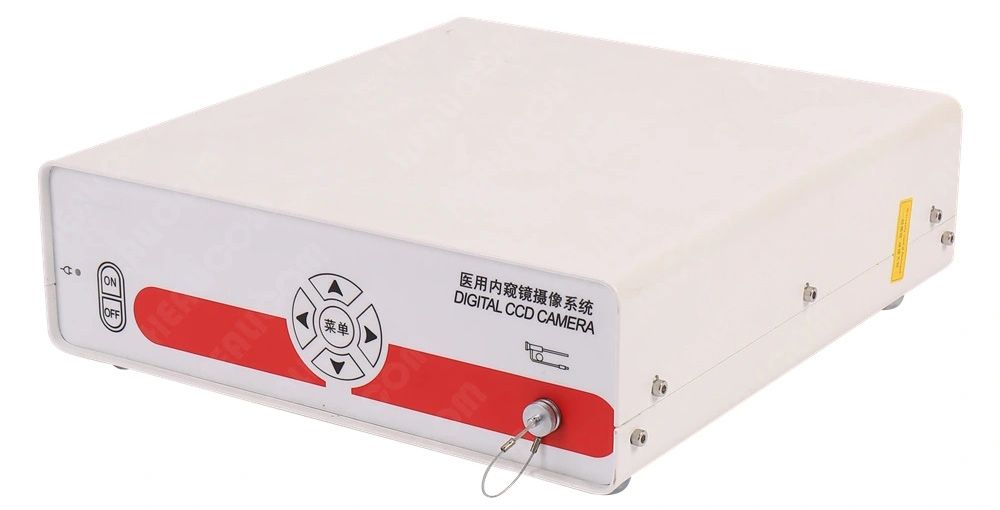

Camera System
1. The original import chip, Digital signal.
2. The resolution of endoscope camera is up to 700 lines.
3. Automatic white balance,reduce the difficulty of operators.
4. Multi-output.
5. Extinction speed is less than 0.5s.
6. Camera head waterproof: IPX8,to prevent water from entering the camera head during the surgery.
Image Sensor
|
1/3CCD
|
Effective Pixel
|
P:795(H)*596(V)
|
Horizontal Resolution
|
700TVL
|
Scan Mode
|
Interlacing Scan
|
Extinction Speed
|
<0.5S
|
DSS
|
30x
|
Application
|
Laparoscope, Hysteroscopy, Arthroscopy, Cystoscopy, ENT,Urology etc.
|
Scanning Frequency
|
N:60HZ P:60HZ
|
Digital Zoom
|
0-60x
|
DNR
|
3D Denoise
|
Brightness
|
ODS Adjustable
|
White Balance
|
AWC/MWC/One step WB
|

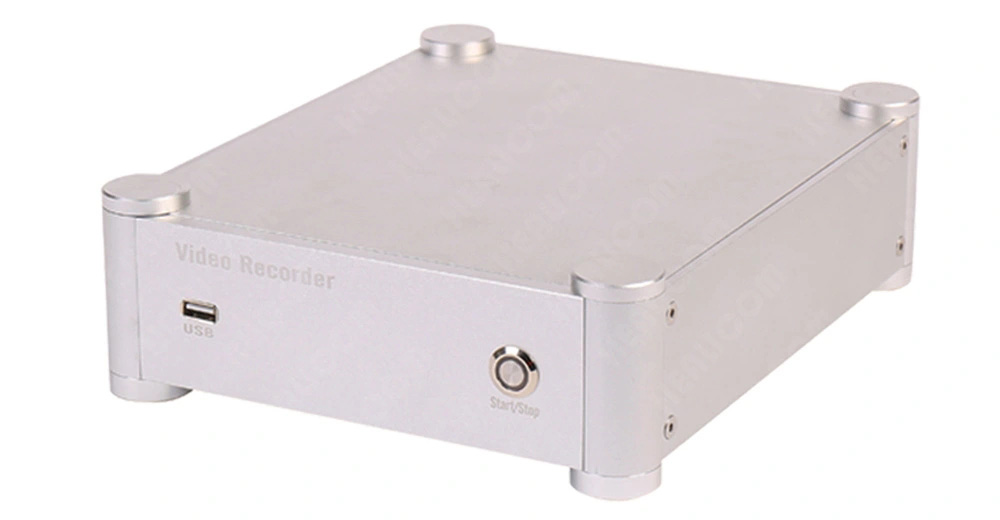

Full HD video recorder
1. Easy to carry and connect;
2. Imported aluminum and independent protective device of power ;
3. Can connect with any endoscope camera system;
4. Apply to genecology, ENT, obstetrics, urology, orthopedocs, chest surgery, general surgery, etc.
Recording format
|
MP4
|
Recording quality
|
MAX 18Mbs@1080P 30fps
|
Recording interface
|
USB disk and Removable hard disk
|
External U flash disk
|
MAX 128G
|
External mobile HDD
|
MAX 2T
|
Input signal
|
BNC, HDMI
|
Output signal
|
HDMI
|
Resolution
|
Input / output / Record
720×480(60p),720×576(50p) 1280×720(50p),1280×720(50p) 1920×1080(50i),1920×1080(60i) 1920×1080(24p),1920×1080(25p) 1920×1080(30p),1920×1080(50p) 1920×1080(60p) |
