Healicom Arthroscope Instrument Full Set Endoscope Camera System

Healicom Arthroscope Instrument Full Set Endoscope Camera System

৳ 1,540,000.00

Place of Origin: Jiangsu, China
Brand Name: HEALICOM
Model Number: HAE-2000
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online technical support
Material: Metal, Plastic

Call for detail: 01842-756014

Categories: Endoscope Machine, Medical Equipment

Description
Reviews (0)

Healicom Arthroscope Instrument Full Set Endoscope Camera System

Quick Details

Place of Origin: Jiangsu, China
Brand Name: HEALICOM
Model Number: HAE-2000
Power Source: Electricity
Warranty: 1 Year
After-sale Service: Online technical support
Material: Metal, Plastic
Shelf Life: 1years
Quality Certification: ce
Instrument classification: Class I
Safety standard: None
screen: 21″ HD LCD screen
Dimension ratio:: 16:9
Input signal:: DVI , VGA,S-VIDEO,CVBS
Power supply:: AC100~240V 50/60HZ
Horizontal Resolution:: 1920*1080
Effective Pixels:: 1920*1080;
Resolution::1080P(1000lines)
Video Output:: HDMI*4, SDI*1, BNC*1, VGA*1
Brightness::ODS adjusting

Products Description

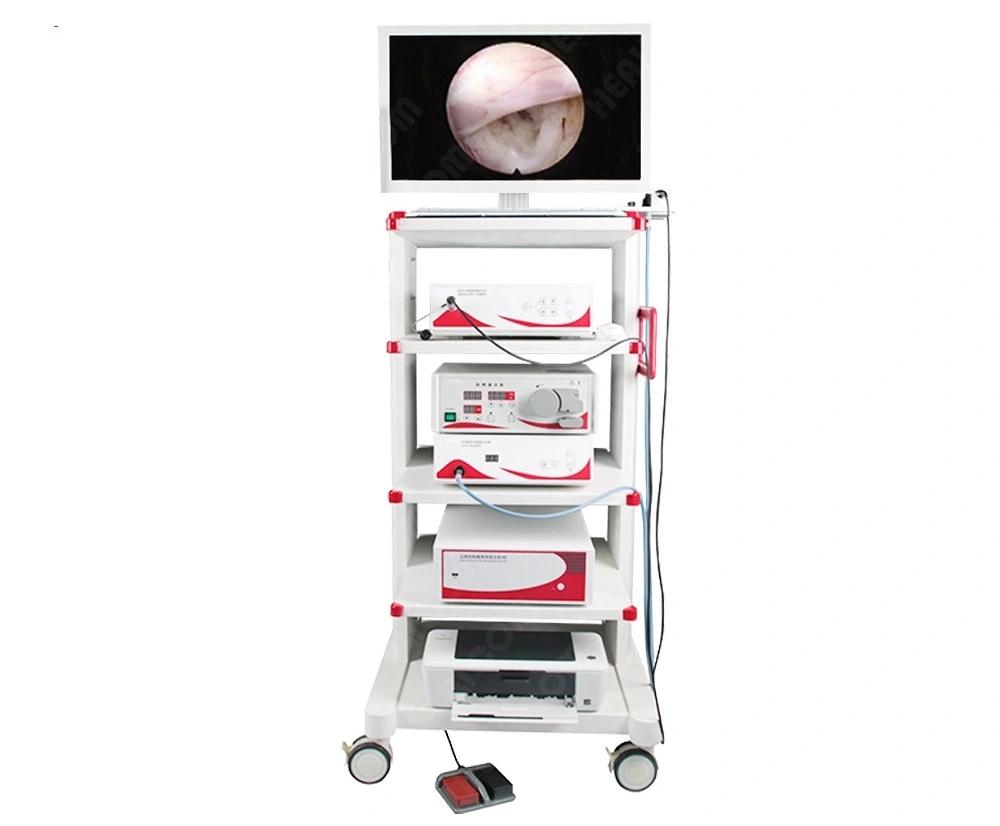

HAE-2000 Video Endoscope Arthroscope Set

Application: • Knee osteoarthritis synovitis • Traumatic arthritis • Rheumatoid arthritis • Tuberculous arthritis • Suppurative arthritis • Osteochondritis dissecans • Synovial chondromatosis • Chondromalacia patellae • Osteophyte (bony spur) • Free bodies joint • Temporomandibular disorders • Meniscus injury

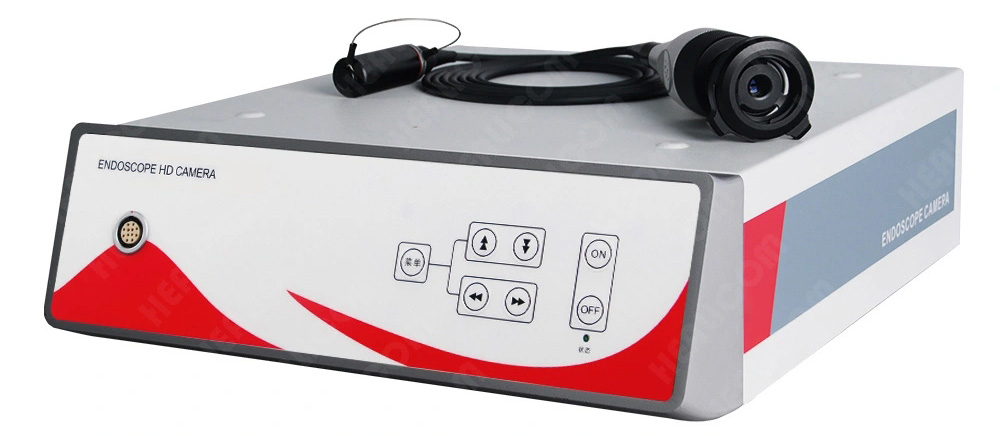

Camera System With multi-function camera head: freeze & white balance. This hd endoscopy camera system can be used for all rigid endoscope surgery, such as laparoscopy, hysteroscopy, ENT, arthroscopy, cystoscopy and so on.

Product Name	full hd endoscopy camera system
Camera	3CCD
Camera head	hd camera head of different types
Coupler	16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 18-32mm
Grade	medical degree
Output	HDMI4, SDI1, BNC1, VGA1

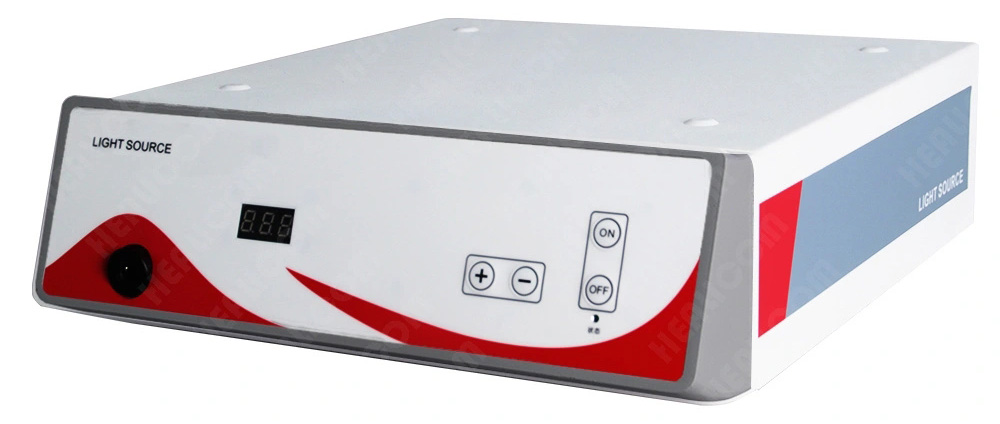

Light source 1. Imported key component: adopted imported medical LED, strong stability, good anti-seismic property; 2. Long service life: working time more than 20,000~40,000 hours, minimizing the need to replace the bulb, cost saving; 3. Colour temperature purity: natural light 6500k; 4. High brightness: 490,000Lux, great transparency, excellent color rendering, great three-dimensional sense of the surgery; 5. Good compatibility: international standard light guide cable,to connect with most of brands, like Storz, Olympus, Wolf etc.

Light source	Led light
Effective optical power	≥100mW
Brightness (Lux)	≥490000lx
Color temperature	≥6500K
Surface temperatures	≤60ºC
Flat thermal of light source	≤80ºC
Atmospheric power	860hPa~1060hPa
Host fuse	T2AL 250V AC
Light power	≥100mW
Light out	(Diameter)(10±0.10)mm

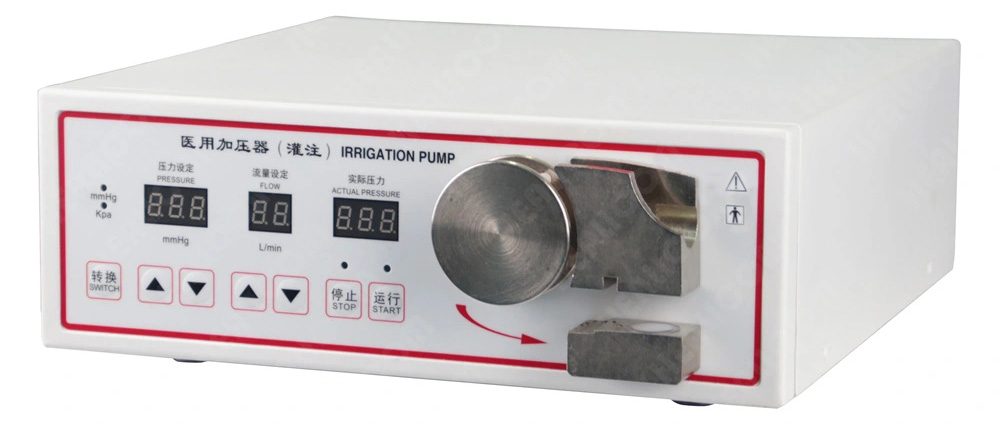

Irrigation pump
Used for hysteroscope’s swell and force, urology surgery’s liquid irrigation, also be able to use in arthroscopy, laparoscopy surgery.

Noise	≤55dB(A)
Power	150VA
Range of pressure	15~400mmHg (2~53.3kPa)
Supply voltage	220V 50HZ
Range of flw	0.1~1.0L/min

Full HD video recorder
1. Easy to carry and connect;
2. Imported aluminum and independent protective device of power ;
3. Can connect with any endoscope camera system;
4. Apply to genecology, ENT, obstetrics, urology, orthopedocs, chest surgery, general surgery, etc.

Recording format	MP4
Recording quality	MAX 18Mbs@1080P 30fps
Recording interface	USB disk and Removable hard disk
External U flash disk	MAX 128G
External mobile HDD	MAX 2T
Input signal	BNC, HDMI
Output signal	HDMI
Resolution	Input / output / Record 720×480(60p),720×576(50p) 1280×720(50p),1280×720(50p) 1920×1080(50i),1920×1080(60i) 1920×1080(24p),1920×1080(25p) 1920×1080(30p),1920×1080(50p) 1920×1080(60p)
