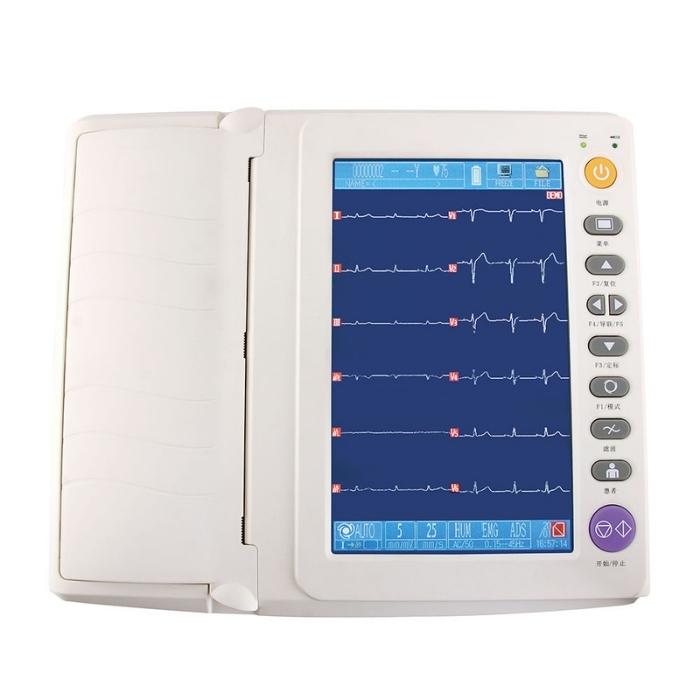

HE-12B 12 Channel Digital Electrocardiogram ECG Machine
Specification
- Portable and delicate design, big touch screen, very easy to operate.
- Accurate pulse pace identification function.
- High accuracy digital filter, automatic baseline adjustment.
- Working modes: Manual, Automatic, R-R, Store.
- 210mm, 12 channel format recording, excellent automatic interpretation.
- 800×480 graphic 9 inch color touch LCD to simultaneously display ECG information.
- 250 patient cases storage ( SD card storage is optional ).
- Detailed patient information record, available for roll and Z-fold thermal paper.
- Adapt to 110-230V, 50/60Hz power supply. Built-in rechargeable Li-ion battery supports continuously working for about 18 hours.
- USB / UART communication port support USB storage, laser printer printing and PC ECG software ( Optional ).
Technical Specifications
Lead | Standard 12 leads | Time constant | ≥3.2s |
lead acquisition | 12 leads synchronously acquisition | Frequency response | 0.05~160Hz(-3db) |
Work mode | Manual / Auto / R-R / Store | Noise level | <15μVp-p |
Filter | AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive) | Inter-channel Interference | ≤0.5mm |
CMMR | ≥120dB (with AC FILTER) | Sensitivity | Auto, 2.5, 5,10,20,40mm/mV (±3%) |
Input circuit | Floating; Protection circuit against defibrillator effect | Recording mode | 3ch , 6ch, 6ch , 12ch |
Input Impedance | ≥50MΩ | Paper speed | 6.25, 12.5, 25, 50mm/s(±3%) |
Input circuit current | ≤0.05μA | Paper | 210mm x 20m roll thermal paper |
Patient current leakage | <10μA | Communication | USB, UART |
Calibrating voltage | 1mV±2% | Power Supply | AC 110-230V(±10%), 50/60Hz(±1Hz), 40VA DC Built-in rechargeable battery, 14.4V (4400mmAh) |
Voltage tolerance | ≥±500mV | Dimension/Weight | 347mmx293mmx83mm, 4.8kgs |
Main Accessories and Packing List
