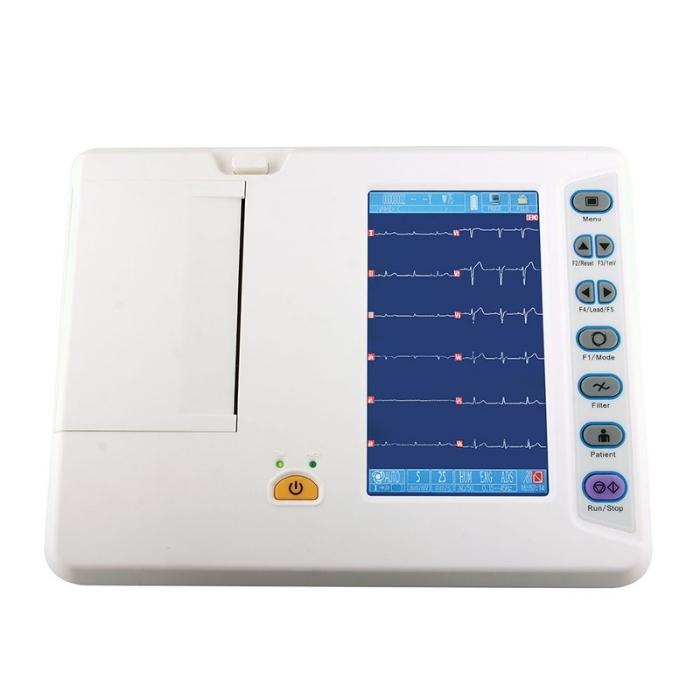

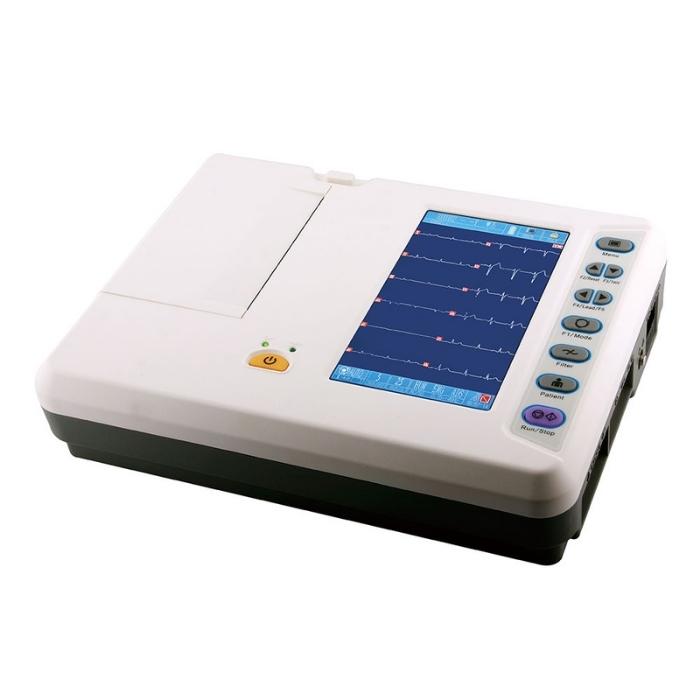

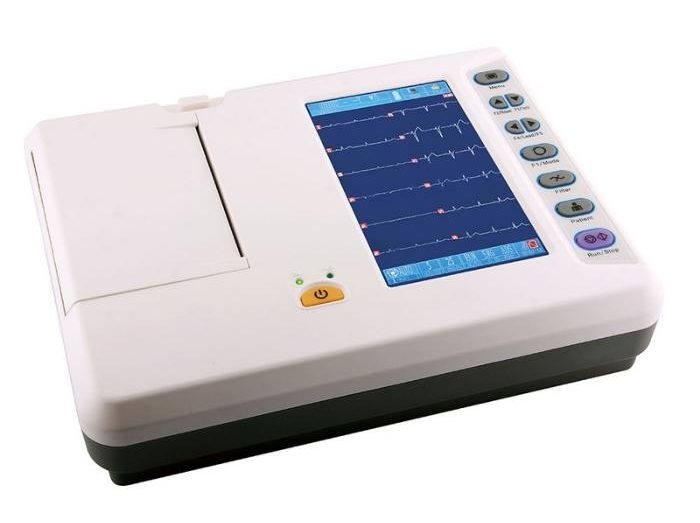

Hot Sale Cheap Medical Digital Electrocardiograph ECG cardiograph Machine
Specification
- Accurate pulse pace identification and automatic analysis function
- Working modes: Manual / Auto / Analysis/Storage
- 112mm, 6 channel format recording
- 800×480 graphic 7 inch color touch LCD screen
- 12 leads synchronously acquisition and display
- Advanced [Freeze] function
- 250 patient cases save and replay (extendable)
- Adapt to 110-230V, 50/60Hz power supply
- Built-in rechargeable Li-ion battery
- High resolution thermal printing
- USB/RS232 interface, ECG software is optional
- Can be connected to Network, USB Disk, Printer and Code Scanner (Optional)
Technical Specifications
Lead | Standard 12 leads | Time constant | ≥3.2s |
lead acquisition | 12bit/1000Hz(synchronously 12 leads) | Frequency response | 0.05~160Hz(-3db) |
Work mode | Man / Auto/Analysis/Storage | Noise level | <15μVp-p |
Filter | AC Filter: 50Hz / 60Hz EMG Filter: 25Hz / 45Hz Anti-Drift Filter: 0.15Hz (Adaptive) | Inter-channel Interference | ≤0.5mm |
CMMR | ≥100dB (with AC FILTER) | Sensitivity | 5,10,20, 40, Auto (mm/mV) |
Input circuit | Floating; Protection circuit against Defibrillator effect | Recording mode | 3ch, 3ch , 3ch , 6ch Default Man. Mode is 3ch format Default Auto. Mode is 6ch format |
Input Impedance | ≥50MΩ | Paper speed | 6.25,12.5,25,50mm/s(±3%) |
Input circuit current | ≤0.05μA | Paper | 112mm *20m Roll paper |
Patient current leakage | <10μA | Communication | RS232/ USB port |
Calibrating voltage | 1mV±2% | Power Supply | AC 110-230V(±10%),50/60Hz(±1Hz),60VA DC Built-in rechargeable battery,14.4V(2000mmAh) |
Voltage tolerance | ≥±500mV | Dimension/Weight | 300mm×230mm×72mm / 2.8Kg |
Main Accessories and Packing List
