HE-12A1 12 Channel Digital ECG Machine
৳ 150,000.00
Specification of HE-12A1 12 Channel Digital ECG Machine
- Model Number: HE-12A1
- Brand Name: Healicom
- Instrument classification: Class II
- Quality Certification: ce
- Lead Acquisition: 12bit/32000Hz (Synchronously )
- Frequency Response: 0.05-160Hz ( -3dB )
- Work Mode: Manual / Auto / R-R Analysis/Storage
- Sensitivity: Auto, 2.5, 5, 10, 20, 40mm/Mv (±3%)
- Lead: Standard 12 Leads
Call for details 01842-756014
HE-12A1 12 Channel Digital ECG Machine
Product Features of HE-12A1 12 Channel Digital ECG Machine
- Portable, delicate design, easy to cooperate.
- Accurate pulse pace identification; High accuracy digital filter & auto baseline adjustment.
- 12 leads synchronously acquisition and record; recording mode 3ch+++, 6ch, 6ch+, 12ch.
- Four working modes: Auto / Man / R-R Rhythm / Storage.

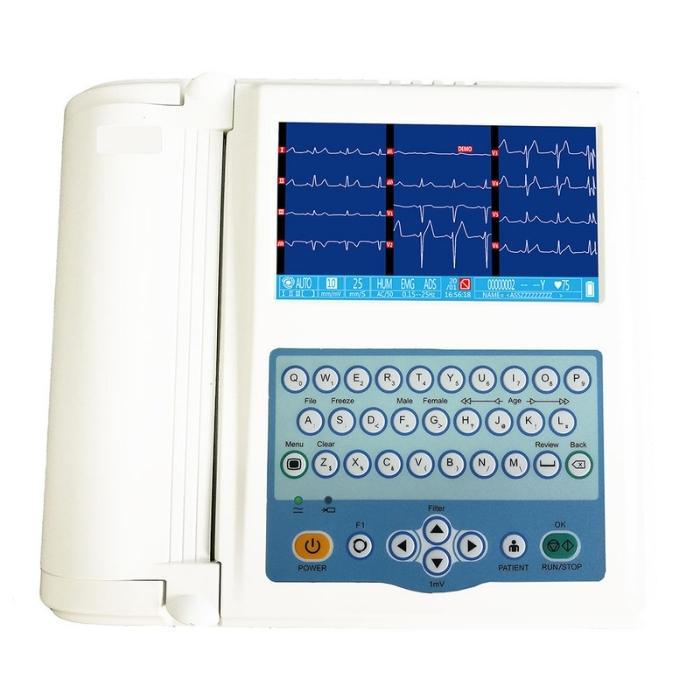

- 800×480 graphic, 7-inch color LCD to display ECG information
- Alphanumeric keyboard to operate.5
- 250 patient cases storage and replay (internal SD card is optional).
- With freeze function of freezing 12 seconds ECG.
- 210mmx20m, roll paper, high-resolution thermal printing (optional for Z-fold paper).

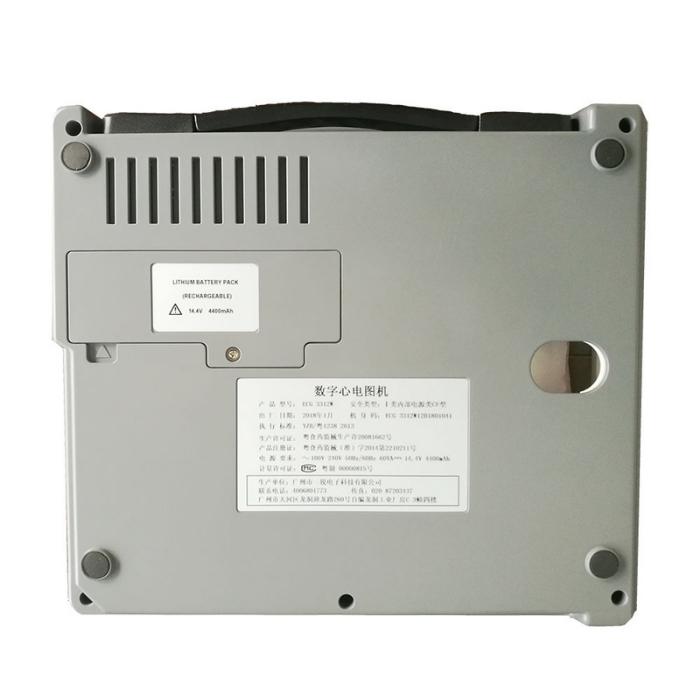

- Rechargeable Li-ion battery supports long-time continuous work.
- Rs232 and USB port support USB flash storage, and laser printer printing (optional).
- PC ECG management software is optional.
Technical Specifications
|
Lead
|
Standard 12 leads
|
Time constant
|
≥3.2s
|
|
lead acquisition
|
12bit/32000Hz (synchronously)
|
Frequency response
|
0.05~160Hz(-3db)
|
|
Work mode
|
Manual / Auto / R-R Analysis / Storage
|
Noise level
|
<15μVp-p
|
|
Filter
|
AC Filter : 50Hz / 60Hz
EMG Filter : 25Hz / 45Hz Anti-Drift Filter: 0.15Hz (Adaptive) |
Inter-channel Interference
|
≤0.5mm
|
|
CMMR
|
≥120dB (with AC FILTER)
|
Sensitivity
|
Auto, 2.5, 5,10,20,40mm/mV ( 3%)
|
|
Input circuit
|
Floating; Protection circuit against defibrillator effect
|
Recording mode
|
3ch+++, 6ch, 6ch+, 12ch
Default Man. Mode format is 3ch Default Auto. Mode format is 12ch |
|
Input Impedance
|
≥50MΩ
|
Paper speed
|
6.25, 12.5, 25, 50mm/s(±3%)
|
|
Input circuit current
|
≤0.05μA
|
Paper
|
210mm x 20m roll thermal paper
|
|
Patient current leakage
|
<10μA
|
Communication
|
RS232/ USB port
|
|
Calibrating voltage
|
1mV±2%
|
Power Supply
|
AC 110-230V(±10%), 50/60Hz(±1Hz), 40VA
DC Built-in rechargeable battery, 14.4V (4400mmAh) |
|
Voltage tolerance
|
≥±500mV
|
Dimension/Weight
|
310mm x 278mm x 76mm, 3.0kgs
|
Main Accessories and Packing List
