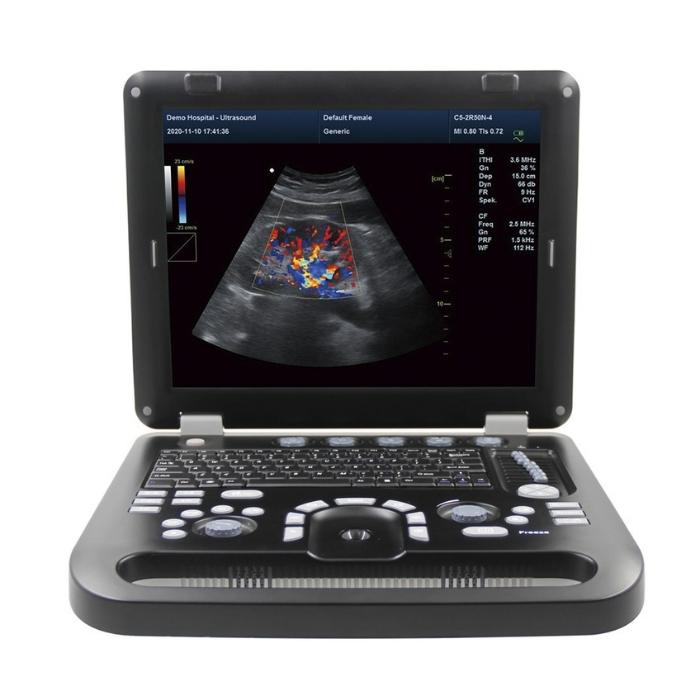

Healicom THUC-570 Color Doppler Ultrasonic Diagnostic Device
৳ 1,195,000.00
- Color Doppler (CF), color power Doppler imaging (PDI).
- Pulse spectrum Doppler (PW).
- Continuous wave Doppler (CW). (HUC-550 doesn’t support).
- Superior in phased array cardiac imaging technology, complete in software package of cardiac measurement function. (HUC-550 doesn’t support).
- B CF (Dual Images).
- B CF/PDI/DPDI PW (Triplex).
- 3D, 4D imaging. (HUC-560/570 optional, HUC-550 doesn’t support).
- Convex array extended imaging (HUC 550doesn’t support).
- Linear array deflection/trapezoid imaging. (HUC 550 optional).
- Anatomic M-mode imaging. (HUC-550/560 optional).
- Space compounding imaging.
- Tissue harmonic imaging (THI).
- Contrast agent imaging.(HUC 560/570 optional, HUC-550doesn’t support).
- Wide scene imaging.(optional)
Call for details 01842-756014
Digital Portable ultrasound scanner 4d Color Doppler Ultrasonic Diagnostic Device
HUC-550/560/570is a color Doppler ultrasonic diagnostic device with high resolution, which has a powerful computer processing platform. The system is mainly suitable for the diagnosis of abdomen, heart, peripheral vessels, breast, obstetrics and gynecology, small organs, urology, muscle, incretion and pediatrics, etc. lt adopts Doppler ultrasound imaging technology, advanced image processing technology (such as digital beam-forming technology, tissue harmonic imaging (THI), image speckle suppression, etc.) and digital integrated graphic management system, and the internal professional measurement software package can fully meet the clinic diagnostic requirement.
Function
- Color Doppler (CF), color power Doppler imaging (PDI).
- Pulse spectrum Doppler (PW).
- Continuous wave Doppler (CW). (HUC-550 doesn’t support).
- Superior in phased array cardiac imaging technology, complete in software package of cardiac measurement function. (HUC-550 doesn’t support).
- B CF (Dual Images).
- B CF/PDI/DPDI PW (Triplex).
- 3D, 4D imaging. (HUC-560/570 optional, HUC-550 doesn’t support).
- Convex array extended imaging (HUC 550doesn’t support).
- Linear array deflection/trapezoid imaging. (HUC 550 optional).
- Anatomic M-mode imaging. (HUC-550/560 optional).
- Space compounding imaging.
- Tissue harmonic imaging (THI).
- Contrast agent imaging.(HUC 560/570 optional, HUC-550doesn’t support).
- Wide scene imaging.(optional)
|
Performance
|
|
|
Display depth
|
≥300 mm
|
|
Extended interface
|
VIDEO interface, S-VIDEO interface, RJ-45 interface, USB interface, VGA interface
|
|
Type of protection against electric shock
|
class I equipment
|
|
Degree of protection against electric shock
|
type B applied part
|
|
Operating voltage
|
AC 100 V~240V
|
|
Operating frequency
|
50 Hz/60 Hz
|
|
Power consumption
|
≤100VA
|
|
Comparison
|
|||
|
Parameters
|
HUC-550
|
HUC-560
|
HUC-570
|
|
Probe array element number
|
80
|
80
|
128
|
|
Channel
|
16
|
40
|
64
|
|
B, B|B, 4B, B|M
|
Standard configuration
|
Standard configuration
|
Standard configuration
|
|
CF, PDI, DPI, PW
|
Standard configuration
|
Standard configuration
|
Standard configuration
|
|
TDI
|
Not support
|
Optional
|
Standard configuration
|
|
B CF
|
Standard configuration
|
Standard configuration
|
Standard configuration
|
|
Color M-mode
|
Optional
|
Optional
|
Standard configuration
|
|
Anatomic M-mode
|
Optional
|
Optional
|
Standard configuration
|
|
TSI, THI, iTHI, HPRF
|
Standard configuration
|
Standard configuration
|
Standard configuration
|
|
B PW (real-time double
synchronization) |
Standard configuration
|
Standard configuration
|
Standard configuration
|
|
B CF/PDI/DPDI PW (real-time triple synchronization)
|
Standard configuration
|
Standard configuration
|
Standard configuration
|
|
CW (B/C: HPRF, D: CW)
|
Not support
|
Standard configuration
|
Standard configuration
|
|
Phased array probe
|
Not support
|
Standard configuration
|
Standard configuration
|
|
Convex array extended imaging
|
Not support
|
Standard configuration
|
Standard configuration
|
|
Linear array deflection/trapezoid
imaging |
Optional
|
Standard configuration
|
Standard configuration
|
|
Space compounding imaging
|
Standard configuration
|
Standard configuration
|
Standard configuration
|
|
Wide scene imaging.
|
Optional
|
Optional
|
Optional
|
|
Contrast agent imaging
|
Not support
|
Optional
|
Optional
|
|
3D/4D
|
Not support
|
Optional
|
Optional
|
|
Puncture enhanced
|
Optional
|
Optional
|
Optional
|
