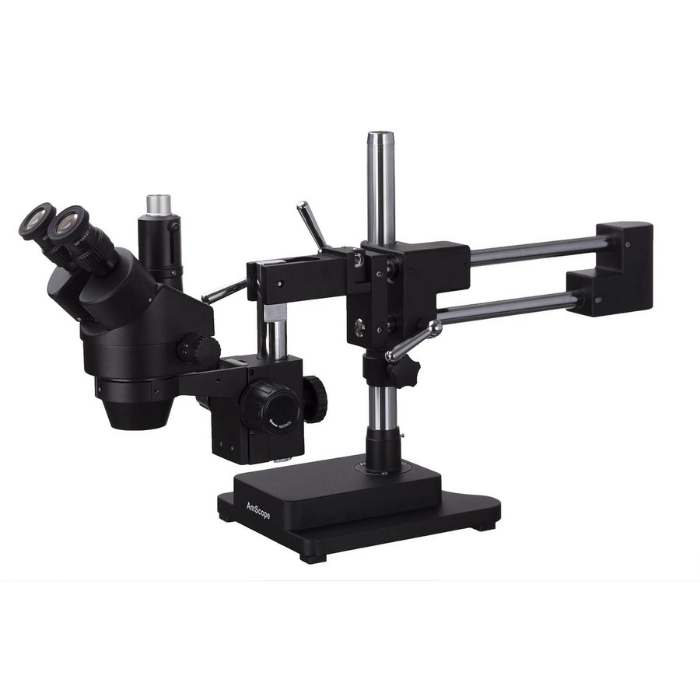

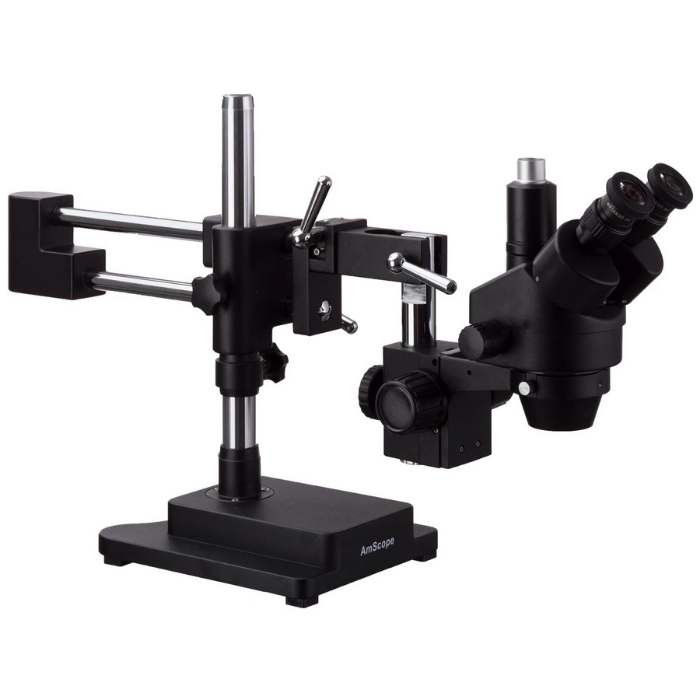

3.5X-90X Black Simul-Focal Trinocular Stereo Zoom Microscope

3.5X-90X Black Simul-Focal Trinocular Stereo Zoom Microscope

Simul-focal trinocular stereo microscope simultaneously views clear images through trinocular port and eyepieces
3.5X-90X stereo zoom microscope in black finish
Super widefield optics provides crystal stereo erect images
2-1/2″ (65mm) SUPER widefield of view and 8″ (200mm) working distance

3.5X-90X Black Simul-Focal Trinocular Stereo Zoom Microscope

This is the black version of our simul-focal stereo microscope. This microscope features a unique simul-focal optical system with an adjustable trinocular port to enable well-focused clear images on your computer/video screen while simultaneously obtaining sharp, focused images through the eyepieces. Most trinocular microscopes allow you to view either through the trinocular port or the eyepieces only, forcing you to switch between the two. Since these trinocular ports are not simul-focal with the rest of the microscope optical system, you have to re-focus the microscope after each switch. This microscope, however, erases this step by providing simul-focal viewing. Especially convenient for quality-control inspections, teaching demonstrations, and many other industry applications, your colleagues or students can simultaneously view clear images shown through the trinocular port while you work through the eyepieces.

This microscope comes with a simul-focal trinocular head, a pair of super widefield high-eyepoint 10X eyepieces and a double-arm heavy-duty boom stand. This microscope offers high resolution, crystal clear images, large magnifying zoom range, and long working distance. The 45-degree inclined trinocular head and high-eyepoint design ensures comfortable observation, including eyeglass wearers. In addition, the rubber eye-guards provide further comfort. The trinocular port also allows the ability to add photographic or video capability. The double-arm boom stand lets the user manipulate the microscope head around three different axes (x, y, and z) and to maneuver the microscope head in any direction desired. It is an ideal instrument for anyone in the semiconductor and electronics industries, research labs, gemology, engraving, and serious collecting.

Features :

Simul-Focal Optical System Allows Simultaneous Observation Through Both the Eyepieces and the Trinocular Port
Have well-focused, clear images on your computer/video screen and through the eyepieces at the same time.
No need to switch between the trinocular port and the eyepieces
No need to re-focus the microscope after each “switch”
30mm Super Widefield 10X Eyepieces
Sharp stereo images over a super widefield view
High resolution with great flatness and contrast
Crystal clear original true-color images
Versatile heavy-Duty Double-Arm Boom Stand
Covers large working area
3-Degree freedom design allowing the microscope head to be pointed in any direction desired
Rugged solid cast steel base finished with stain resistant enamel
3.5X-90X Continuous Zoom Magnification Range
45-Degree Inclined Microscope Head
8″ (200mm) Large Working Distance
Upright Trinocular Tube for Attaching Digital Cameras, Video Camcorders or CCD Videos
Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
Both Ocular Tubes with Adjustable Diopters
Adjustable Interpupillary Distance
Full Optical Glass Elements
Precise Ground Glass Lenses
All Metal Mechanical Components
Rubber Eye-guards Included
Manufactured under ISO 9001 Quality Control Standard
Excellent Five (5) Year Manufacturer Warranty

Specifications :

Head: 45-degree inclined, 360-degree swiveling trinocular
Eyepieces: 30mm super widefield high-eyepoint (WF10X/20)
Objective: 0.7-4.5X
Barlow Lens: 0.5X and 2.0X
Zoom Range: 26:1
Maximum Field of View: 2-1/2″ (65mm)
Minimum Field of View: 3/16″ (2.5mm)
Diopter Adjustment: /-5dp
Interpupillary Distance: 2-3/16″ – 2-15/16″ (55-75mm)
Working Distance: 8″ (200mm)
Boom Stand: 20″ double-arm (overall length: 30″), 17″ high pillar, 10-1/4″x8-1/4″x2-0″ solid cast steel base
Accessories: eye-guards
Shipping Weight: 69 lbs

application	Microscope-Industrial Inspection, Microscope-Gemology/Jewelry, Microscope-Coin/Stamp, Microscope-Engraving, Microscope-Dissecting, Microscope-Dental Lab
category	Microscope-Stereo
color	Microscope-Black
compatibility	None
field view	Super widefield
head style	Microscopes-Simul-Focal
magnification type	Zoom Power
magnifying power	Microscope-3.5X-90X
magnifying style	Microscope-Zoom Power
Manufacturer	AmScope
microscope application	Industrial Inspection, Gemology/Jewelry, Coin/Stamp, Engraving, Dissecting, Dental Lab
microscope barlow lens	0.5X, 2.0X
microscope category	Stereo
microscope color	Black
microscope eyepiece power	10X
microscope eyepiece size	30mm
microscope field view	Super Widefield
microscope head style	Trinocular, Simul-Focal
microscope magnifying power	3.5X-90X
microscope objective power	0.7-4.5X
microscope school	College, Teaching/Training
microscope stand	Boom Stand: double-arm
prop 65
stand	Microscope-Boom Stand: double-arm
