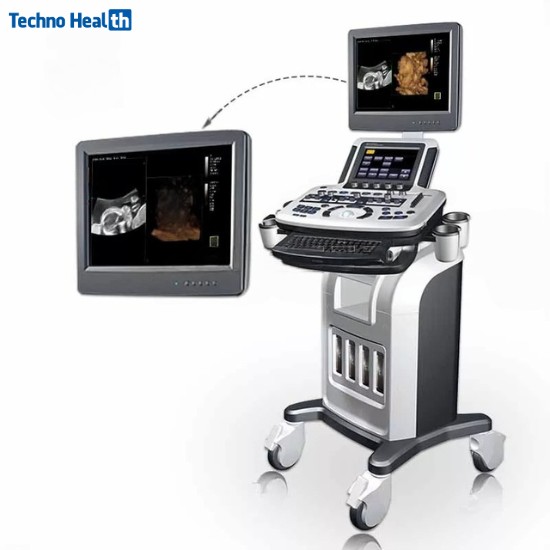

Karestar K-AU6 Ultrasonography Machine (Trolley)

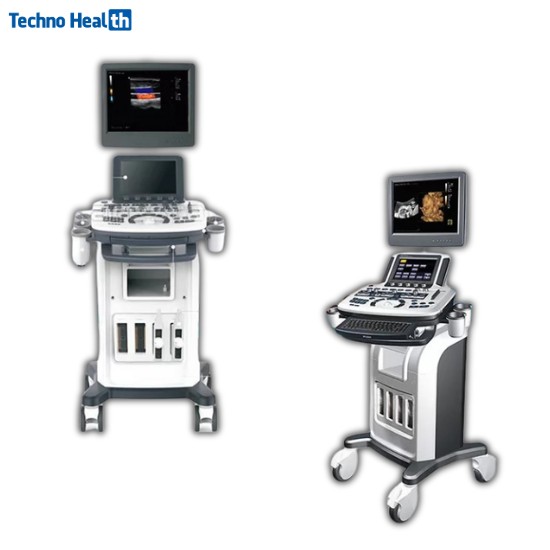

Karestar K-AU6 Trolley Ultrasonography Machine

The Karestar K-AU6 is a premium-grade trolley-based Color Doppler Ultrasound Machine designed for high-performance diagnostic imaging in hospitals and medical centres. With a modern ergonomic design and powerful imaging technologies, this system delivers accurate, real-time results across a variety of clinical applications—including OB/GYN, cardiology, abdominal, vascular, and musculoskeletal exams.

Equipped with advanced Doppler modes, multi-probe support, and an intuitive control panel, the K-AU6 helps physicians make faster, more confident decisions. The high-definition monitor, long-term data storage, and seamless connectivity make it ideal for high-volume clinical use in Bangladesh’s healthcare environment.

Key Features

• Model: K-AU6
• System Type: Full Digital Trolley Color Doppler Ultrasound Machine.
• Display: Equipped with a 15-inch high-resolution LED color monitor, which can be optionally upgraded to 17 inches, complemented by a 10.4-inch touch screen for enhanced user interaction.
• Imaging Modes: Supports an extensive array of imaging modalities, including B-mode, B+B, 4B, M-mode, B+M, Color Doppler, Pulsed Wave (PW), Power Doppler Imaging (PDI), Color Flow Mapping (CFM), Harmonic Imaging, 2D, Continuous Wave (CW), Tissue Doppler Imaging (TDI), Elasticity Imaging, Anatomical M-mode (AMM), Color M-mode (CMM), and advanced 3D/4D rendering.
• Probes Supported: Accommodates Convex, Linear, Transvaginal, and Micro-convex probes, featuring four activated multi-probe ports for efficient transducer management.
• Scan Depth: Capable of achieving a maximum scan depth of 320 mm.
• Image Storage: Facilitates robust image storage via internal memory, USB port connectivity, and comprehensive DICOM 3.0 support, including the retention of raw data for subsequent offline analysis.
• Operating System: Operates on an embedded Linux-based diagnostic platform, ensuring stability and dedicated performance.
• Cine Loop: Provides a 1000-frame cine loop capacity, supporting both automatic and manual playback for detailed review of dynamic studies.
• Body Markers: Incorporates over 150 adjustable body markers to assist in precise anatomical localization.
• Measurement & Calculations: Offers extensive measurement and calculation packages pertinent to various clinical applications, including Obstetrics/Gynaecology (OB/GYN), Urology, Cardiology, Abdomen, Vascular, Small Parts, Nerve blocks, Musculoskeletal (MSK), Emergency medicine, Orthopaedics, and Paediatrics.
• Connectivity: Features comprehensive connectivity options, including USB, VGA, Video Out, LAN, HDMI, and DICOM, enabling seamless data transfer and integration within clinical networks.
• Power Supply: Operates on an AC power supply ranging from 100–240V at 50/60Hz; an optional lithium battery is available, providing a minimum of 2 hours of continuous operation.
• Weight: The system, including its trolley, has an approximate weight of 60–70 kg.
• Dimensions (W×D×H): Conforms to standard trolley dimensions, equipped with mobility wheels; customization options are available upon request.
• Technologies: Integrates advanced imaging technologies such as Tissue Harmonic Imaging (THI), Speckle Reduction Imaging (SRI), Spatial Compounding Imaging (SCI), Tissue Specific Imaging (TSI), Frequency Compounding Imaging (FCI), Extended Field of View (EFov), High Resolution Flow (HR flow), and B-steer.
• PW Features: Includes automated Pulsed Wave (PW) auto trace and calculation functionalities for streamlined workflow.
• OB Features (Standard): Standard obstetric features comprise multiple pregnancies measurement, fetal growth curve analysis, and an integrated OB table.
