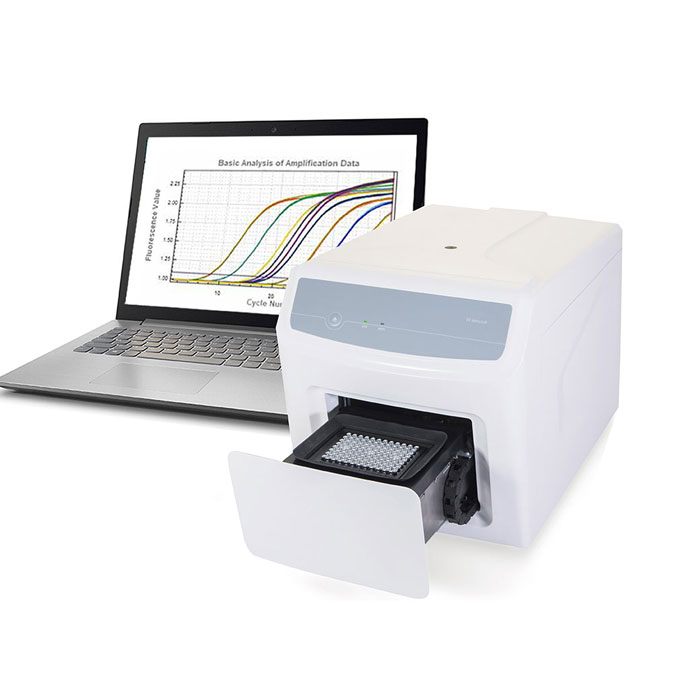

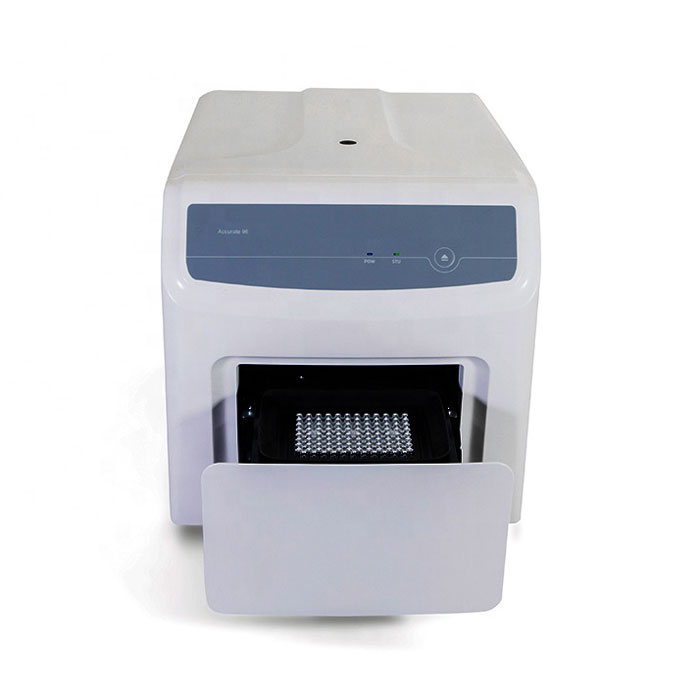

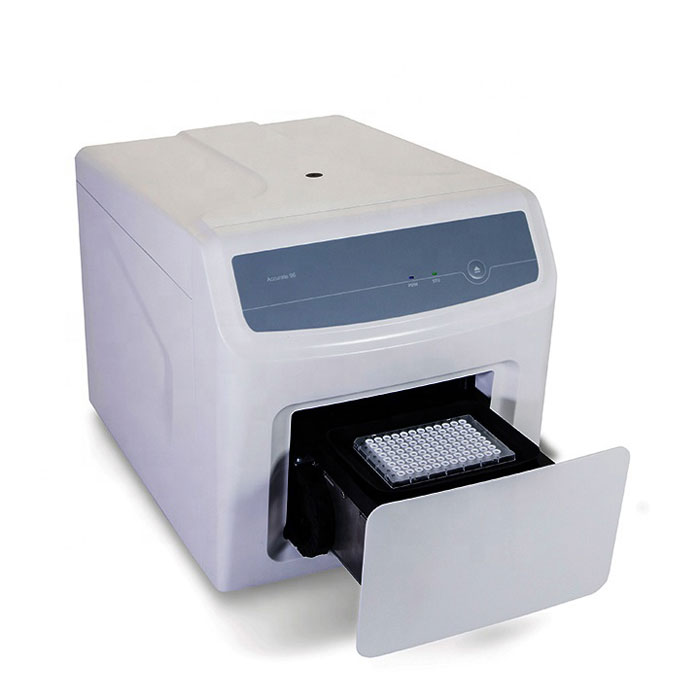

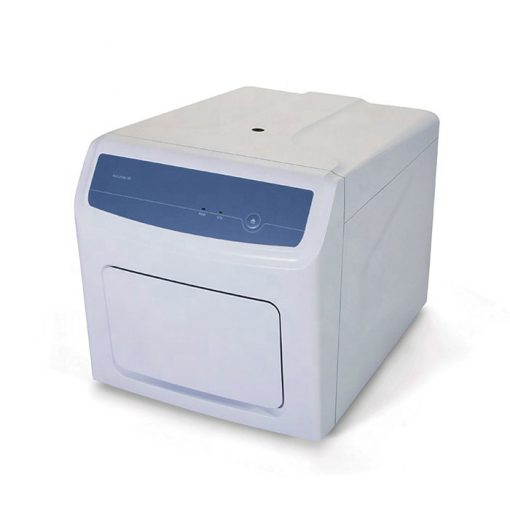

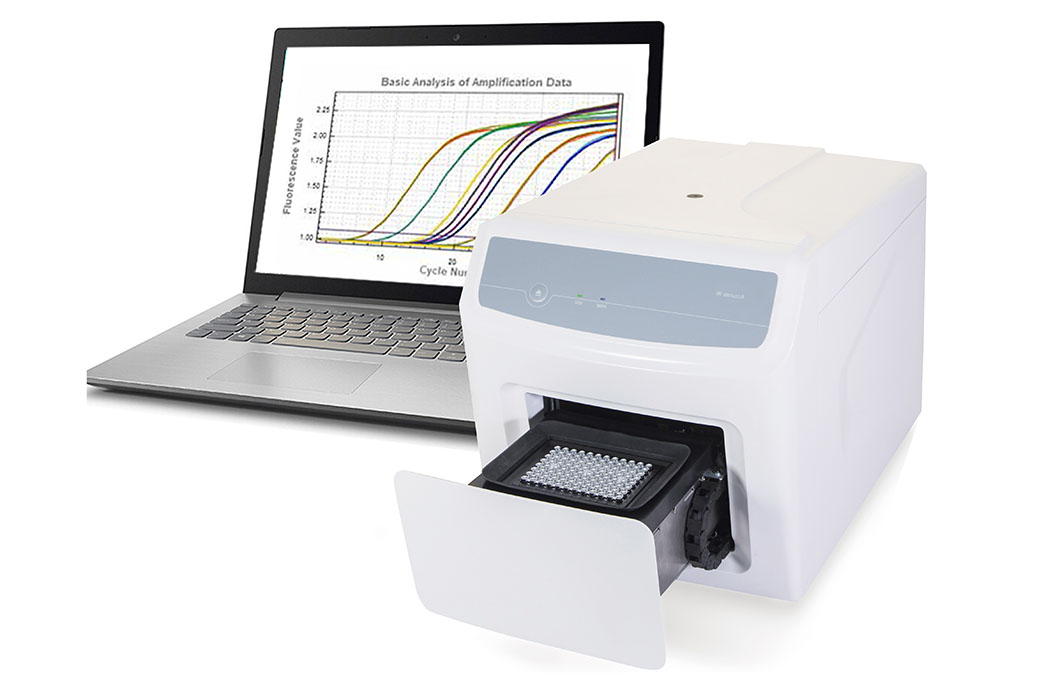

Healicom QPCR-96 Real-Time POCT PCR Analyzer
Quick Details
- Type: Genes & Life Science Equipments
- Brand Name: Healicom
- Model Number: QPCR-96
- Place of Origin: Jiangsu, China
- Instrument classification: Class II
- Warranty: 1 Year
- After-sale Service: Online technical support
- Field of application: 0.2ml PCR tubes*96, 8*12 PCR plate or 96 well plate *1
- Reaction volume: 10-50 μl
- Thermal cycle technology: Peltier
- Max. Heating/Cooling rate: 6.0° C/s
- Heating temperature range: 4 – 100 °C
Products Description
QPCR-96 Real-Time POCT PCR Polymerase Chain Reaction Analyzer System
QPCR-96 is based on global vision of product design concepts and manufacturing processes. It creatively combines Fresnel lens optical signal acquisition technology, time-resolved signal separation technology and unique temperature control technology. And it reaches international advanced level in sensitivity, multicolor crosstalk, temperature uniformity and accuracy. It supports the application of all common QPCR detection modes.safety testing, and forensic applications.
Features

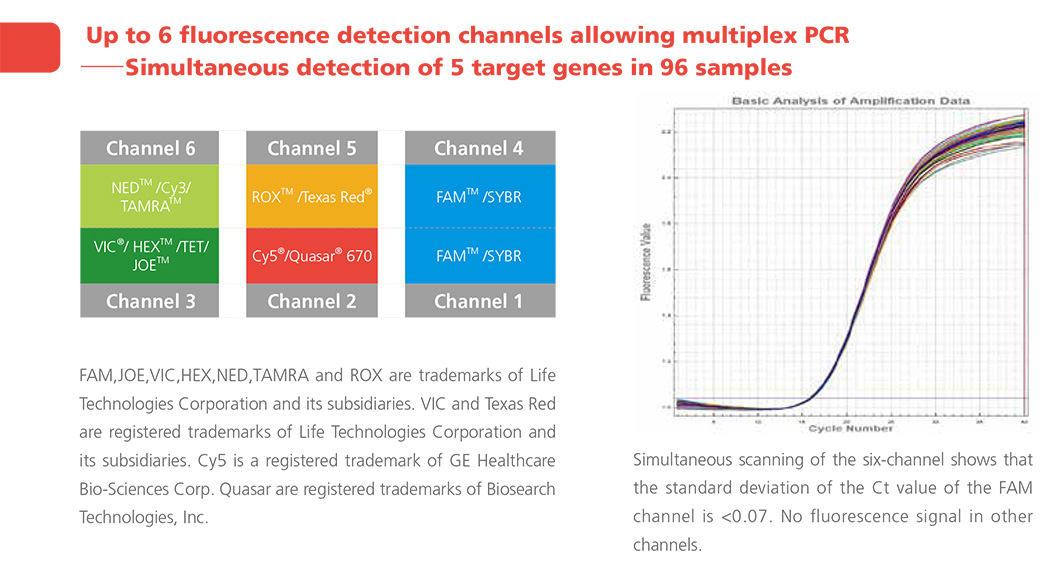

• Up to 6 fluorescence detection channels allowing multiplex PCR.

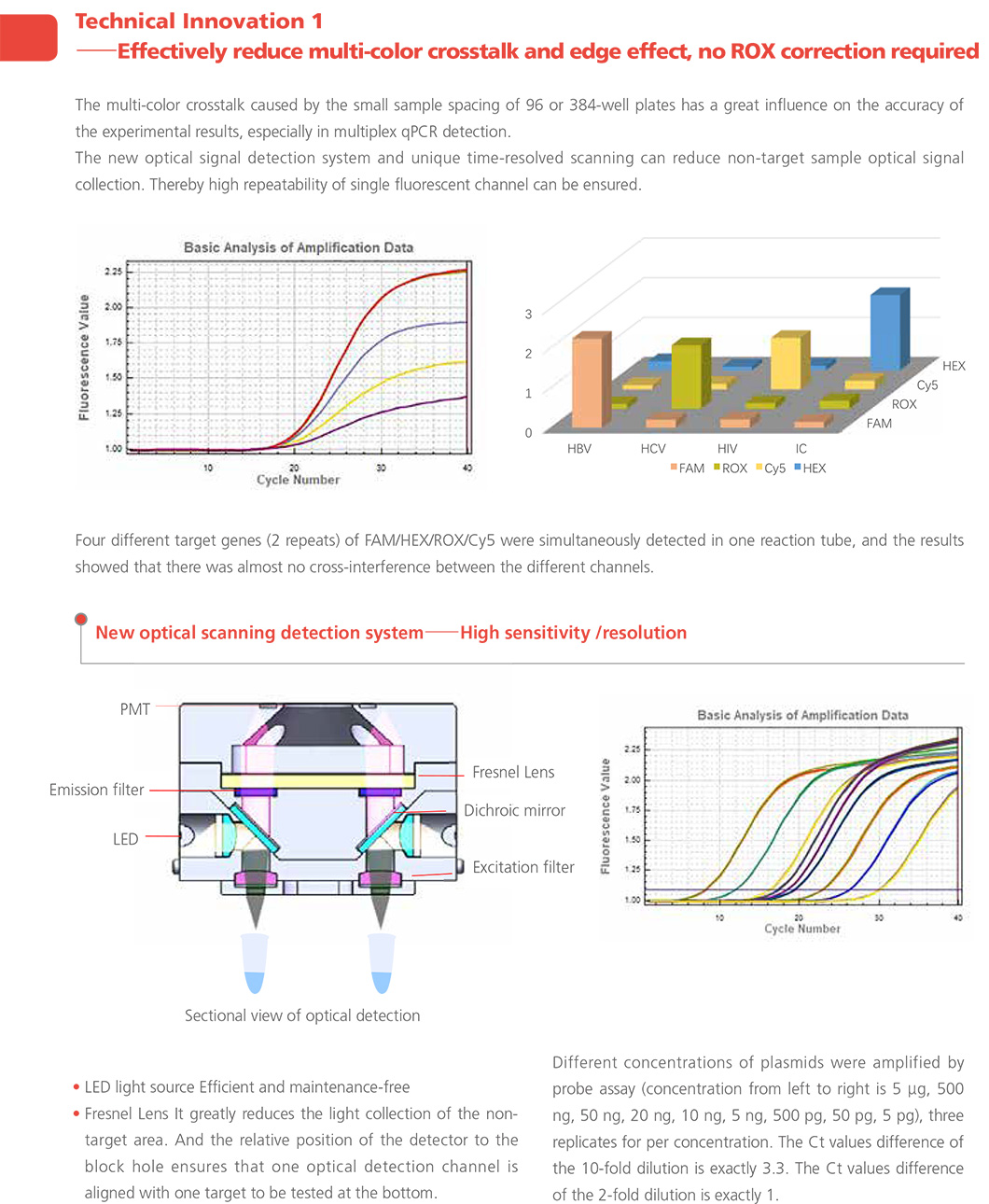

• Effectively reduce multi-color crosstalk and edge effect, no ROX correction required to reduce sample and reagent use

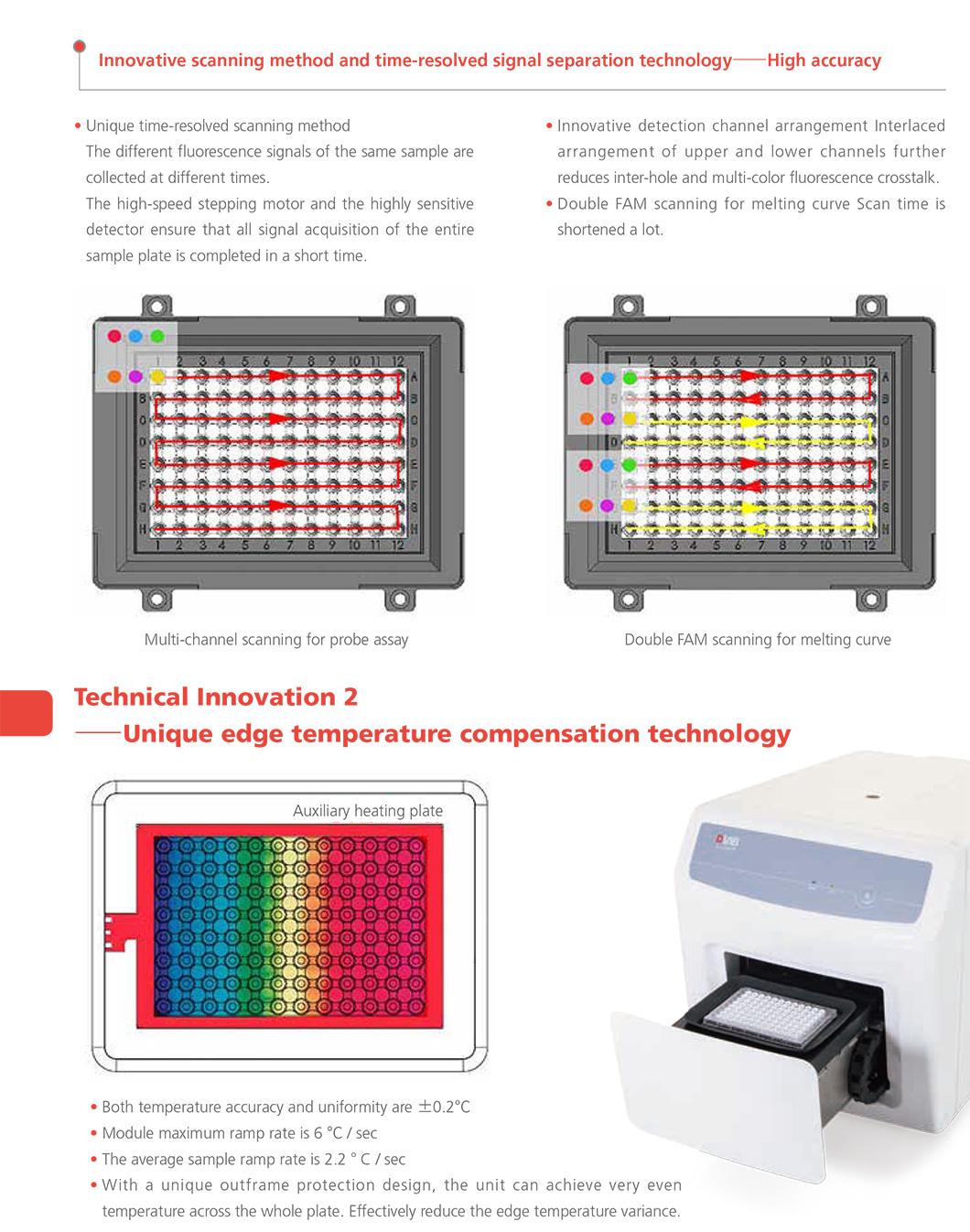

• Innovative scanning method and time-resolved signal separation technology to improve detection sensitivity

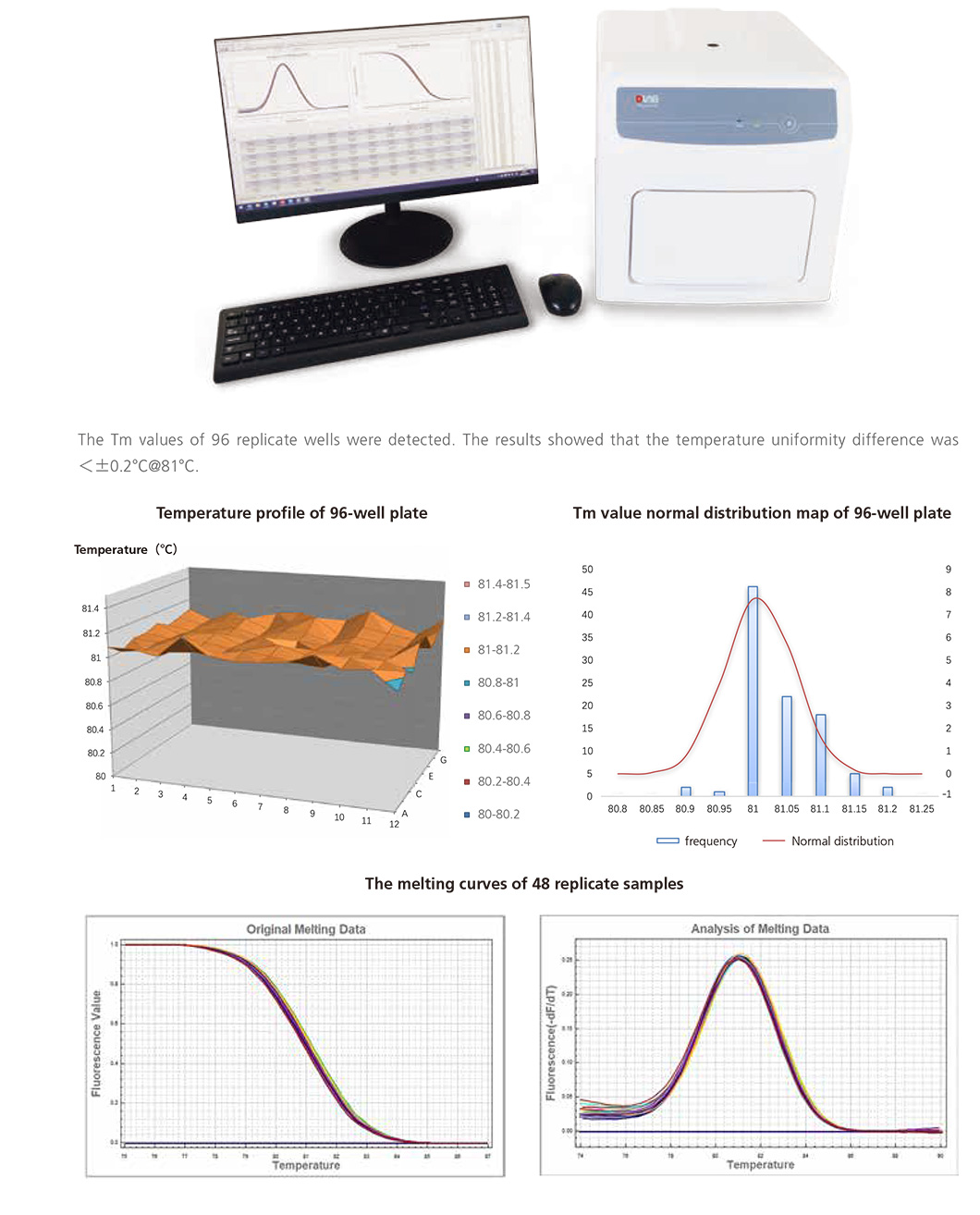

• Unique edge temperature compensation technology to minimize “edge effect”
• User-friendly software
• Innovative technology with long-lastig LED light provides reliability results
• Effectively reduce multi-color crosstalk and edge effect, no ROX correction required to reduce sample and reagent use
• Innovative scanning method and time-resolved signal separation technology to improve detection sensitivity
• Unique edge temperature compensation technology to minimize “edge effect”
• User-friendly software
• Innovative technology with long-lastig LED light provides reliability results
Technical Specifications
|
Temperature control system
|
|
|
Sample capacity
|
0.2ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1
|
|
Reaction volume
|
10-50 μl
|
|
Thermal cycle technology
|
Peltier
|
|
Max. Heating/Cooling rate
|
6.0° C/s
|
|
Heating temperature range
|
4 – 100 °C
|
|
Temperature accuracy
|
± 0.2°C
|
|
Temperature uniformity
|
±0.2℃ @60℃ , ±0.2℃ @95℃
|
|
Temperature gradient setting range
|
30 – 100°C
|
|
Temperature gradient difference setting range
|
1 – 36 °C
|
|
Detection system
|
|
|
Excitation light source
|
4/6 monochrome high efficiency LEDs
|
|
Detection device
|
PMT
|
|
Detection mode
|
Time-resolved signal separating technology
|
|
Excitation/detection wavelength range
|
455-650nm/510-715nm
|
|
Fluorescent channels
|
4/6 channels
|
|
Supported dye
|
FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ
|
|
Sensitivity
|
Single copy gene
|
|
Resolution
|
1.33 folds copy number difference can be distinguished in single-plex qPCR
|
|
Dynamic range
|
10 orders of magnitude copies
|
