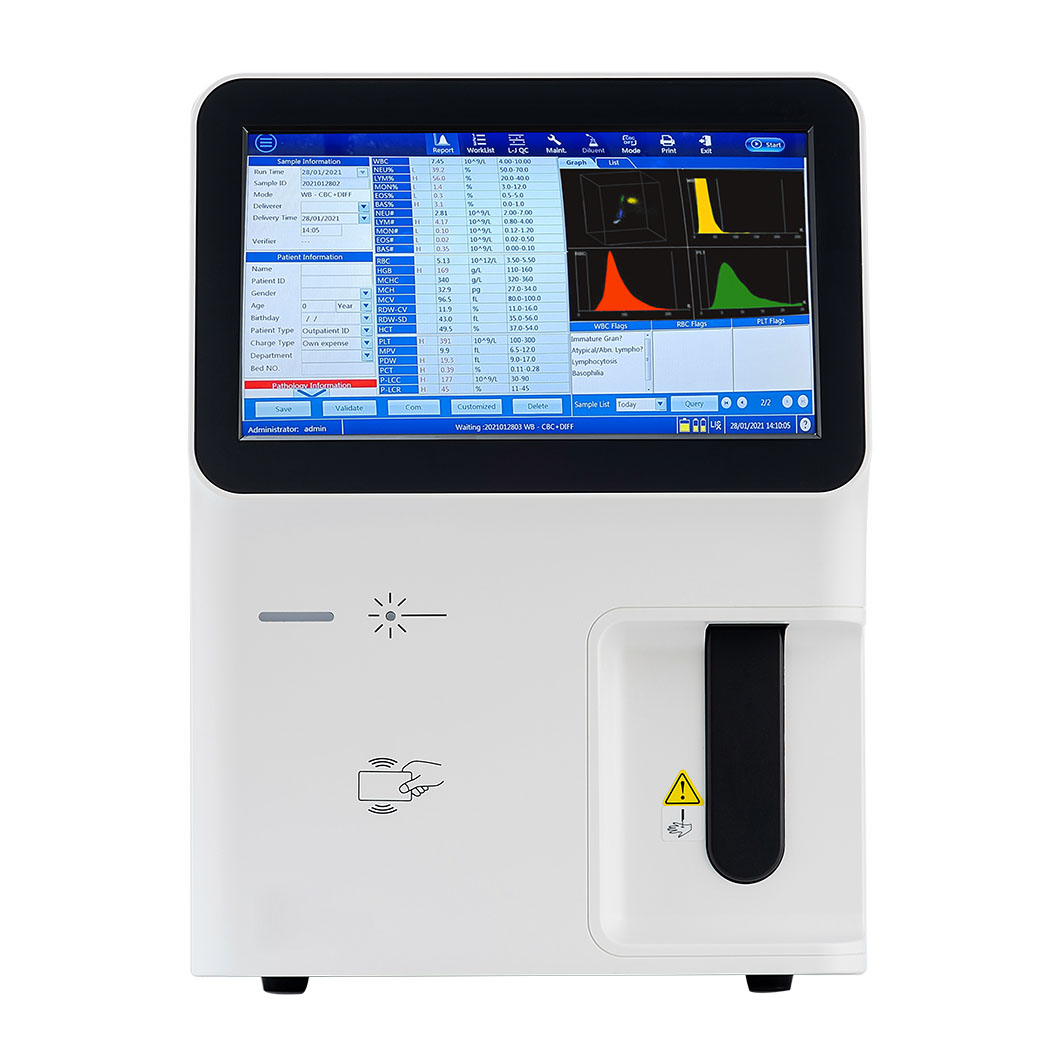

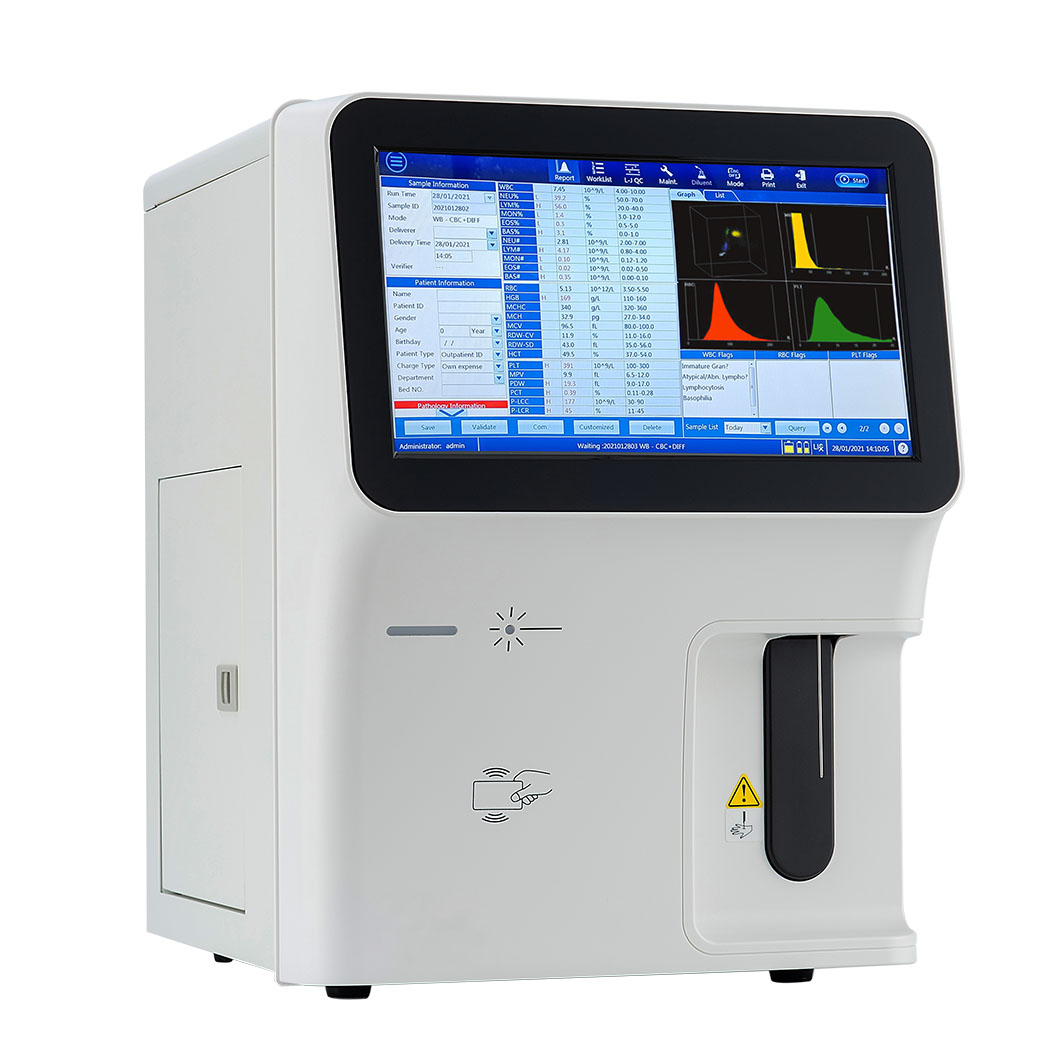

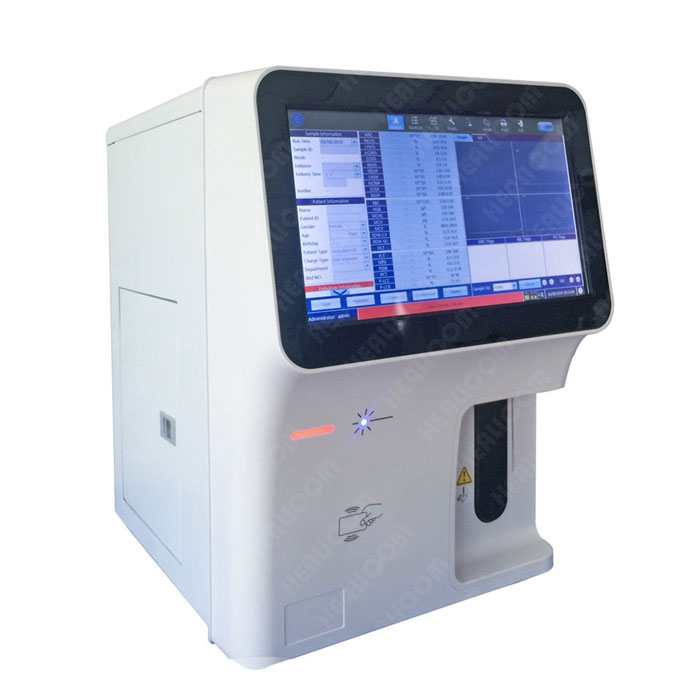

Healicom HMA-7518 5 Part Diff Clinical Auto Blood Hematology Analyzer
Quick Details
- Type: Blood Analysis SYstem
- Brand Name: Healicom
- Model Number: HMA-7518
- Place of Origin: Jiangsu, China
- Instrument classification: Class II
- Warranty: 1 Year
- After-sale Service: Online technical support
- Parameter: 60 samples/hour
Features • 5-part blood cell counter • 25 parameters 3 histogram 1 3D scattergram • 2 test mode • 60 samples/hour • 14” large touch screen • External USB printer • Support LIS system • Stable, durable and economical
Performance High Stability & Accuracy • Advanced Sweep-Flow technology guarantees low PLT samples counted precisely. • Combined with optical and inpedance method to make the BASO measurement more reliabce and stable • Creative SMART-FLOW fluidic technology to makes SMART-II with good reliability and free of maintenance. User-friendly System • 14 inch touch screen with high resolution and sensitivity, can be operated by wearing gloves • ONE touch to start the test, • ONE click to remove error, • ONE screen for most of the daily operation Intelligent turn off power switch. Cost-effective and Attractive Design • Low running cost, only three reagents needed for the test • Low reagent consumption for single test • Low volume sample consumption CBC DIFF mode:≤20ul, CBC mode:≤10ul, ideal choice for pediatrics and geriatrics
|
Principles
|
• Tri-angle Laser scatter
• 3D Scattergram analysis • Flow Cytometry method • Cyanide free reagent for HGB test • Impedance method for RBC and PLT counting |
|
Parameters
|
• 25 Reportable parameters
WBC, RBC HGB, HCT, MCV MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P_LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# • 1 3D Scattergram • 3 Histograms(WBC/BASO,RBC, PLT) • 4 Research parameter: ALY%, ALY#, IG%, IG# |
|
Test Mode
|
• CBC mode, CBC DIFF mode
• Venous whole blood, Capillary whole blood and Prediluted |
|
Throughput
|
60 samples per hour
|
|
Sample Volume
|
CBC DIFF mode:≤20ul
CBC mode:≤10ul |
|
Display
|

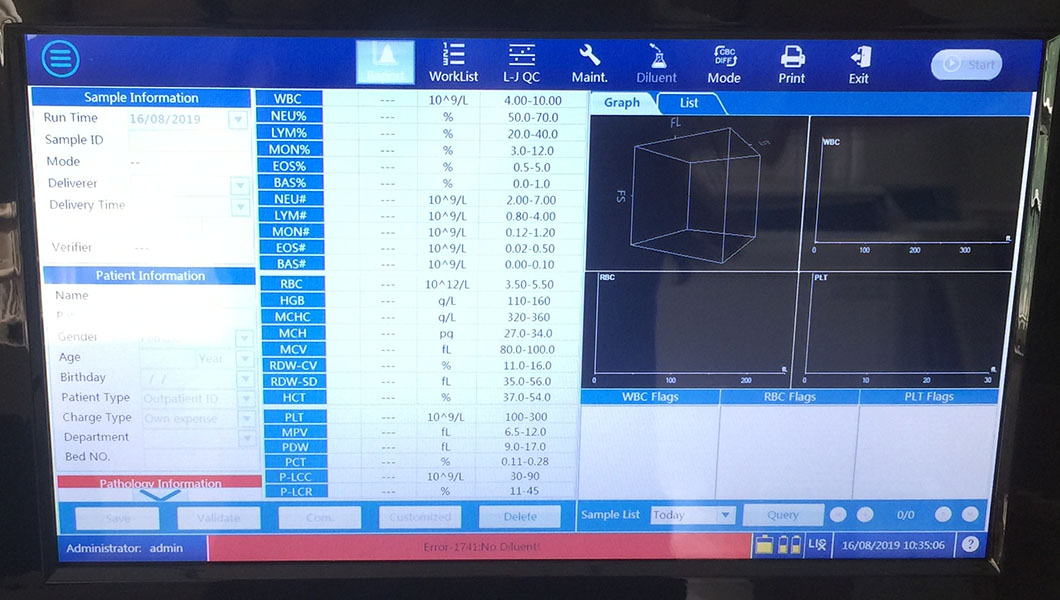

14 inch touch screen, resolution 1366*768
|
|
Printout
|
Support various external USB printers, printout formats user definable
|
|
Communication
|
Bi-direction LIS, support HL7 protocol
Internal RFID reader |
|
Interface
|
1 LAN port, 4 USB ports
|
|
Storage
|
Up to 10.0000 results (including histogram, scarttergram, patient information)
|
|
Working Conditions
|
Temperature:10-30C
Humidity: 20% – 85% Air pressure: 70~106kPa Working latitude:≤3500m Power supply: AC100-240V, 50/60Hz |
|
Dimension
|
480x375x517mm(L*W*H)
|
|
Weight
|
36Kg(net)
|
