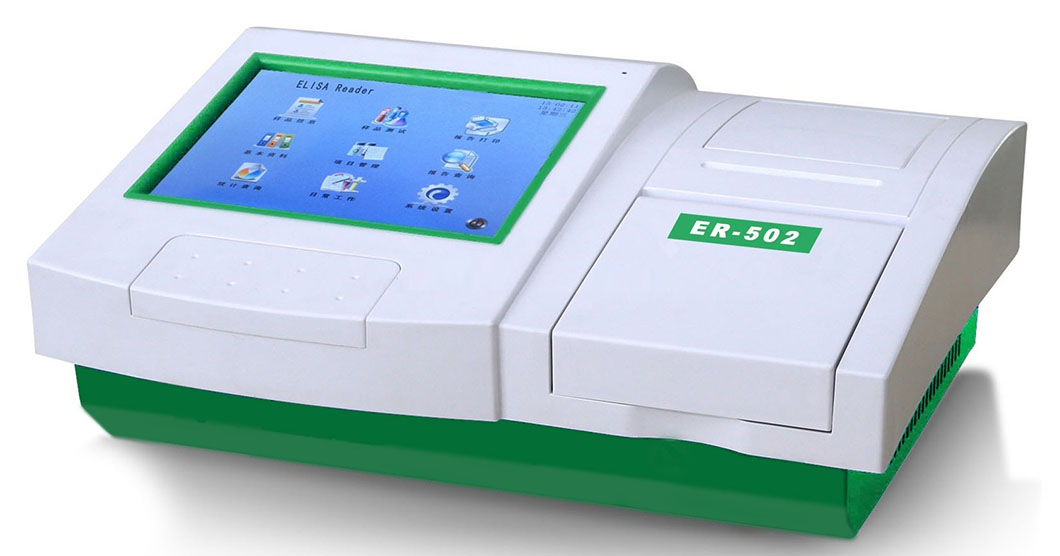

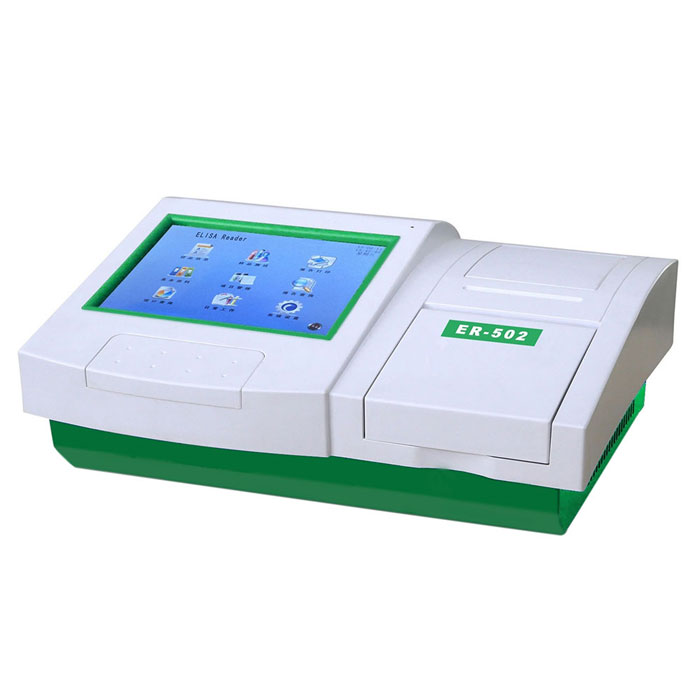

Healicom ER-502 Portable Elisa Microplate Reader
Quick Details
- Brand Name: Healicom
- Model Number: ER-502
- Place of Origin: Jiangsu, China
- Instrument classification: Class II
- Warranty: 1 Year
- After-sale Service: Online technical support
- Measuring System: Optical system with 8 channels
- Photo Detector: Silicon photodiode
- Light Source: Controlled tungsten halogen lamp
- Wavelength Range: 330~1100nm
- Standard Filters: 405nm, 450nm, 492nm, 630nm
Products Description
ER-502 Portable Elisa Microplate Reader
ER-502 is an eight-channel ELISA reader with the most sophisticated technology, high quality, high reliability and easy to
operate.
operate.
Features:
• Graphical operating interface, menu designed for convenient use
• High brightness and large size LED, with touch screen input
• Flexible plate layout with Blanks, Standards, Samples, Reference, QC in one screen
• Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas
• Proven Optical system with 8channels optical fiber scanning, auto plate centering system positions the center of the cell accurately
• Performing 12 different tests just in one plate
• Multi-forms in result output including patient comprehensive report
• Auto lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost
• Easy connect to PC, comprehensive functions with Found Workstation PC software
• High brightness and large size LED, with touch screen input
• Flexible plate layout with Blanks, Standards, Samples, Reference, QC in one screen
• Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas
• Proven Optical system with 8channels optical fiber scanning, auto plate centering system positions the center of the cell accurately
• Performing 12 different tests just in one plate
• Multi-forms in result output including patient comprehensive report
• Auto lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost
• Easy connect to PC, comprehensive functions with Found Workstation PC software
Technical Specifications
|
Model
|
ER502
|
|
Measuring System
|
Optical system with 8 channels
|
|
Photo Detector
|
Silicon photodiode
|
|
Light Source
|
Controlled tungsten halogen lamp
|
|
Wavelength Range
|
330~1100nm
|
|
Standard Filters
|
405nm, 450nm, 492nm, 630nm,
|
|
Additional Filters
|
on request, filter wheel for up to 8 filters
|
|
Indication Range
|
0.000 – 4.000OD
|
|
Resolution
|
0.001OD
|
|
Accuracy
|
±1.0% at 1.0OD, 450nm
|
|
Repeatability
|
±1.0% at 1.0OD, 450nm
|
|
Shaking
|
Linear shaking, 3 speeds
|
|
Display
|
10″4 LED, Resolution 1024*600, touch screen
|
|
Interface Connection
|
DVI, VGA, Network Interface, USB audio Interface, USB,RS232
|
|
Power Supply
|
100~ 240V, 50~60 Hz
|
|
Dimensions
|
460*350*197mm
|
|
Weight
|
10kgs
|
