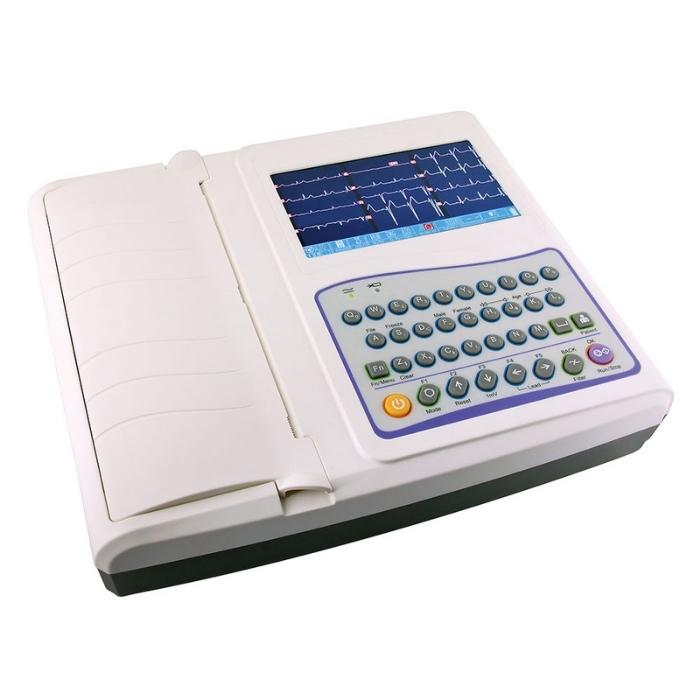

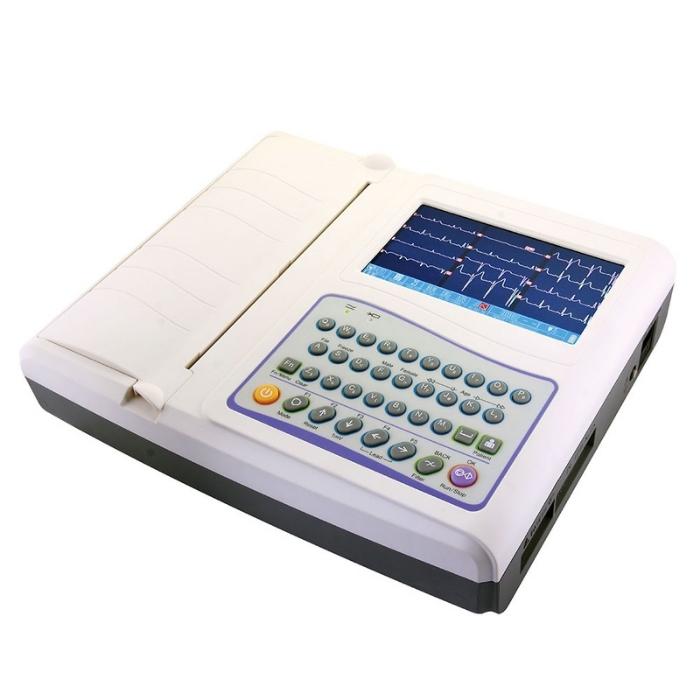

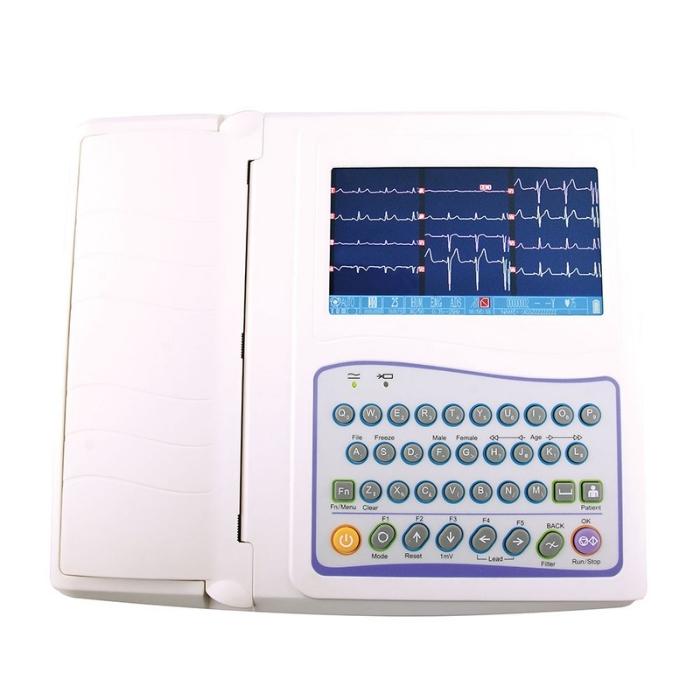

HE-12A 12 Channel Digital Electrocardiogram ECG Machine
৳ 145,000.00
- Brand Name: Healicom
- Model Number: HE-12A
- Instrument classification: Class II
- Lead: Standard 12 Leads
- Work Mode: Man / Auto/Analysis/Storage
- Sensitivity: 5, 10, 20, 40, Auto (mm/Mv)
- Safety standard: None
- Lead Acquisition: 12bit/1000Hz (Synchronously 12 Leads)
- Frequency Response: 0.05-160Hz ( -3dB )
- Quality Certification: CE
Call for details 01842-756014
HE-12A 12 Channel Digital Electrocardiogram ECG Machine
Specification
- Accurate pulse pace identification and automatic analysis function
- Working modes: Manual / Auto / Analysis / Storage
- 215mm, 12 channel format recording
- 800×480 graphic7 inch color LCD screen
- 12 leads synchronously acquisition and display
- Alphanumeric keyboard for operation and input
- 250 patient cases save and replay (extendable)
- Adapt to 110-230V, 50/60Hz power supply
- Built-in rechargeable Li-ion battery
- USB / Rs232 interface. Can be connected to Network, USB Disk, Printer and Code Scanner . ECG software is optional
- High resolution thermal printing available for 215mm roll paper or 210mm*140mm Z-fold paper
Technical Specifications
|
Lead
|
Standard 12 leads
|
Time constant
|
≥3.2s
|
|
lead acquisition
|
12bit/1000Hz(synchronously 12 leads)
|
Frequency response
|
0.05~160Hz(-3db)
|
|
Work mode
|
Man / Auto/Analysis/Storage
|
Noise level
|
<15μVp-p
|
|
Filter
|
AC Filter : 50Hz / 60Hz
EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive) |
Inter-channel Interference
|
≤0.5mm
|
|
CMMR
|
≥100dB (with AC FILTER)
|
Sensitivity
|
5,10,20, 40, Auto (mm/mV)
|
|
Input circuit
|
Floating; Protection circuit against
Defibrillator effect |
Recording mode
|
3ch ,6ch,6ch ,12ch
Default Man. Mode is 3ch format Default Auto. Mode is 12ch format |
|
Input Impedance
|
≥50MΩ
|
Paper speed
|
6.25,12.5,25,50mm/s(±3%)
|
|
Input circuit current
|
≤0.05μA
|
Paper
|
215 mm * 20m Roll paper
|
|
Patient current leakage
|
<10μA
|
Communication
|
RS232/ USB port
|
|
Calibrating voltage
|
1mV±2%
|
Power Supply
|
AC 110-230V(±10%), 50/60Hz(±1Hz), 60VA
DC Built-in rechargeable battery, 14.4V(4400mmAh) |
|
Voltage tolerance
|
≥±500mV
|
Dimension/Weight
|
330mm×270mm×72mm/3.8Kg
|
Main Accessories and Packing List
