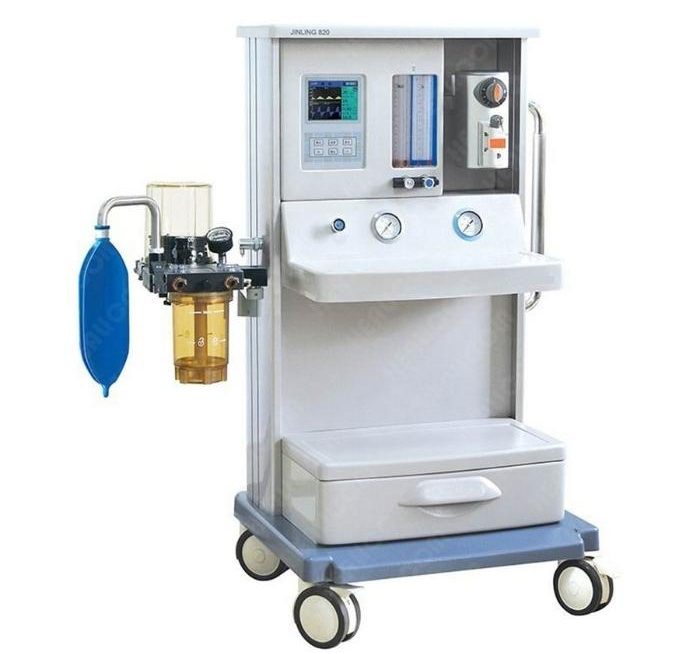

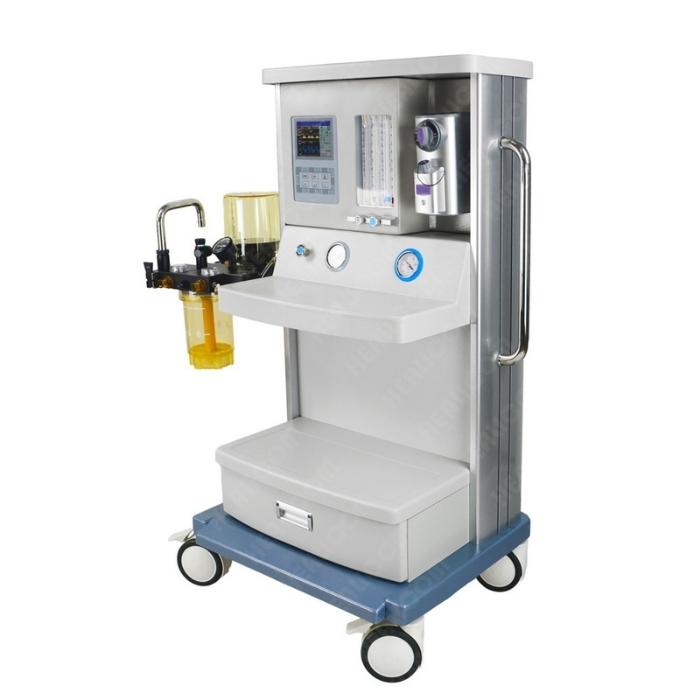

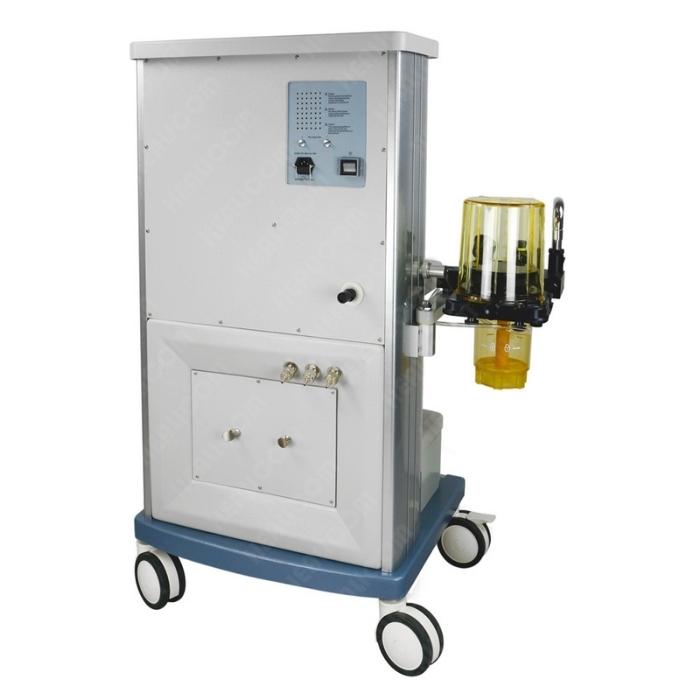

HA-3600 Trolley Anesthesia Machine Surgical Equipment
৳ 746,000.00
- Product name: Anethesia Machine
- Model Number: HA-3600
- Brand Name: Healicom
- Quality Certification: ce
- Safety standard: None
- Suitable: Adult and Pediatric
- Respiration Frequency: 1~100bpm
- Oxygen Flush: 25~75 L / Min
- Screen: 5.7″ LCD display screen
- I/E Ratio: 8:1~1:10
- Tidal Volume: 0~1500mL
- PEEP: 0~2.0KPa
Call for details 01842-756014
Surgical Equipment HA-3300B Trolley Anesthesia Machine
Product Features:
- Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect.
- High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%.
- Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor.
- Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia.
- Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C.
|
Technical Specifications
|
|
|
Model
|
HA-3600
|
|
Display
|
5.7 inch TFT display
|
|
Flowmeter Range
|
O2: 0.1-10L/min, N2O: 0.1-10L/min
|
|
Ventilation Mode
|
IPPV, SIPPV, VCV, IMV, SIMV, MANUAL
|
|
Back-up Power Supply
|
At least 4 hours
|
|
Tidal Volume
|
Adjustable range: 50-1500ml
Display range: 0-2000ml |
|
Respiratory Rate
|
1-100bpm
|
|
Inspiratory/Expiratory (I:E) Ratio
|
8:1-1:10 (capable of inverse ratio ventilation)
|
|
PEEP Range
|
0-20cmH2O (electronically controlled)
|
|
Inspiratory Pressure Trigger Range
|
.-10-10cmH2O (electronically controlled)
|
|
SIGH
|
1 sigh breath in every 80-120 breaths
|
|
SIMV Rate
|
1-20bpm
|
|
Inspiratory Plateau
|
0-1 second
|
|
Vaporizer Concentration Ranges
|
0-5%
|
|
Vaporizer Slots
|
Single PA-I type slot
|
