Oxygen Analyzer Anesthesia Machine Surgical Equipment-HA-3200A
৳ 545,000.00
- Type: Anesthesia Equipments & Accessories
- Brand Name: Healicom
- Model Number: HA-3200A
- Quality Certification: ce
- Safety standard: GB/T18830-2009
- Screen: LED display screen
- Ptr: -10~10hPa
- Flow meter: O2:0.1~10L/Min, N2O:0.1~10L/Min
- Safety valve: <12.5 kPa
- Oxygen Flush: 25~75 L/min
- Vaporizer: Enflurane / Isoflurane / Sevoflurane
- Gas requirement: Medical oxygen and nitrous oxide
- Pressure limit range: 0 ~ 6.0 kPa
- Respiratory Rate: 4~40bpm
Call for details 01842-756014

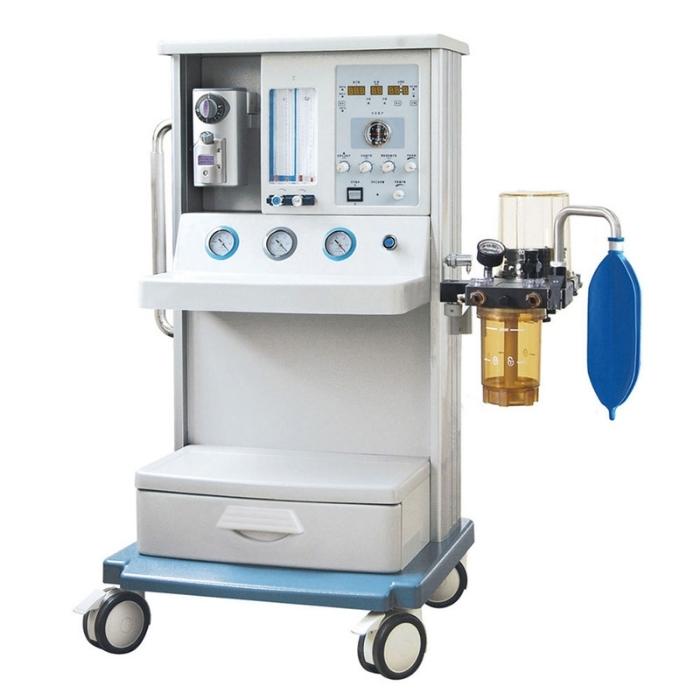

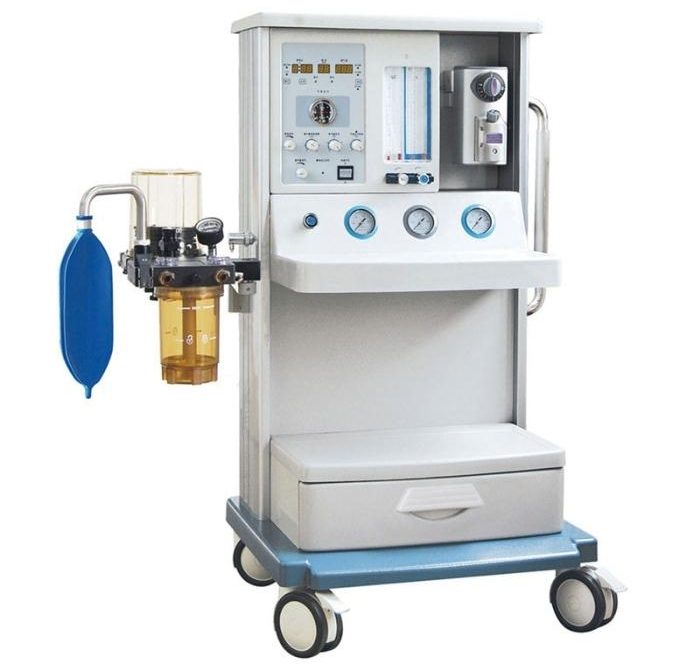

Oxygen Analyzer Anesthesia Machine
Technical Specifications of Oxygen Analyzer Anesthesia Machine
|
Ventilator
|
|
|
Drive method
|
Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
|
|
Tidal volume
|
Adjustable range: 50-1500 ml, Display range: 0-2000 ml
|
|
Respiratory rate
|
1-99 bpm
|
|
Operating modes
|
Manual, Standby, Intermittent Positive Pressure Ventilation (IPPV), Synchronized Intermittent Positive Pressure Ventilation
(SIPPV), Intermittent Mandatory Ventilation (IMV), Synchronized Intermittent Mandatory Ventilation (SIMV) |
|
Pressure range
|
5-60 hPa
|
|
Pressure trigger
|
-10-10 cmH20 (electronically controlled)
|
|
SIMV Rate
|
1-20 bpm
|
|
Inspiration/Expiration ratio (:E)
|
4:1-1:10 (capable of inverse ratio ventilation)
|
|
Sigh function
|
1 sigh breath in every 80-160 breaths
|
|
Gas System
|
|
|
Flowmeter
|
O2: 0.1-10 Lmin, N2O: 0.1-10 L/min
|
|
Fresh-gas flow
|
0-10 L/min
|
|
Gas supply
|
O2, N2O: 0.32-0.6 Mpa
|
|
O2 flush
|
25-75 L/min
|
|
Anesthesia Gas Scavenging System (AGSS)
|
Optional
|
|
Other Specifications
|
|
|
Monitoring
|
Monitorable parameters: Minute Volume (MV), Tidal Volume (VT), breathing frequency, peak pressure, spontaneous inspiration rate,
airway resistance, lung compliance & power supply |
|
Alarm
|
Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure & more, also features a alarm query
function |
|

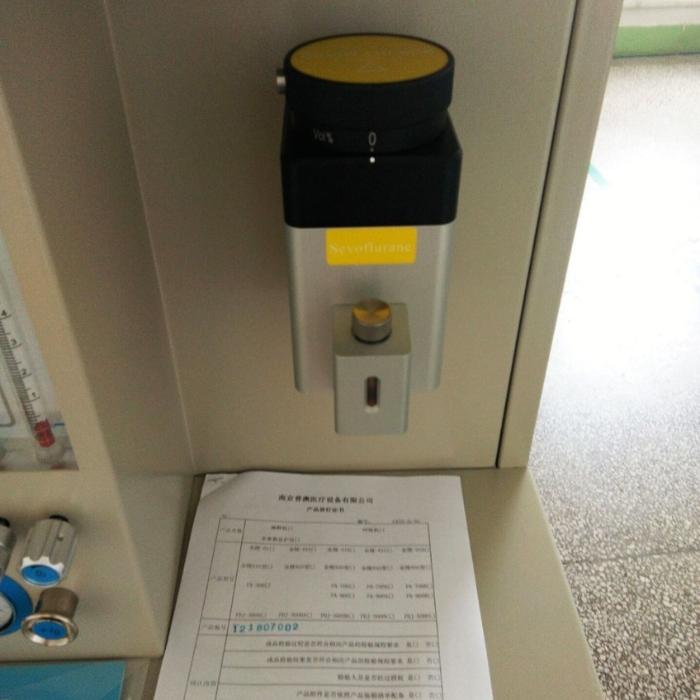

Vaporizers
|
1 PA series (Selectatec compatible) vaporizer mount
|
|
Vaporizer concentration
|
0-5 %
|
|

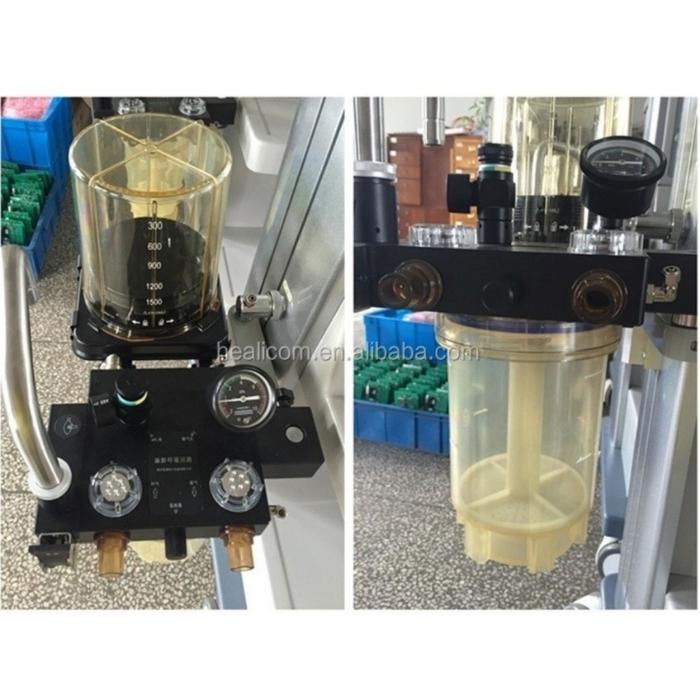

Absorber volume
|
1.5L
|
The Oxygen Analyzer Anesthesia Machine is a product designed to monitor the level of oxygen in the air to ensure that it is at the right level for patients who are on the machine. The machine is designed to have a high sensitivity to oxygen levels, so that it can monitor changes in oxygen levels quickly and efficiently. The machine also has a user-friendly interface that allows for quick and easy monitoring of the oxygen levels.
