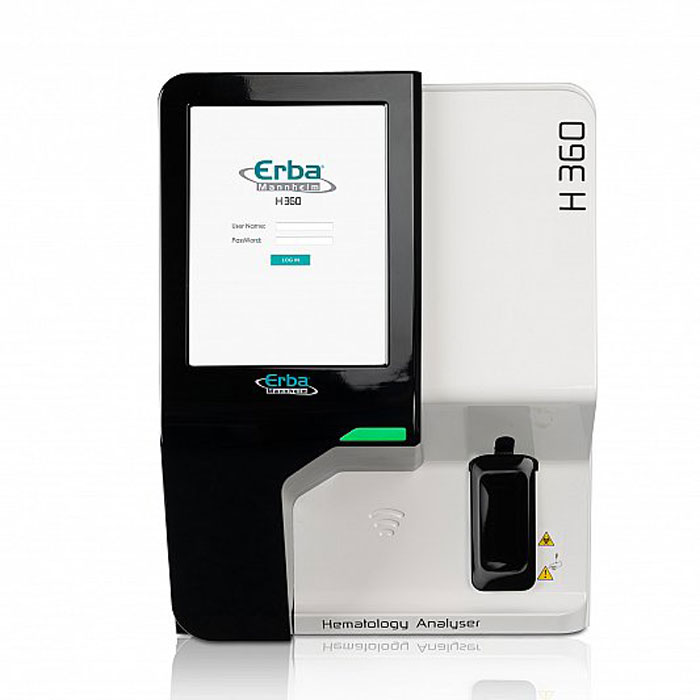

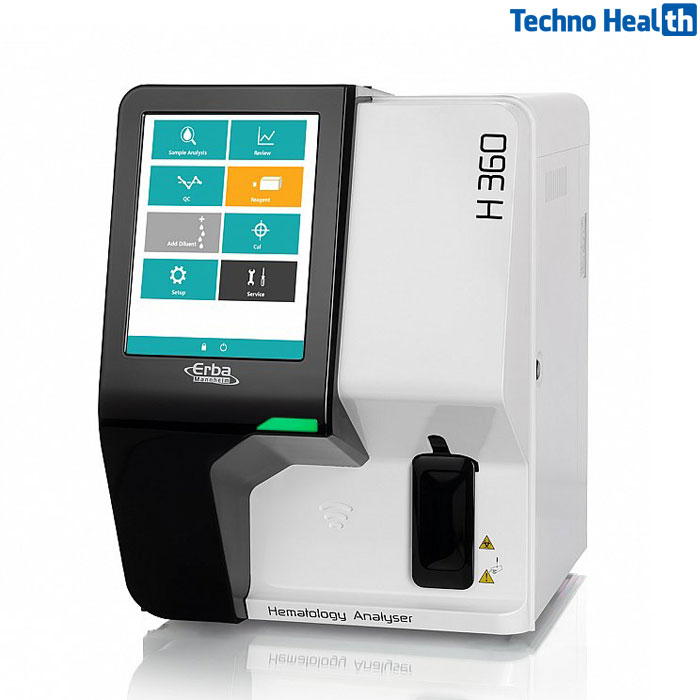

Transasia Hematology Analyzer – H 360 – Automatic 3-Part differential hematology analyzer

Transasia Hematology Analyzer

Product Description

Automated 3-Part Differential Analyser

Download product catalog

Features:

• 22 Reportable parameters including P-LCC, P-LCR
• Cyanide-free reagent for Haemoglobin test
• 9 µl sample volume
• Throughput 60 samples/ hr
• 3 counting modes -Whole blood, Capillary and pre-dilute
• Large storage capacity of 50000 samples
• Real-time Inventory Management System
• Bidirectional interfacing
• The large colored LCD touch screen of 10.4 inch

Product Applications: CBC Analysis

Technical Specification

Model Type:
Whole Blood, Predilute, Capillary
Total Parameters:
22 Parameters including CBC: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PCT, PDW-CV, PDW-SD, P-LCR, P-LCC. 3 Part Diff: Lymph % & #, Mid % & #, Gran% & #
Principle of measurement:
RBC/ PLT/ WBC/ DIFF: Electrical Impedance
Hb: Cyanide Free Colorimetry
MCV: Measured
HCT: Calculated
Histograms:
3 (WBC/RBC/PLT)
Sample Volume:
Whole Blood: 9 µL
Pre- diluted: 20 µL
Capillary: 20 µL
Linearity Range:
WBC : 0 – 300 (x 103/µL)
RBC: 0.00 – 8.50 (x 106/µL)
Hb : 0 – 25.0 (g/dL)
HCT : 0 – 67 (%)
PLT : 0 – 3000 (x 103/µL)
Calibrator:
Elite H Cal
Tri-level Controls:
Elite H3 CON L, N, H
Open Vial Stability at 2-8˚C:
16 Days
Throughput:
60 Tests/Hr
Sample Bar Code Reader:
For reading sample bar codes
Quality Control:
500 files with L-J graph
X-Bar Analysis
Data Storage:
50,000 Results with Graphs
Dimension (mm):
364x477x417
Weight(Kg):
25
Reagents:
Erba H 360 Dil
Erba H 360 Lyse
Elite H Clean
Interfaces:
4 USB ports (For connecting external devices including external printer) 1 LAN Port (HL 7, TCP/IP; LIS connectivity)
Operating Environment Temperature:
15-40˚C
Humidity:
30-90%
Power Requirement:
A.C.100-240V with a built-in voltage stabilizer
50/60Hz, 200VA
