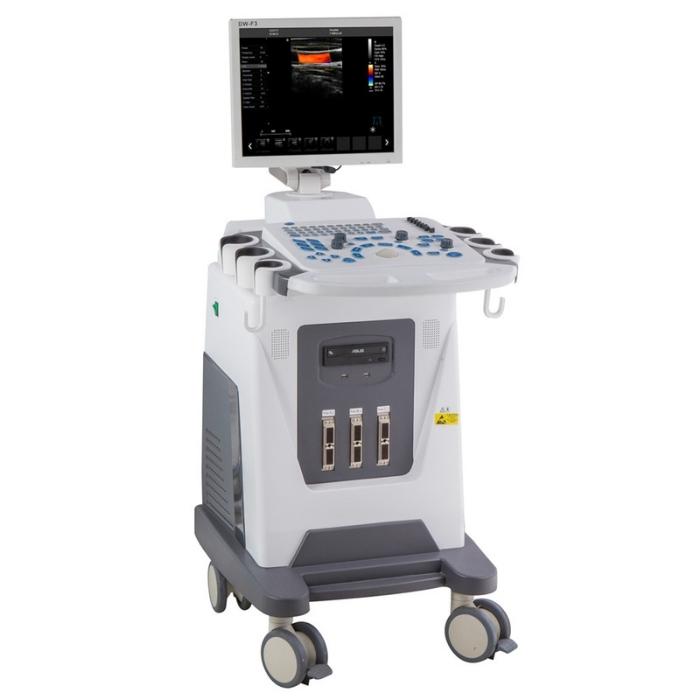

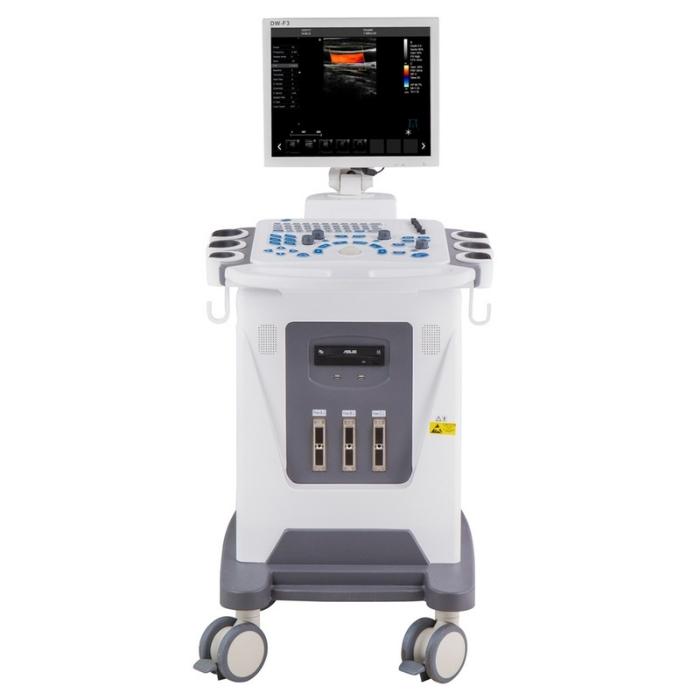

Healicom THUC-600 Mobile Color Doppler Ultrasound Scanner
৳ 870,000.00
- 15 inch LCD display
- Depth range: 126-320mm
- Built-in 60G solid state drive, External USB storage.
- Probe automatic freeze protection to extend the life of the probe.
- Rich clinical measurement software, apply to various department.
- Display mode: B mode, C mode, PW mode, CW mode, B/C, B/C/PW, B/PW.
- Probe Optional: Convex probe, micro-convex probe, trans-vaginal probe, linear probe, trans-rectal probe.
Call for details 01842-756014
HUC-600 Hot Sale Color Doppler Trolley Ultrasound System for Hospital Clinical Diagnosis
Main Features:
- 15 inch LCD display
- Depth range: 126-320mm
- Built-in 60G solid state drive, External USB storage.
- Probe automatic freeze protection to extend the life of the probe.
- Rich clinical measurement software, apply to various department.
- Display mode: B mode, C mode, PW mode, CW mode, B/C, B/C/PW, B/PW.
- Probe Optional: Convex probe, micro-convex probe, trans-vaginal probe, linear probe, trans-rectal probe.
Comprehensive clinical application solutions:
- Capture peak blood flow
- Three real-time synchronization
- A key optimization
- Pulse Doppler
- Energy Doppler
- Tissue harmonic imaging
- Quick user-defined settings: To meet the individual needs of different doctors and improve work efficiency
- All-in-One Clipboard: The saved image is displayed at the bottom of the screen, which can be directly see or deleted
|
Technical Specifications
|
|
|
Application
|
Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc
|
|
Displaying mode
|
B, 2B, 4B, left&right, B|M, B|D, PW, M, B mode, part zoom, B|C|D, B|C|M, B|C, duplex, PW, CFM, CPA
|
|
Signal processing
|
Full-digital beam forming, dynamic filter, orthogonal demodulating, space-time filter, dynamic real-time receiving focusing, RDA, DRA, spectral processing, CFM processing
|
|
Image processing
|
THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256
grey scale, scanning angle/width control, composit processing of tissue and blood flow image |
|
General measurement
|
B mode: distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram, cross-section diagram M mode: cardiac rate, time, distance, speed.
|
|
Measurement & report packages
|
GYN(four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.
|
|
Standard configuration
|
Main unit

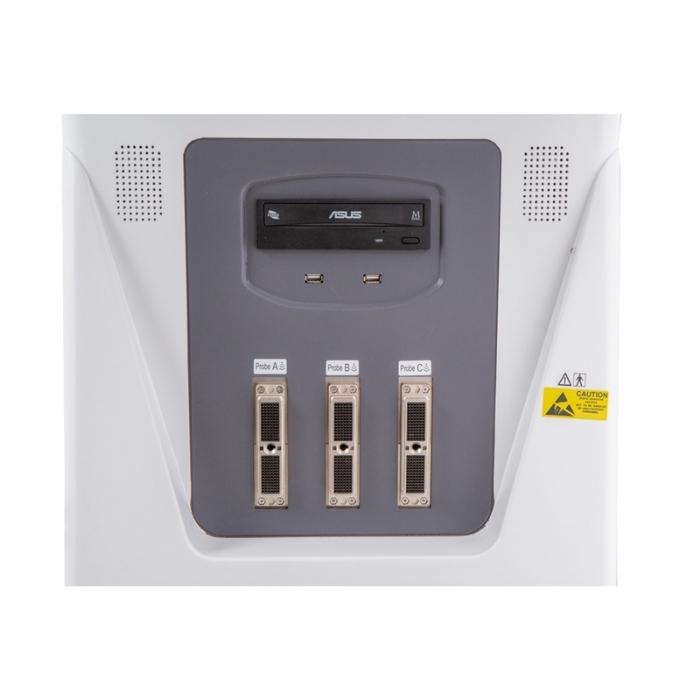

3.5MHz convex probe 15″ LED monitor three probe connectors 2 USB ports DICOM3.0 |
