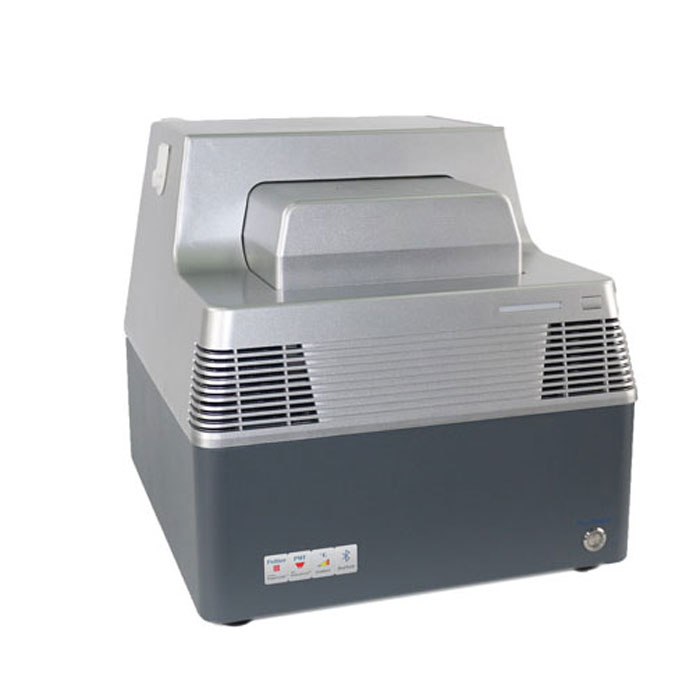

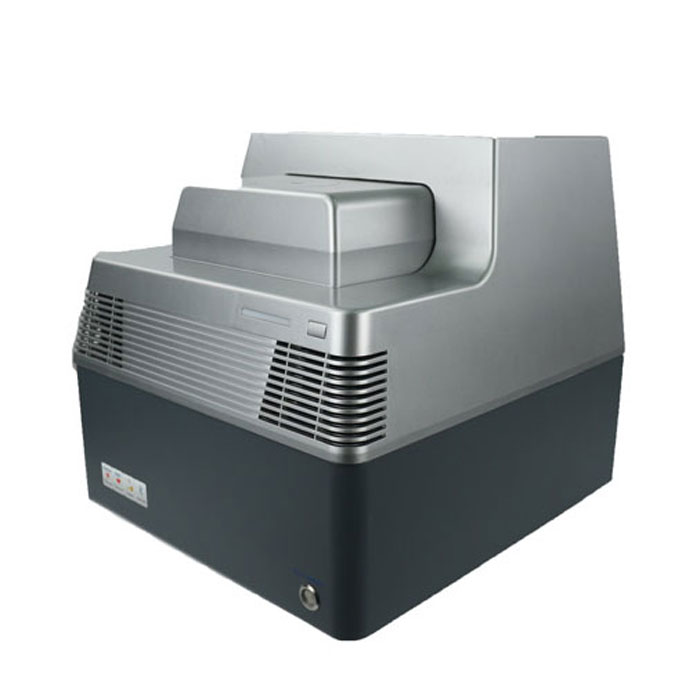

Healicom Linegene 9600 Plus Real-Time POCT PCR Analyzer
Quick Details
- Type: Genes & Life Science Equipments
- Brand Name: Healicom
- Model Number: Linegene 9600 Plus
- Place of Origin: Jiangsu, China
- Instrument classification: Class II
- Warranty: 1 Year
- After-sale Service: Online technical support
- Reaction system: 5~100ul
- Dynamic range: 1-1010 Copies
- Excitation wavelength: 300-800nm
- Detection wavelength: 500-800nm
- Temperature control precision: ±0.1℃
Products Description
Linegene 9600 Plus Real-Time POCT PCR Polymerase Chain Reaction Analyzer System
Features

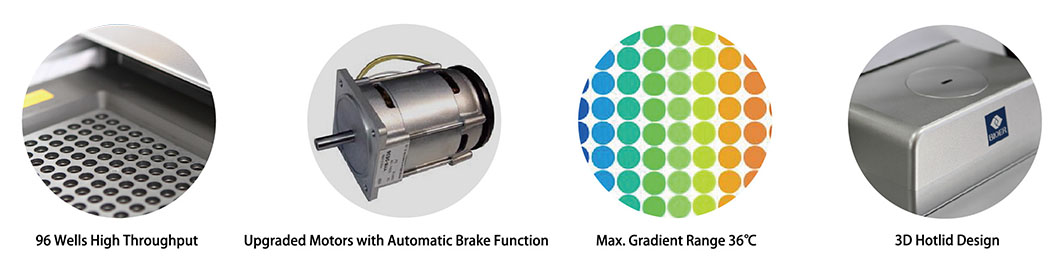

• Line-Gene 9600 Plus adopts Ferrotec specially-made Peltier, advanced fiber optic technology, new global wide-range power supply, the unique patented block dissipation technology and bottom detection mode, which provides better heating/cooling rate, temperature accuracy, uniformity and stability.
• Line-Gene 9600 Plus has up to 96 sample capacity and fast speed of dual-color scanning, and the design of 5 channel detection also covers the whole fluorescence detection wavelength.
• Newly-designed automatic hot-lid without manual operation ensures constant pressure for various tube heights.
• This auto hot-lid mode could be easily integrated into various automatic systems. Its Windows tablet computer and new touch screen brings excellent operating experience.
• Newly-improved Line-Gene 9600 Plus Real-Time PCR detection system can satisfy various clients’ requirement either for research or clinical use.
• Line-Gene 9600 Plus has up to 96 sample capacity and fast speed of dual-color scanning, and the design of 5 channel detection also covers the whole fluorescence detection wavelength.
• Newly-designed automatic hot-lid without manual operation ensures constant pressure for various tube heights.
• This auto hot-lid mode could be easily integrated into various automatic systems. Its Windows tablet computer and new touch screen brings excellent operating experience.
• Newly-improved Line-Gene 9600 Plus Real-Time PCR detection system can satisfy various clients’ requirement either for research or clinical use.
Technical Specifications
|
Product name
|
LineGene 9600 Plus Fluorescent Quantitative Detection System
|
|
Sample Capacity
|
96×0.2ml PCR plate, 12x 8-strip tubes, 96 x0.2ml single tube (transparent bottom)
|
|
Reaction system
|
5~100ul
|
|
Dynamic range
|
1-1010 Copies
|
|
Detected Fluorescence
|
F1: FAM, SYBR Green I
F2: VIC, HEX, TET, JOE, CY3, NED, TAMRA F3: ROX, TEXAS-RED F4: CY5 F5: CY5.5 |
|
Excitation wavelength
|
300-800nm
|
|
Detection wavelength
|
500-800nm
|
|
Module working temperature range
|
4-105℃ (resolution: 0.14℃) with SOAK low temperature storage function
|
|
Temperature control precision
|
±0.1℃
|
|
Temperature uniformity
|
＜±0.3℃
|
|
Hot lid temperature range
|
30-110℃ （adjustable, default by 105℃ and automatic hot lid)
|
|
Temperature control mode
|
Block Mode and Tube Mode (automatic control based on liquid level)
|
|
Operation mode
|
Continuous operation
|
|
Gradient temperature range
|
1~36℃
|
|
Fluorescence intense detection repetition
|
5%
|
|
Scanning mode
|
Full-plate scanning and designated line scanning
|
|
Scanning time
|
5.5s
|
|
Special function
|
Absolute quantitative automatic analysis, relative quantitative, 5NP analysis, melting Curve analysis, 6 independent temperature
7ones, HRM, Multi-channel| crosstalk calibration, background correction, auto gain, customizable parameters, etc. |
|
Programming
|
Max.20 segments for each program, max.99 cycles
|
|
Operating system
|
Microsoft: Windows 7/Windows 8.1/Windows 10
|
|
application software: Excel 200:2002/2003/2007/2012
|
|
|
Minimum computer configuration
|
RAM: 512M. hardware space: 10GB CPU: Pentium 4 virtual memory: ≥1000MB
|
|
Port method
|
Support USB and R5232 data port and Bluetooth port
|
|
Input power
|
100-240v, 50/60Hz. 600W
|
|
Outer dimension
|
410mmX386mmX352mm
|
|
Certification
|
Ferratec Peltier/CE/EMC/RoHS2.0/PICC Product Quality Liability Insurance/VD/MET
|
