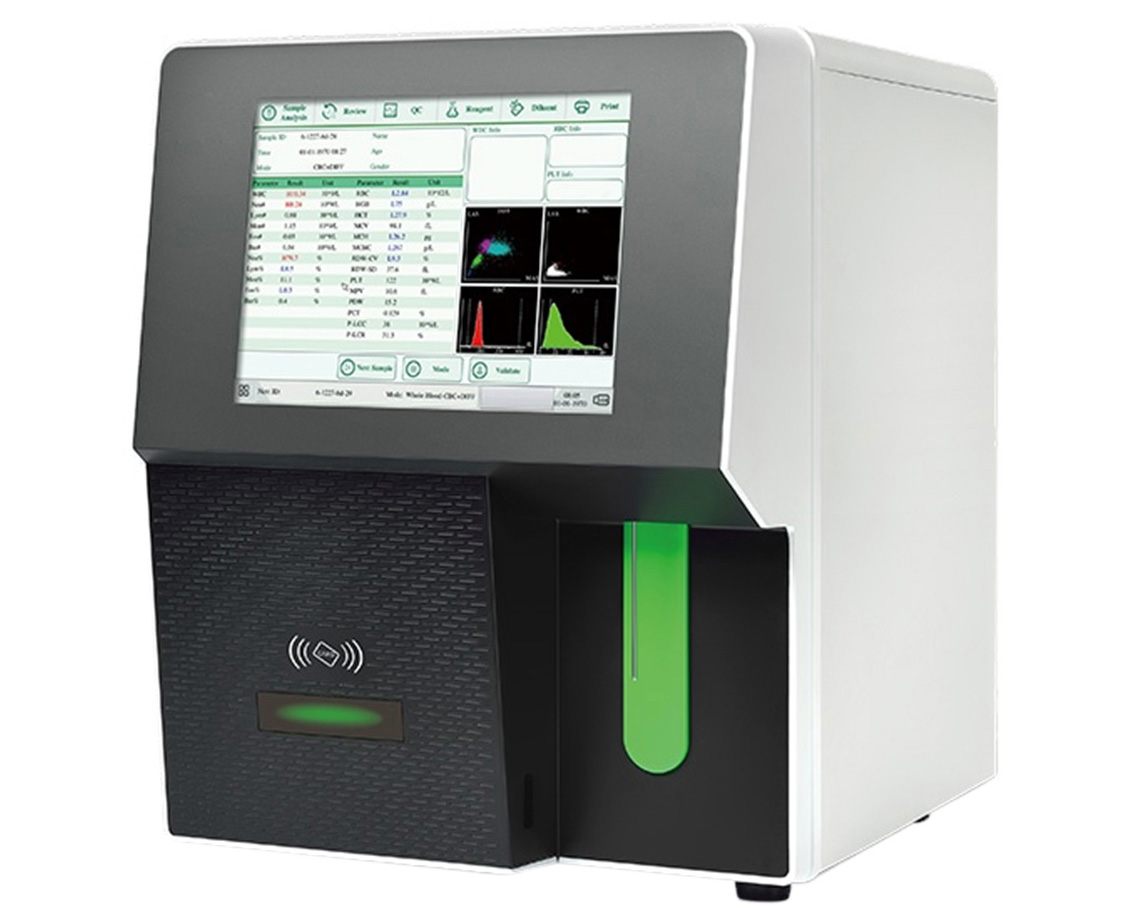

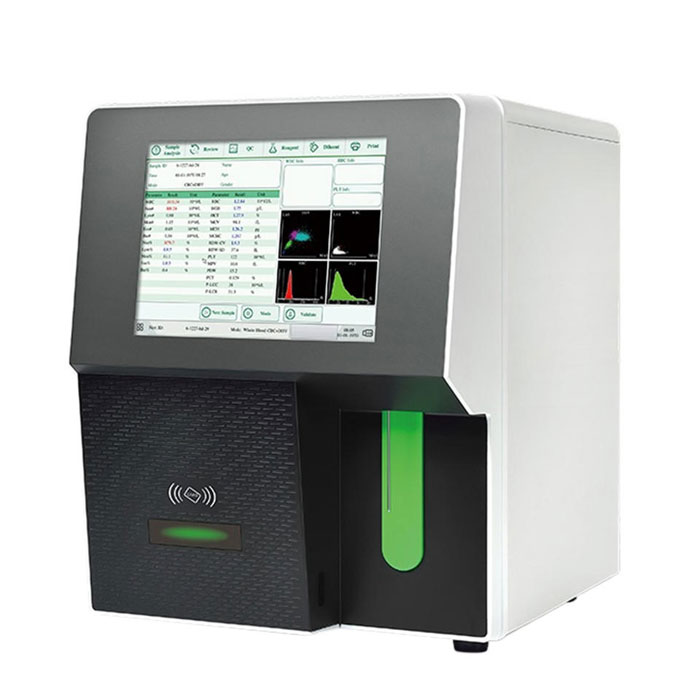

Healicom HMA-6610 5 Part Diff Clinical Auto Blood Hematology Analyzer

Latest innovation Tri-angle laser scattering and flow cytometry • Diff lyse is added to differentiate 4 kinds of WBC (Lym, Mon, Neu and Eos), LH lyse is used to differentiate Bas and count WBC amount. • Surrounded with sheath fluid(diluent), blood cells pass through the center of the flow cell one by one at high speed. • When passing through the flow cell, blood cells are exposed to a laser beam. The intensity of scatter light reflects the blood cell size and intracellular density. • The optical detector receives scatter light signals and converts them into electrical pulses. Pulse data is collected to generate a scattergram.

Proven technology Impedance and colorimetric • The count principle of the instrument is based on the measurement of changes in electrical resistance produced by a blood cell passing through an aperture sensor. Passing through the magnification circuit, the voltage signal will be magnified, which will be derived into impluses, and then analytical histogram will be generated. • Adding lyse in the blood, the red blood cell will rapidly be broken down and release hemoglobin. Hemoglobin and lyse form a new mixture, which can absorb the wavelength of 530nm. Measure the absorbency. Through comparison of the absorbency between the pure diluent and the sample, the concentration of the sample hemoglobin is calculated.
