Healicom H1000+ Real-Time POCT PCR Analyzer

Healicom H1000+ Real-Time POCT PCR Analyzer

৳ 2,360,000.00

Type: Genes & Life Science Equipments
Brand Name: Healicom
Model Number: H1000
Place of Origin: Jiangsu, China
Instrument classification: Class II
Warranty: 1 Year

Call for details 01842-756014

Description
Reviews (0)

Healicom H1000 Real-Time POCT PCR Analyzer

Quick Details

Type: Genes & Life Science Equipments
Brand Name: Healicom
Model Number: H1000
Place of Origin: Jiangsu, China
Instrument classification: Class II
Warranty: 1 Year
After-sale Service: Online technical support
Sample Block Capacity: 48 wells *0.1ml
Reaction Volume: 10-50ul
Communication Ports: USE 2.0& LAN
Display: 7″Color TFT Touch Screen
Detection: High sensitivity photoelectric detector

Products Description

H1000 Real-Time POCT PCR Polymerase Chain Reaction Analyzer System

Main Features:
1. The new powerful Peltier technology, fast ramping rate up to 7℃/s.
2. Sample block capacity: 48 wells * 2/4 channels. White PCR tubes could be used. In quantitative PCR experiments, white tubes offer the highest sensitivity and shield background.
3. T-OpticaI technology, reduce background noise, improve fluorescence signal sensitivity and signal to noise ratio.
4. Simultaneous detection of wells, not in sequence.

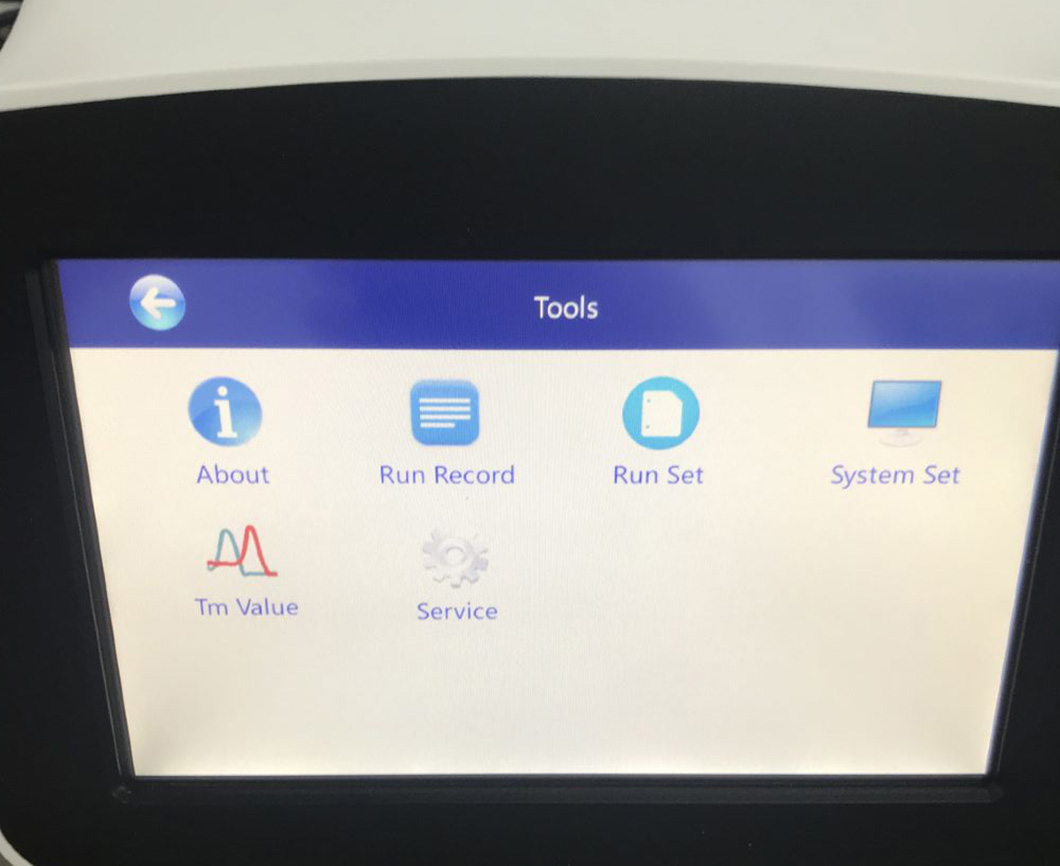

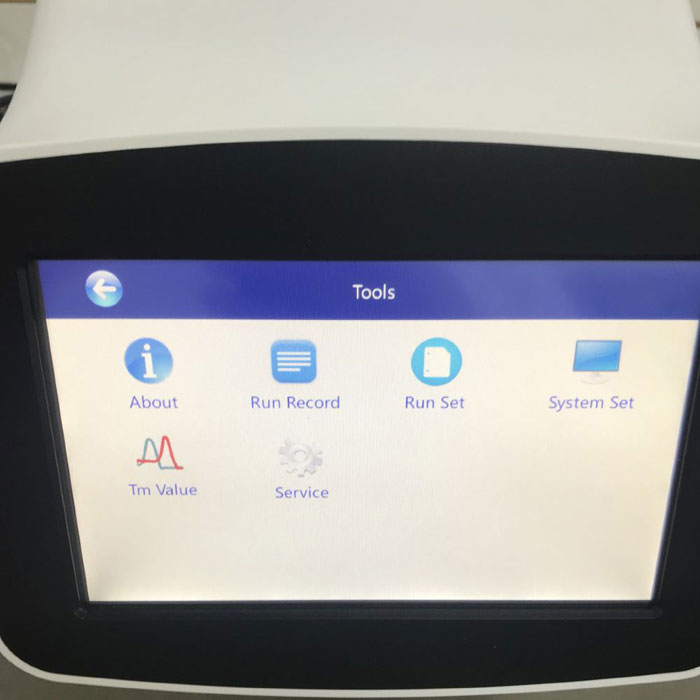

5. User could view qPCR process and run PCR protocol through self-contained 7″ TFT LCD and touch screen.
6. Special designed optical system for qPCR, avoiding more moving parts problems like overheat, wear and off center. Not optical fiber based, avoiding break and block.
7. Long life LED lamps to excite fluorescence and detect with SSLP CCD imaging technology.
8. Sample wells with temperature gradient function, convenient to optimize PCR conditions.

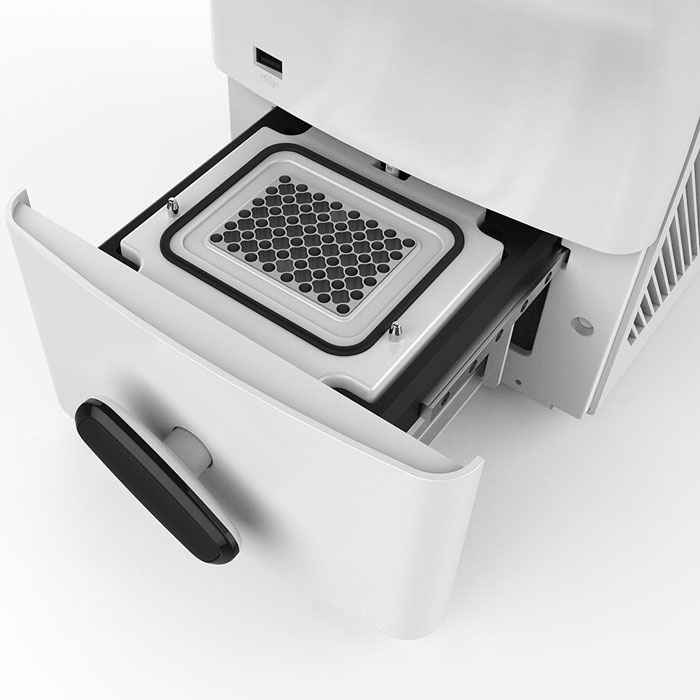

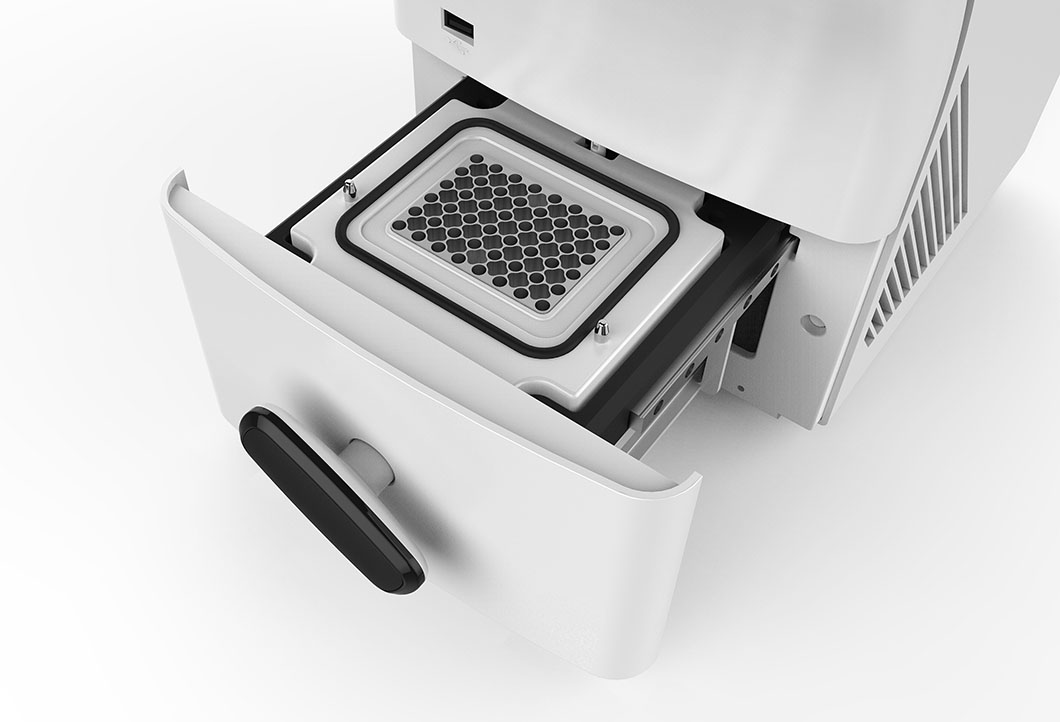

9. The drawer design of sample block, makes it easier to pick and place PCR tubes and plates.
10. The qPCR analysis software could be upgraded for free.

Technical Specifications

PERFORMANCE
Sample Block Capacity	48 wells *0.1ml
Reaction Volume	10-50ul
Tubes Option	Low-profile white or clear 0.1 ml PCR tube/8-tube strips with optical flat cap
Healing &Cooling Technology	New generation Peltier technology allow 1.000.000 cycles
Control Methods	Operate via PC control or Iimited function on instrument
Language	English
Communication Ports	USE 2.0＆ LAN
Display	7”Color TFT Touch Screen
TEMPERATURE
Block Temp Range	0℃—105℃
Max Heating Rate	7℃/sec
Max Cooling Rate	5℃/sec
Temp Uniformity	±0.2℃at90℃
Temp Accuracy	±0.1℃(10 seconds after reach 90℃)
Display Resolution	0.1℃
Heat Lid Temp Range	30℃—112℃
Temp Control Mode	Block & Sim-tube mode
Gradient Range	30℃-100℃
Temp Differential Range	1℃-24℃
OPTICAL MODULE
Excitation	Long life LED
Detection	High sensitivity photoelectric detector
Dynamic Range	1—10¹º
Detection Sensitivity	≥1 copy
Calibrated Dyes at Installation	Channel 1：FAM、SYBR； Channel 2：VIC、HEX、TET、JOE、CY3、TAMARA、NED Channel 3：ROX、TEXAS-RED； Channel 4：CY5
Fluorescence Excitation Range	300-800nm
Fluorescence Detection Range	500-800nm
Date Export Formats	Excel. TXT
OTHER FEATURES
Power	Global switch power supply:100V-240V，50-60Hz
Consumption	400W
Net Weight	8.2kg
Dimensions(L×W×H)	320×205×380mm
COMPUTER
Operating Systems	Windows7、Windows10、WindowsXP
