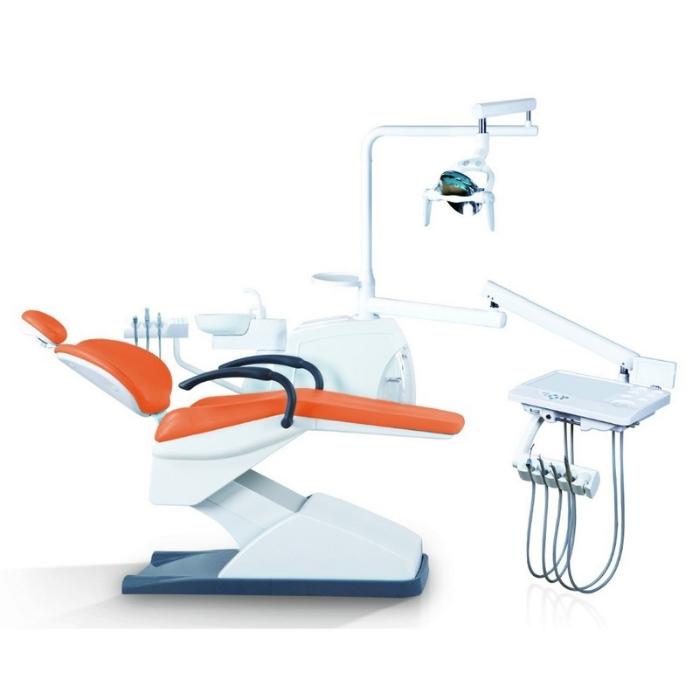

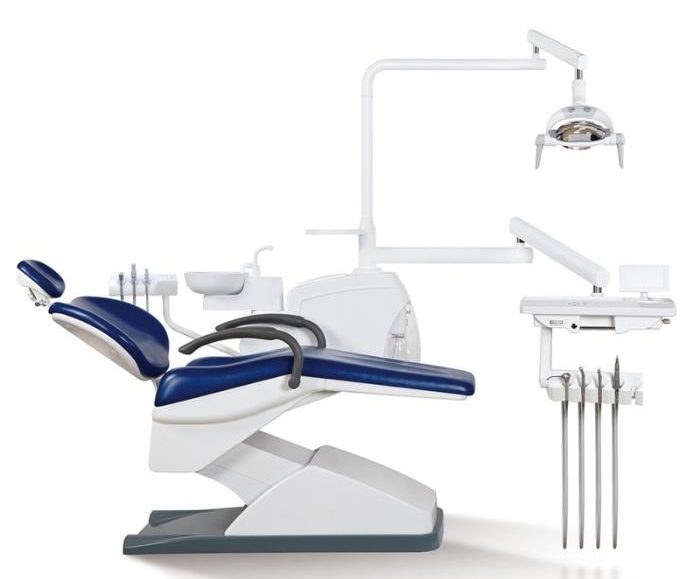

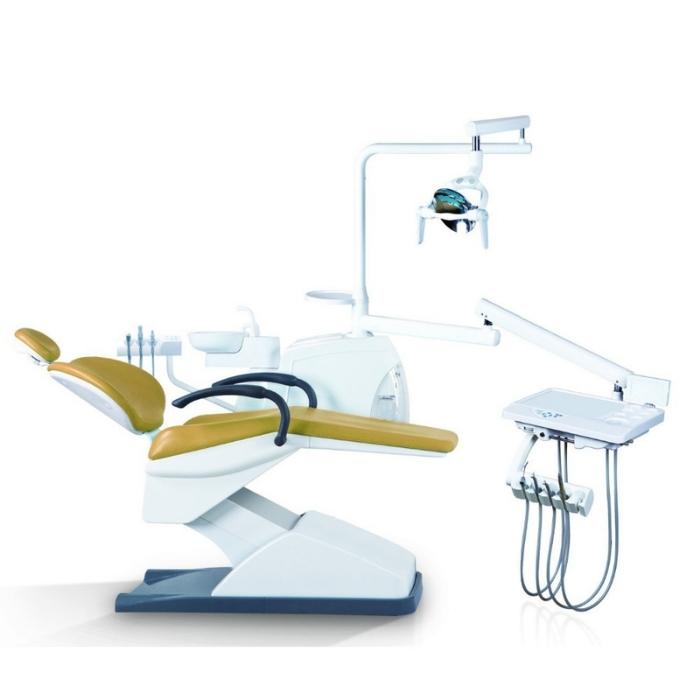

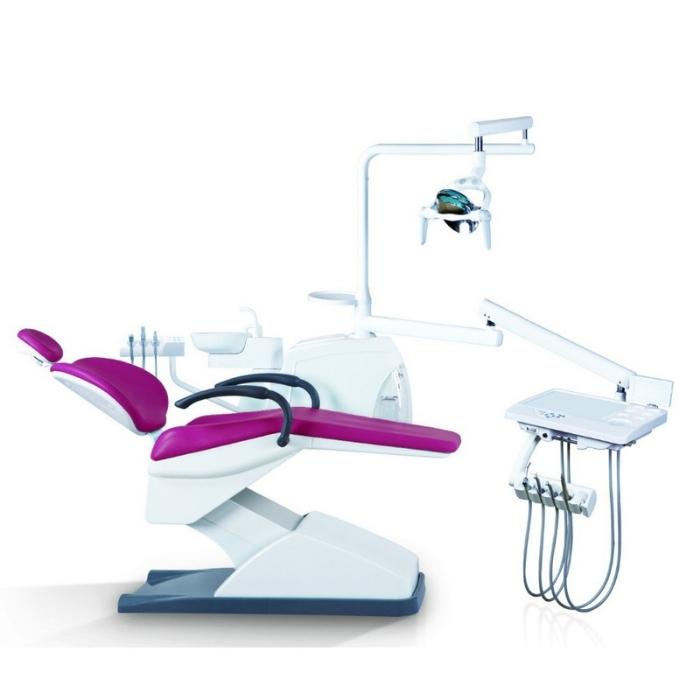

HDC-N2+ Electric Dental chair Unit Medical Equipment

HDC-N2 Full functions Dental Chair Electric dental unit Dental Equipment

Power supply

• Electrical supply: 220V/AC(110V/AC)/50/60HZ
• Water supply: 0.2-0.4MPa
• Air supply: 0.55Mpa
• Master switch for air / water /electricity supply

Dental light

• LED light with on/off and non-class intensity control sensor
• Light intensity 15000-20000 lux
• Color temperature 6000- 6500K
• Flexible arm, adjustable range ≥80 degree
• 3-axis rotation, vertical, horizontal, and axial & diagonal movements
• Detachable handle

Dental treatment element

• Chair mounted delivery arms
• Air-lock instrument arm
• Big instrument table with five instrument positions, plastic table pad
• Three way syringe with removable tip
• Main touch panel for chair movement and cuspidor
• Extra plastic table for patient

Patient chair

• Motor driven chair, 24V/DC motor
• Wide chair and backrest
• Heavy-Gauged Steel Framing. Epoxy-Painted
• Fixed left armrest and rotatable right armrest
• Backrest moving range :75°- 180°
• Chair moving range: 420-800mm, Max. Load: 225kg
• Foot controller for chair movement and handpiece

Water unit

• 180°rotatable & detachable ceramic spittoon
• Timed cup filler spittoon flusher
• Saliva ejector and air suction with outer filters
• Automatic thermostat water-heating system
• Pure water bottle made from safe material

Assistant element

• Three way syringe with warm water and removable tip
• Saliva ejector and air suction with high quality tubing
• Assistant touch panel for chair movement and cuspidor

Dentist’s stool

• Dentist stool (high quality )with backrest
• Gas spring moving system
• Movable stool base

Standard configuration

3-way syringe(cold/hot)	2sets
Powerful suction device	1set
saliva ejector	1set
Dentists Stool	1set
LED dental light	1set
Warm water system	1set
Purified water supply system	1set
Rotatable ceramic spittoon	1set
DC 24V electric driven chair	1set
Multifuctional assistant device	1set
LED x-ray viewer	1set

Options

• 2/4 holes high /low speed handpiece
• Endoscope system
• Curing light
