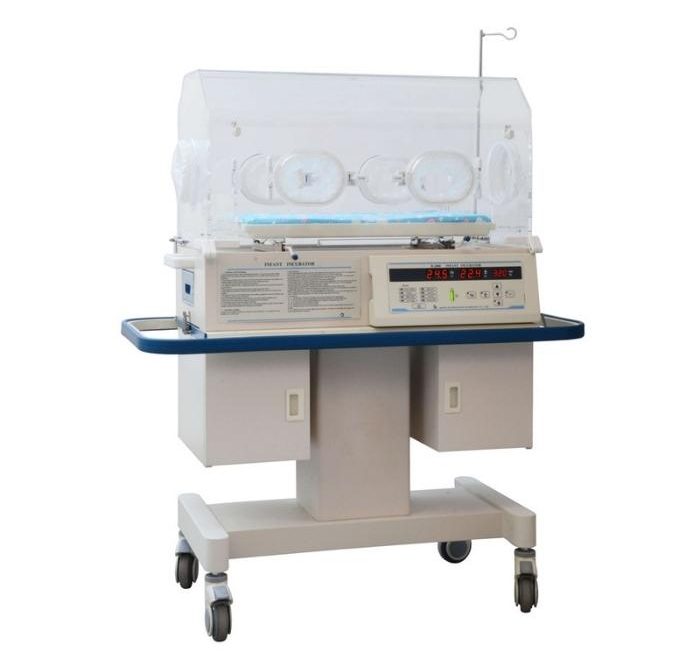

Infant Care Equipments H-2000 Baby Warmers Infant Incubator
Product Feature
- Servo Control Mode: air temperature, skin temperature;
- Parameter Displaying: set temperature, air temperature, skin temperature, internal humidity, heat power rate;
- Audible & Visual Alarms: power failure, sensor failure, higher & lower temp, air & skin temperature override, fan failure, system failure;
- >37ºC Preset Mode: power failure reset memory, alarm silence, keypad lock, self-test function;
- Hood with dual slope; 6 hand-ports;
- RS-232 Output Connector (use for network system);
- IV poles;
- Protective guard rail;
- Storage cabinets
Technical Specification
Power requirement
|
≤400VA
|
Temperature control mode
|
Air and skin servo control
|
Air Temp Control Range
|
20.0ºC-37.0ºC
|
Temperature override mode to
|
37.1ºC-39.0ºC
|
Skin Temp Control Range
|
20.0ºC-37.0ºC
|
Temperature override mode to
|
37.1ºC-38.0ºC
|
Skin temp sensor accuracy
|
≤0.3ºC
|
Temperature fluctuation
|
≤0.5ºC
|
Mattress temperature uniformity
|
≤0.8ºC
|
Temperature rise time
|
≤45 min
|
Noise level within hood environment
|
≤55dB
|
Alarms
|
Power failure alarm, Fan failure alarm, Sensor failure alarm
|
High air temperature alarm
|
3.0ºC
|
Low air temperature alarm
|
-3.0ºC
|
High skin temperature alarm
|
1.0ºC
|
Low skin temperature alarm
|
-1.0ºC
|
Over air temperature alarm
|
≤38.0ºC; ≤40.0ºC
|
Over skin temperature alarm
|
≤38.0ºC; ≤39.0ºC
|
System failure alarm
|
|
Alarm silence function
|
Specifications of hood
- Mattress to Hood: 450 mm
- Observation side of hood: Two incline
- Operate port: 6 (2 Iris ports)
- Tubing grommets: 4
- Front access panel: 826×310 mm
- Mattress Tray Size: 630×360 mm
- Infant bed tilt adjusting ±10° step-less
Operational condition
- Environment temperature: 20ºC- 30ºC
- Environment relative humidity: 30%-75%
- Environment air velocity of flow: <0.3m/s
Others
- Mattress tray Max. load 5kg
- Transfusion pole Max. load 2kg
- Cabinet Max. load 6kg
