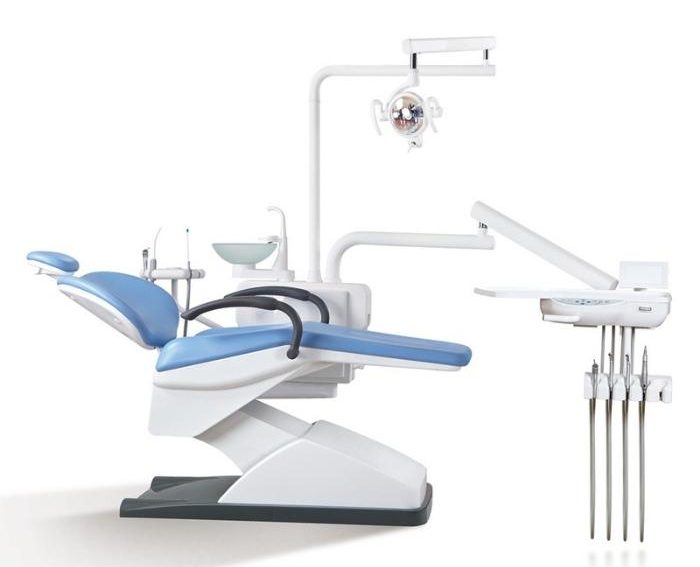

HDC-N1 Electric Dental Chair Unit Medical Equipment

Medical Equipment HDC-N1 Electric Dental Chair Unit

Specifications

• Power voltage: 220V-50Hz / 110V-60Hz
• Motor voltage: 24V
• Air pressure: 0.5MPa-0.8MPa
• Water pressure: 0.2MPa-0.4MPa

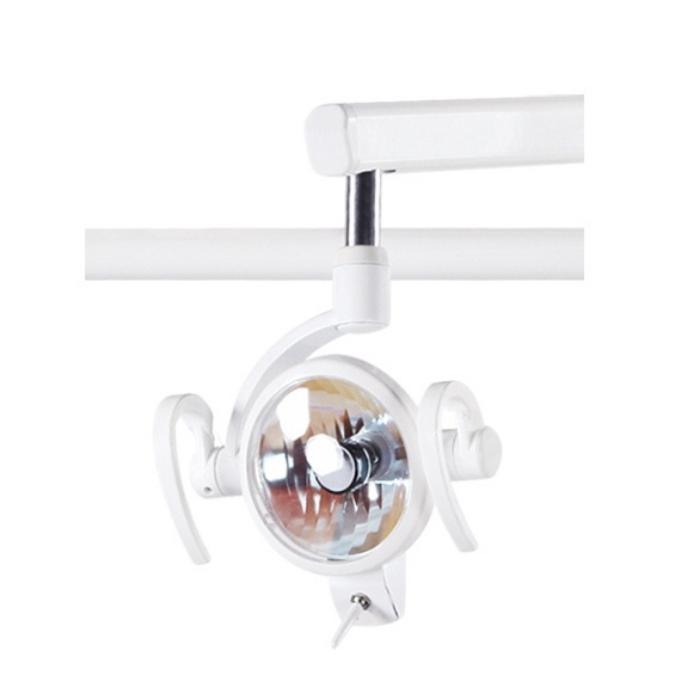

Dental light

• Halogen light with two classes of intensity
• Light intensity: 15000-20000 lux
• Color temperature: 5000K
• Flexible arm, adjustable range ≥80 degree

Dental treatment element

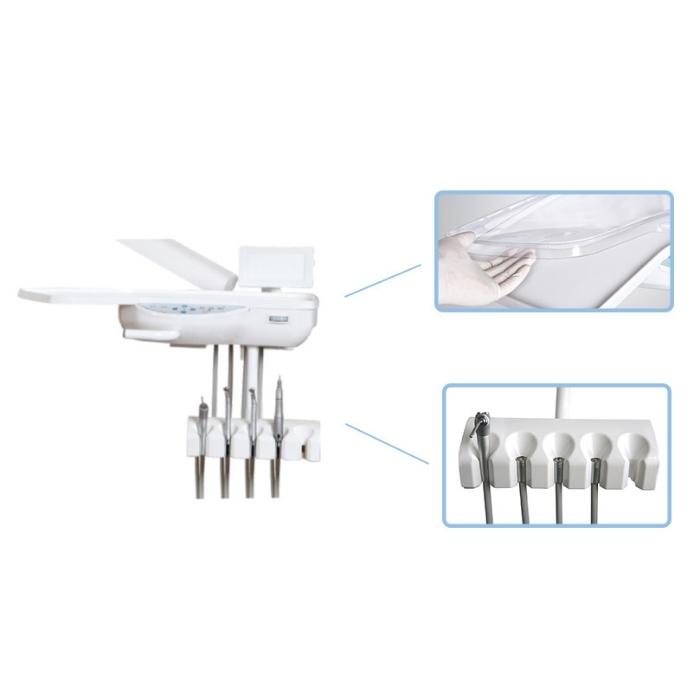

• Chair-mounted delivery arms
• Air-lock instrument arm
• Big instrument table with five instrument positions, plastic table pad
• Three-way syringe with removable tip
• Main touch panel for chair movement and cuspidor
• Extra plastic table for patient

Patient chair

• Motor-driven chair, 24V/DC motor
• Wide chair and backrest
• Heavy-Gauged Steel Framing. Epoxy-Painted
• Backrest moving range: 75°- 180°
• Chair moving range: 420-800mm, Max. Load: 225kg
• The foot controller works for chair movement and handpiece

Water unit

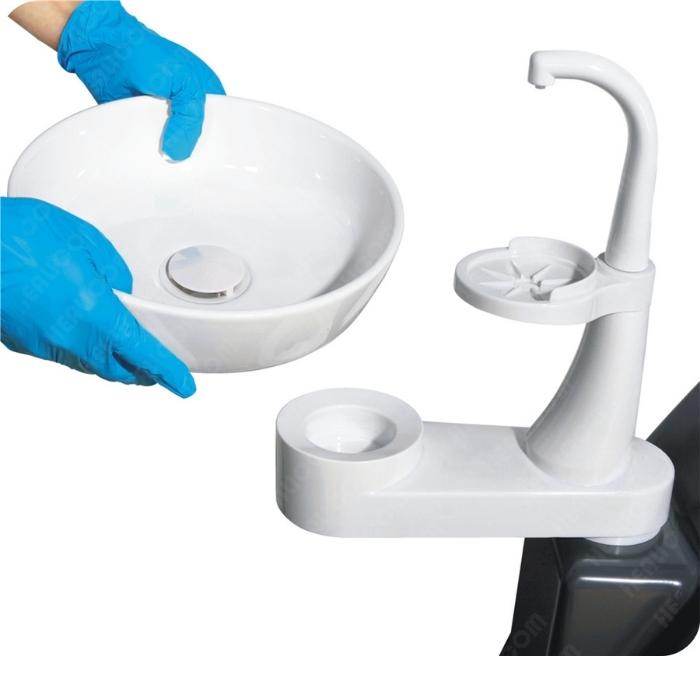

• 180°rotatable & detachable glass spittoon
• Timed cup filler spittoon flusher
• Saliva ejector and air suction with outer filters
• Automatic thermostat water-heating system
• Pure water bottle made from safe material

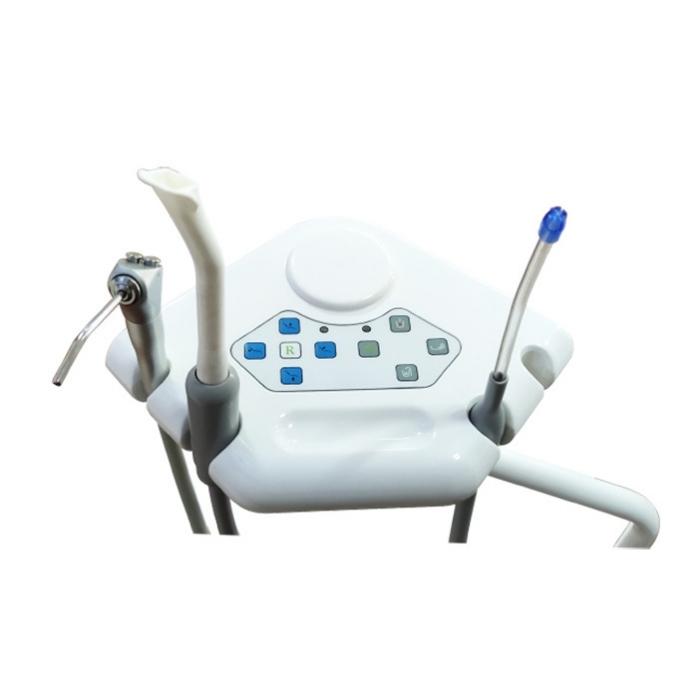

Assistant element

• Three-way syringe with warm water and removable tip
• Saliva ejector and air suction with high-quality tubing
• Assistant touch panel for chair movements and cuspidor

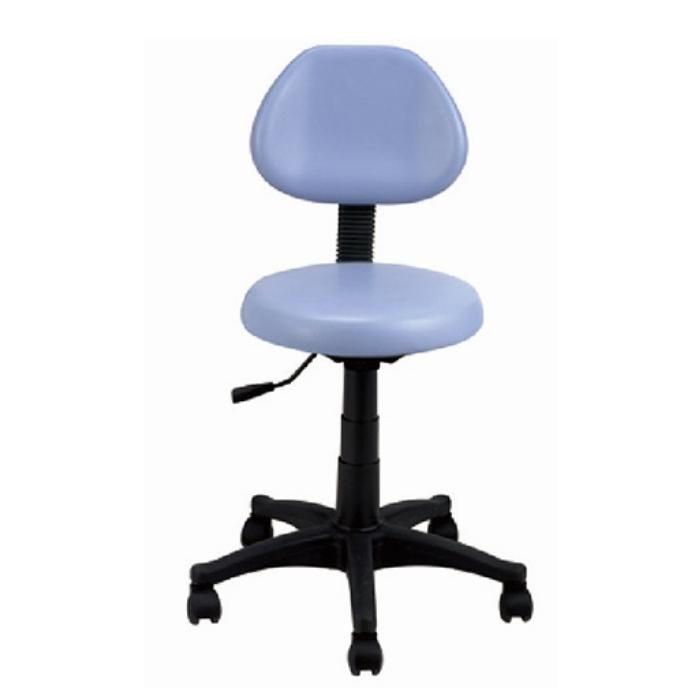

Dentist’s stool

• Dentist stool (high quality) with backrest
• Gas spring moving system
• Movable stool base

Standard configuration

Standard configuration	Quantity
3-way syringe (cold/hot)	2sets
Powerful suction device	1set
Saliva ejector	1set
Dentists Stool	1set
Dental light	1set
Warm water system	1set
Purified water supply system	1set
Rotatable ceramic spittoon	1set

Options

• 2/4 holes high /low speed handpiece
• Curing light
• Fiber optical handpiece
• Built-in Ultrasonic Scale
• Electric micro motor
