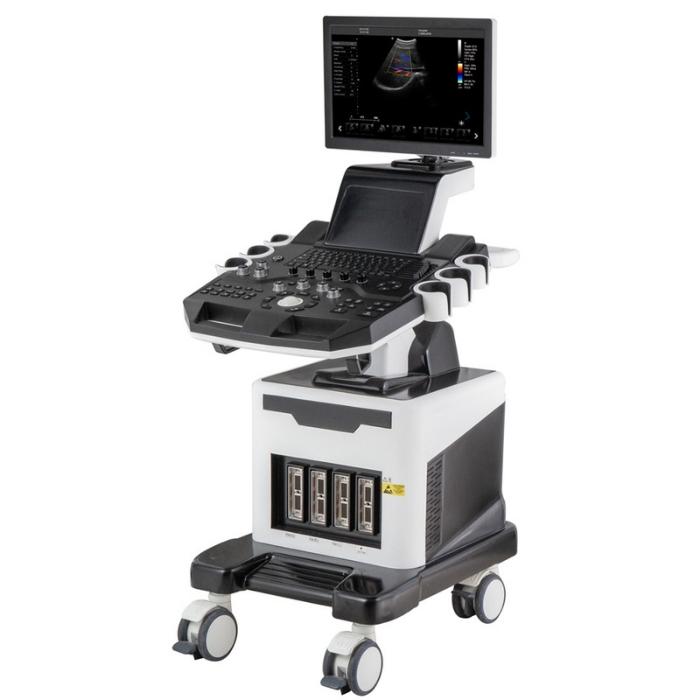

Healicom THUC-600P Mobile 4D Color Doppler Ultrasound Scanner
৳ 1,180,000.00
- 19 inch LCD display

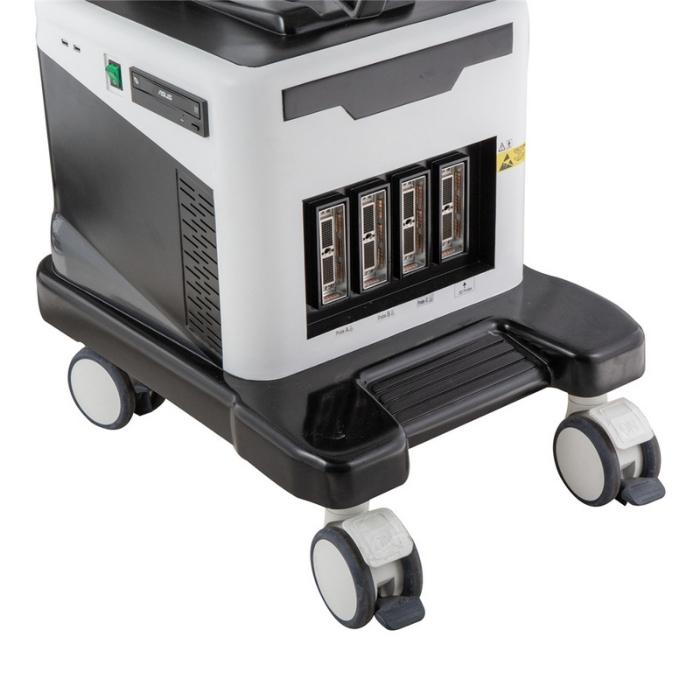

- 4 probe connectors
- Multi-angle adjustable joint arm design
- Built-in 128G solid state drive, External USB storage
- Humanized ergonomic design to improve the operating comfort
- Probe automatic freeze protection to extend the life of the probe
- Rich clinical measurement software, apply to various department
- Display mode: B mode, C mode, PW mode, CW mode, real time 4D mode, B/C, B/C/PW, B/PW.
- Probe Optional: Phased array probe, Convex probe, micro-convex probe, 4D volume probe, trans-vaginal probe, linear probe, trans-rectal probe.
Call for details 01842-756014
HUC-600P 3D 4D Color Doppler Trolley 19 Inch LCD Display Ultrasound Machine with 4 Probe Connectors
Main Features:
- 19 inch LCD display
- 4 probe connectors
- Multi-angle adjustable joint arm design
- Built-in 128G solid state drive, External USB storage
- Humanized ergonomic design to improve the operating comfort
- Probe automatic freeze protection to extend the life of the probe
- Rich clinical measurement software, apply to various department
- Display mode: B mode, C mode, PW mode, CW mode, real time 4D mode, B/C, B/C/PW, B/PW.
- Probe Optional: Phased array probe, Convex probe, micro-convex probe, 4D volume probe, trans-vaginal probe, linear probe, trans-rectal probe.
Comprehensive clinical application solutions:
- A key optimization
- Pulse Doppler
- Energy Doppler
- Tissue harmonic imaging
- Capture peak blood flow
- Three real-time synchronization
- Quick user-defined settings: To meet the individual needs of different doctors and improve work efficiency
- All-in-One Clipboard: The saved image is displayed at the bottom of the screen, which can be directly see or deleted
|
Technical Specifications
|
|
|
Monitor
|
19 inch LED medicinal monitor
|
|
Scanning mode
|
convex array/linear array/micro-convex array
|
|
Display mode
|
B mode(B, B B, 4B, B M,M), C mode, PW mode, CW mode, real time 3D mode(4D), B/C, B/C/PW, B/PW: 4 scanning speed adjustable
|
|
Body mark
|
≥57
|
|
Image processing
|
up/down, left/right, angle, blood flow reversal
|
|
Magnification
|
2-10 times magnification
|
|
Automatic freeze function
|
effective protection of probe life without any operation
|
|
Alternative image storage method
|
UI storage and image storage only
|
|
Measurement
|
distance, circumference, area, volume, heart rate, tube diameter, narrow rate, angle, speed, abdomen, cardiac, general, musculoskeletal, early obstetric, middle and late obstetric, pelvic(uterus accessory), small organ, urology, peripheral, gestational week and EDD, fetal weight, etc, formula can be converted to edit in obstetric measurement. The distance, circumference and volume measurement of 3D mode.
|
|
Note
|
date, clock, name, gender, age, doctor, hospital, note (full screen character editing)
|
|
Dynamic range
|
0-270dB
|
|
Intelligent TGC
|
8 segments
|
|
Pre-processiong
|
variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI etc.
|
|
Max scanning depth
|
320mm
|
|
Geometric accuracy
|
horizontal≤5%, vertical≤5%
|
|
Resolution
|
lateral≤2mm, axial≤1mm
|
|
External interface
|
VIDEO, USB port *4, DICOM 3.0
|
|
Frame rate
|
5-1016fps (adjustable as per requirement)
|
|
Scanning range
|
5%–100%
|
|
Gain control
|
Total gain 0~127dB, PW gain 0-15, CFM gain: 0-15
|
|
Image optimization
|
6 level adjustable
|
|
Smoothing
|
8 level adjustable
|
|
PRF
|
16 level adjustable (1.82-29.43KHz)
|
