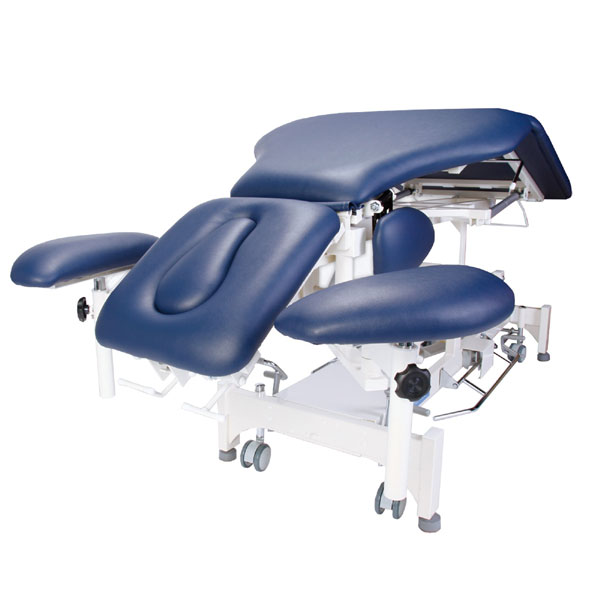

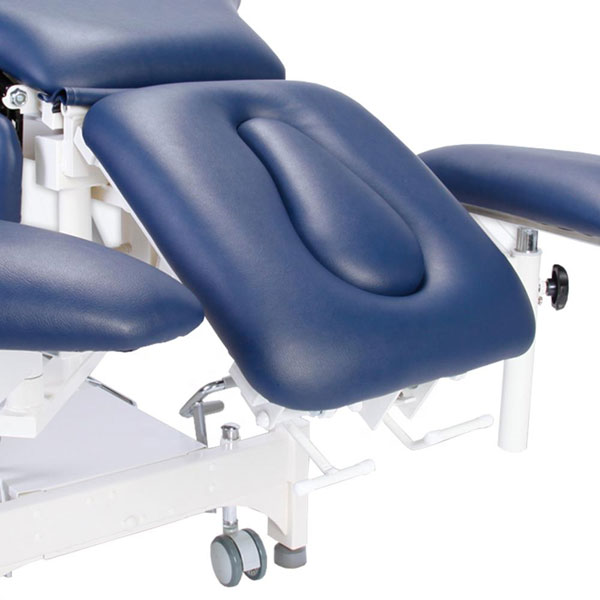

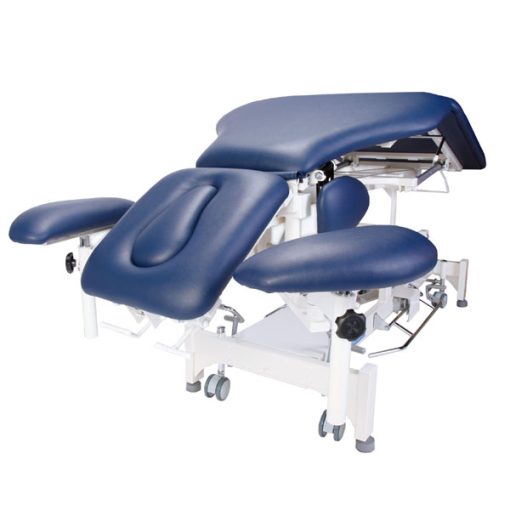

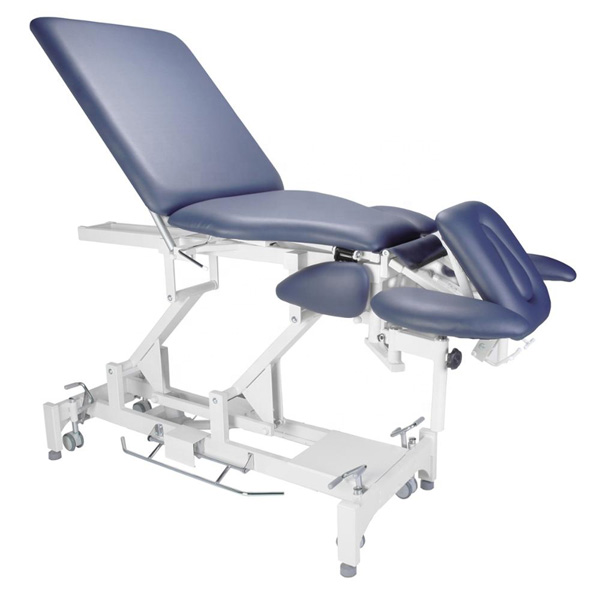

7 Section Table with 1 motor for Hi/Lo Adjustment. What made this model popular is its 15° Center Arching(Locked), 60° Reversible Head Section, Spring-loaded Arm Rest with 120° Swivel and 87° Leg Incline capabilities all-in-one. Even Better, the center joint can be UNLOCKED from the upper frame to make the leg section free-floating. A ramp & plateau positioning can be achieved as well as many other possible positions. It’s simply versatile! Both armrests can be opened and closed up to 120° as well as lifted and dropped. The two side wings just above the shoulder can be folded down when the user is lying down on her stomach. She can then extend her arms forward and rest on the armrests comfortably.
#There are 5 control types for customers to choose: Hand Control/Foot Control/2,3 or 4 Sides Elevating Bar
#Maximum User Weight: 225kgs/496 lbs
Product Name |
CA100 7 Sections Treatment Table |
Model Name |
CA100 |
Number of Motor |
1 |
Control Type |
Hand Control/ Foot Control/ 2,3 or 4 Sides Elevating Bar |
Warranty |
1 Year on Gas Struts/ Castors/ Upholstery 2 Years on Electronic Components 3 Years on Frame and Pillar |
Minimum Height |
460mm/18.11″ inch |
Maximum Height |
910mm/ 35.83″ inch |
Table Top Width |
700mm/ 27.56″ inch |
Total Length |
1930mm/75.98″ inch |
Head Tilt Angle |
-35° to 87° |
Lift Mechanism |
Electric |
Breathing Hole/Plug |
1 |
Retractable Castors |
4 |
Weight Rating(Max.Load) |
225 kgs/496 lbs |
Net Weight |
68.5 kgs |
Gross Weight |
82.1 kgs |
Package Dimension |
221 x 77 x 52 cm |
Control Box Input Voltage & Rating(Max.Load) |
100-240 VAC, 50/60 Hz, 2A |
