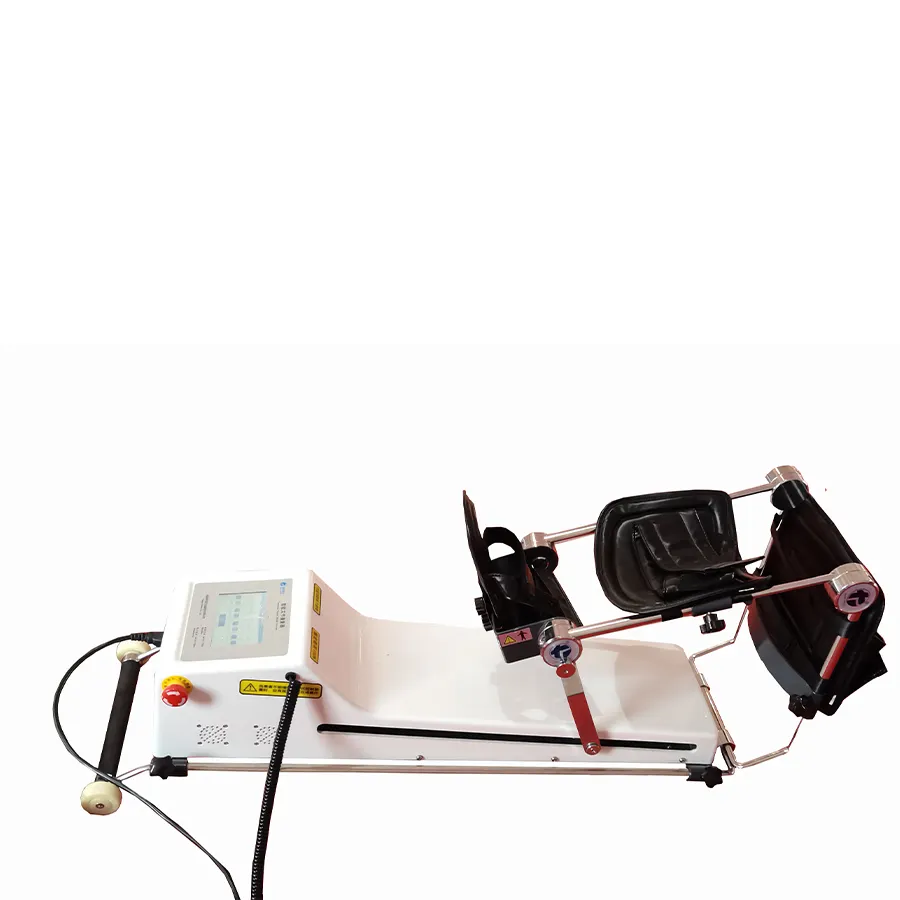

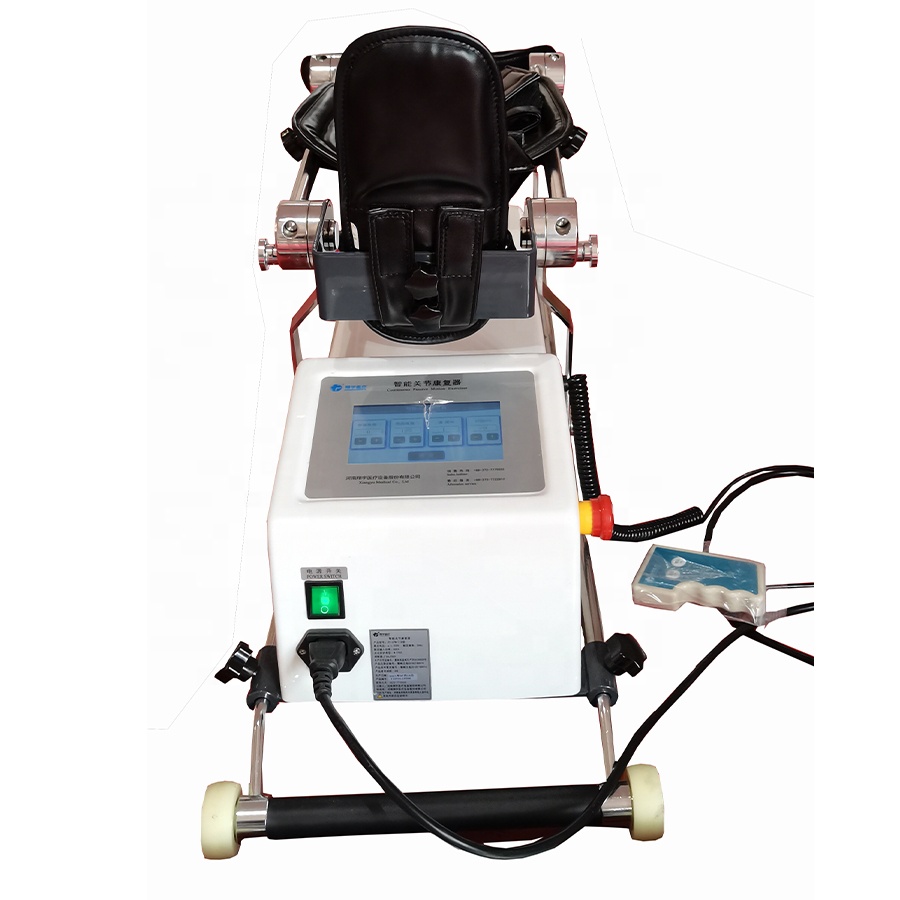

Rehabilitation Centre Equipment Continuous Passive Motion CPM Device Knee Traction Machine

CPM machine knee continous passive motion device

CPM machine knee continous passive motion device

Place of Origin: Henan, China

Brand Name: XIANGYU

Model Number: XY-CPM-IIB

Instrument classification: Class II

Warranty: 1 Year

Movement angle of foot plate: ≥40°

Color: white

Hip angle: 25°~100°

Knee joint angle: 0°-125°

Joint angle change speed:1.5°-3.6°/S

Application: Rehabilitation Centre

Certificate: ISO13485

Power supply: 220V/50 Hz

CPM machine Product Parameters

Product Name	Exercise rehabilitation CPM machine knee continuous passive motion device
Model Number	XY-CPM-IIB
Rated voltage	A.C. 220V
Working frequency	50Hz
Dimensions	1025mm360mm500mm(L/W/H)
Ambient temperature range	+5℃ ~ +40℃
Training time	1~60min
Rate input power	30VA
MOQ	1 Set

Products Description

Product Description

Multi-joint active and passive training instrument (hereinafter referred to as training instrument) is a new generation of
products developed by our company. On the basis of the original products, we learn from the foreign advanced technology of similar products and have made great improvements in the mechanical structure design and the use of raw materials, especially in the electronic circuit and software program. It further improves the rationality of the product structure, the convenience of use, and the reliability of product quality.

Applicable people

Advantages

1. Display mode: LCD touchscreen
2. Working noise of training instrument ≤60dB (A)
3. Shoulder or elbow joint movement conversion is a convenient, flexible length adjustment, the product is widely used

Scope of application
It is suitable for active and passive rehabilitation training of patients’ Upper limbs

Contraindications

1. Implanted cardiac pacemakers and other metal medical devices;
2. Patients with tumors and severe insufficiency of heart, liver, kidney, and organs;
3. Patients with severe osteoporosis or extreme weakness;
4. Patients with untreated or treated fractures that require braking or lower limb trauma, bleeding, and skin diseases;
5. Patients with serious primary diseases, such as cardiovascular, cerebrovascular, liver, kidney, and hematopoietic system, or mental illness;
6. Patients with malignant tumors;
7, abnormal mental consciousness can not cooperate with and can not accept the experimenter;
8. Pregnancy, lactation and pregnant women;
9. Patients who cannot stand with weight bearing.
