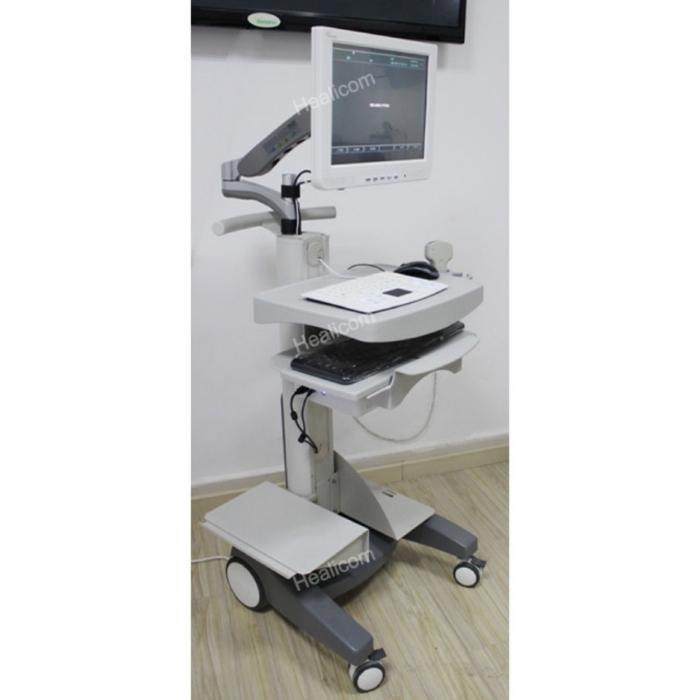

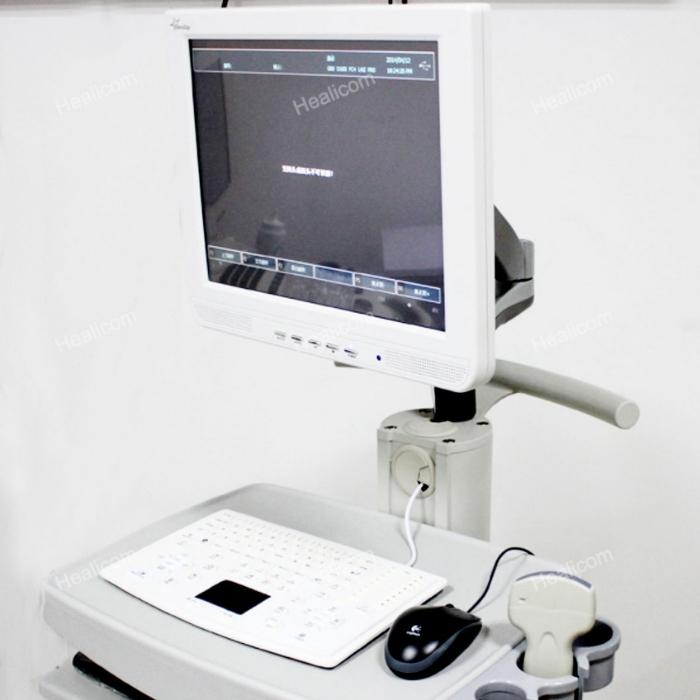

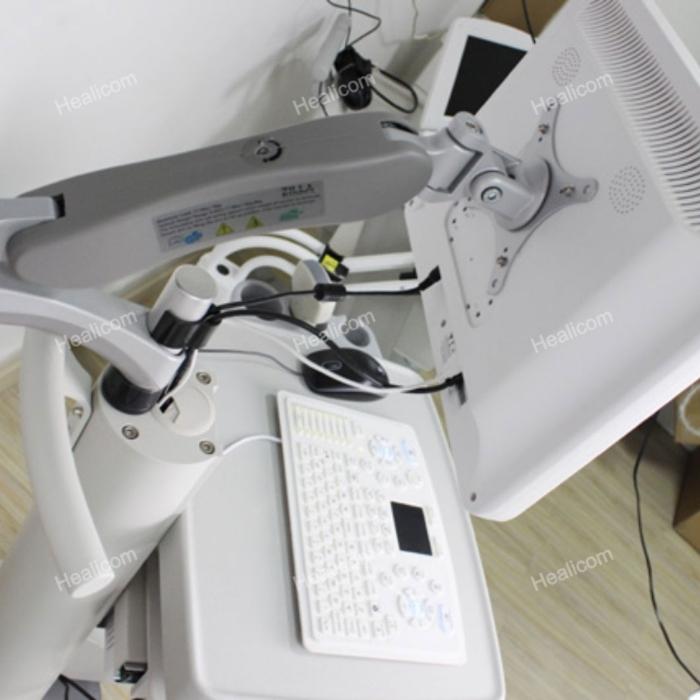

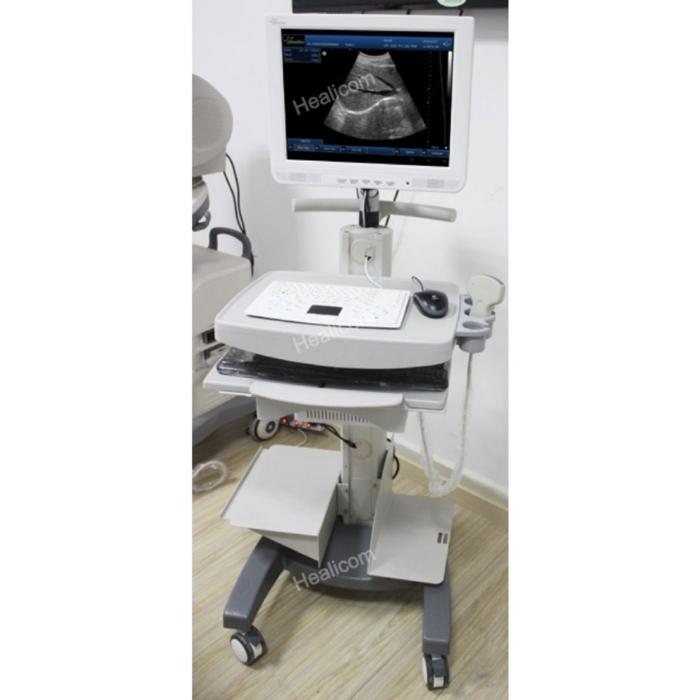

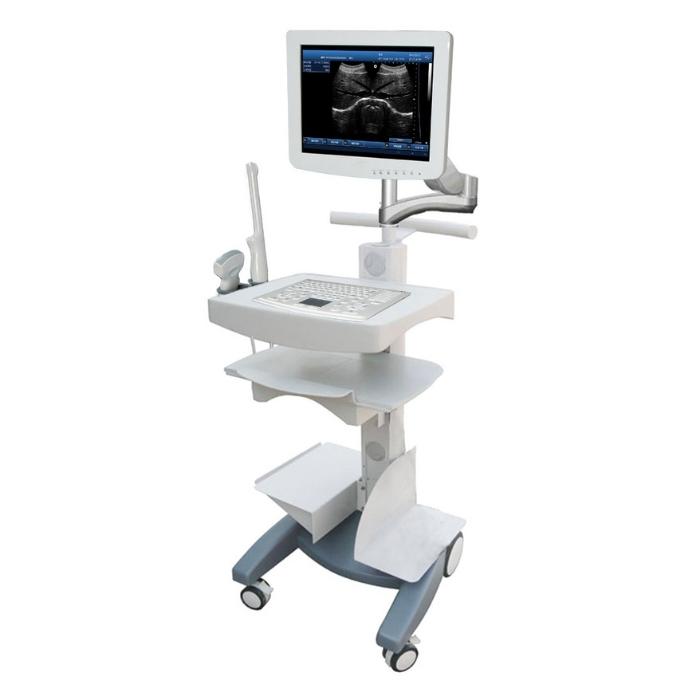

Healicom THBW-100 Touch Screen Mobile PC Based Ultrasound Scanner
- Full digital imaging technology
- Crystal-clear Image
- Computer platforms, Abundant functions
- Powerful image and report management
- 3D Image Function (optional)
- DICOM display and transfer
- 250G large Storage volume
- Broadband Multi-frequency probes
- Compatible with USB laser/inkjet printers
- Pretty and new appearance
- 15 inch touch screen color LCD monitor
- Silica gel backlight waterproof keyboard
- 8 segment TGC, 16 step zoom
- Complete application software packages
- Can work with external battery (option)
- 2 probe connector
- Can be fold, the transportation is convenient and lower freight
- Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.
Call for details 01842-756014
HBW-100 Touch Screen Mobile B/W Ultrasound Scanner
Feature
- Full digital imaging technology
- Crystal-clear Image
- Computer platforms, Abundant functions
- Powerful image and report management
- 3D Image Function (optional)
- DICOM display and transfer
- 250G large Storage volume
- Broadband Multi-frequency probes
- Compatible with USB laser/inkjet printers
- Pretty and new appearance
- 15 inch touch screen color LCD monitor
- Silica gel backlight waterproof keyboard
- 8 segment TGC, 16 step zoom
- Complete application software packages
- Can work with external battery (option)
- 2 probe connector
- Can be fold, the transportation is convenient and lower freight
- Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.
Specification
|
D-Maximum Scanning Depth
|
max. 250mm
|
|
Multi-frequency
|
5 segment frequencies
|
|
Zoom
|
10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
|
|
Image gray scale
|
256 level gray scale
|
|
Cine Loop
|
1024 frames
|
|
Scanning mode
|
B, 2B, B/M, M, 4B, 9B, ZOOM; Real-time Zoom on B mode
|
|
Image processing
|
Pre-processing, after-processing, dynamic range, frame rate, line average, edge;
enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision |
|
Gain
|
Gain: adjustable between 0-100dB;
Time gain control(TGC): 8 segment adjustment, B, M adjustment separately |
|
Measurement and calculation (human)
|
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis; Gynecology measurement: Uterus, cervix, endometrium, L/R ovary; Obstetric: gestation age, fetal weight, AFI; Cardiology: LV, LV function, LVPW, RVAWT; Urology: transition zone volume, bladder volume, RUV, prostate, kidney; Small parts: optic, thyroid, jaw and face. |
|
Image store
|
by hardisk or USB disk, can save image and also video (avi or swf format)
|
|
Print
|
by USB laser / inkjet printers
|
|
Probe Connector
|
2
|
Ultrasound treatment machines are devices that produce sound waves to create a picture of an object. These sound waves penetrate the body and bounce off the organs, muscles, and other tissues inside. The echoes from these sound waves are captured and processed by a computer.
