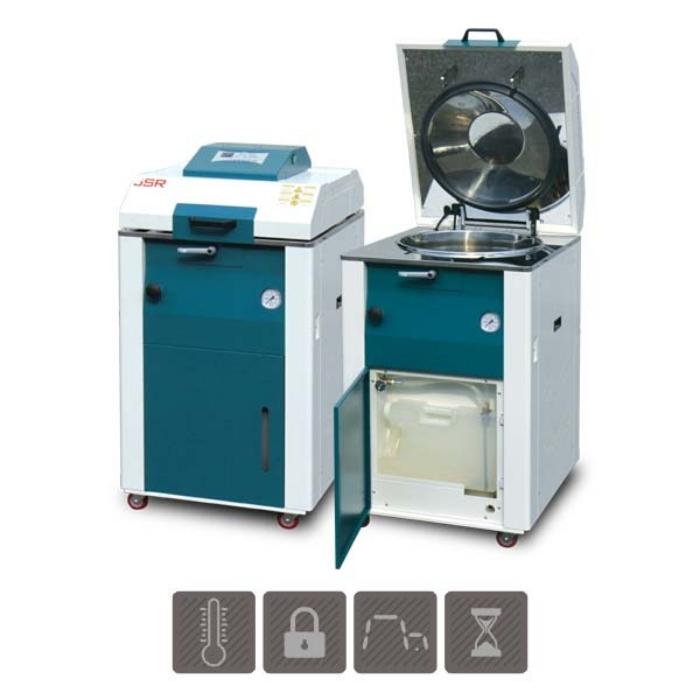

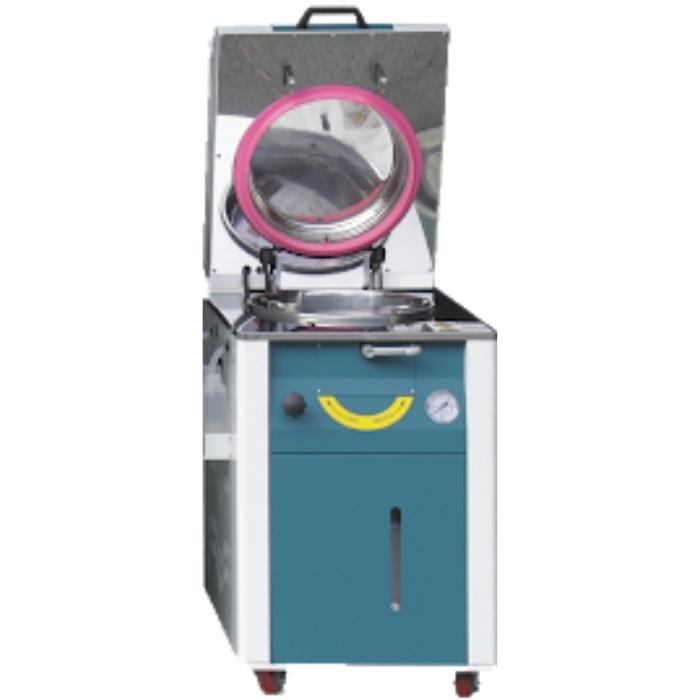

Autoclave Sterilizer (Digital) 85 Liter Maximum 123°C JSAT-85 JSR Korea
JSAT-Series Autoclave, Steam Sterilizer is an innovative replacement of conventional laboratory autoclave by providing reliable performance, up-to-date design, and a safety door inter-lock system integrated with temperature and pressure for perfect user safety.
| Manual |
Specification:

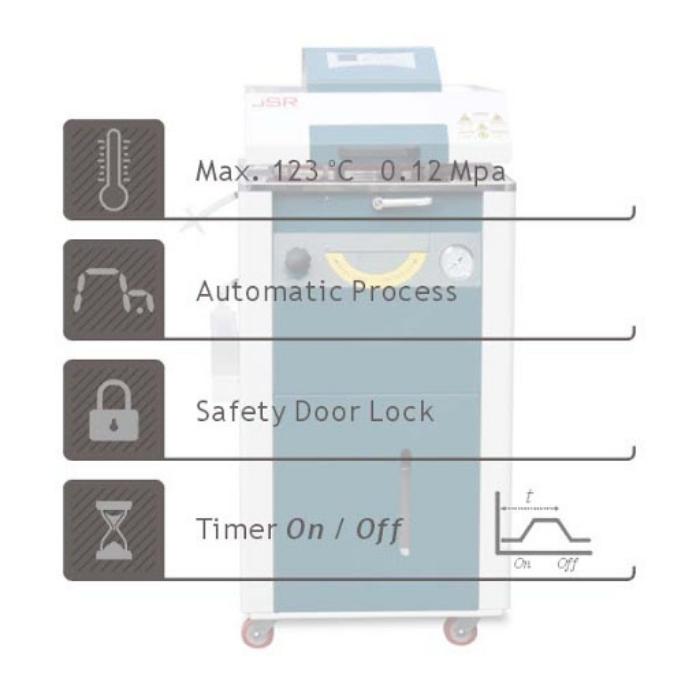

| Temp. Range | Maximum 123 oC |
| Accuracy | ± 0.5 oC at 121 oC |
| Uniformity | ± 2.0 oC at 121 oC |
| Pressure | up to 0.12 Mpa |

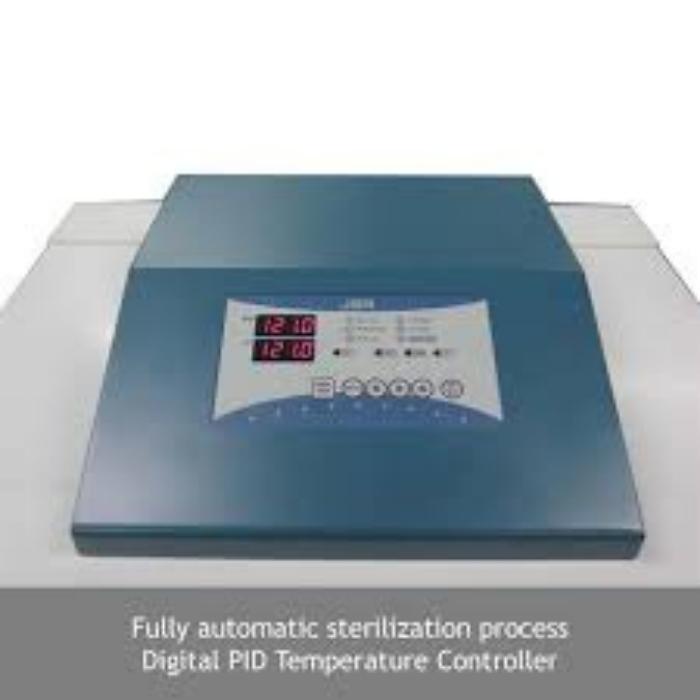

| Control | Fully Automatic Sterilization Process |
| Microprocessor PID Control | |
| Auto START / STOP Timer | |
| Sensor | Class A Pt-100 Ω Sensor |
| Safety | Safety Door Lock |
| Over-Temperature Cut-Off | |
| Over-Pressure Cut-Off | |
| Over Current Cut-Off | |
| Material | Body – Epoxy Powder Coated Steel |

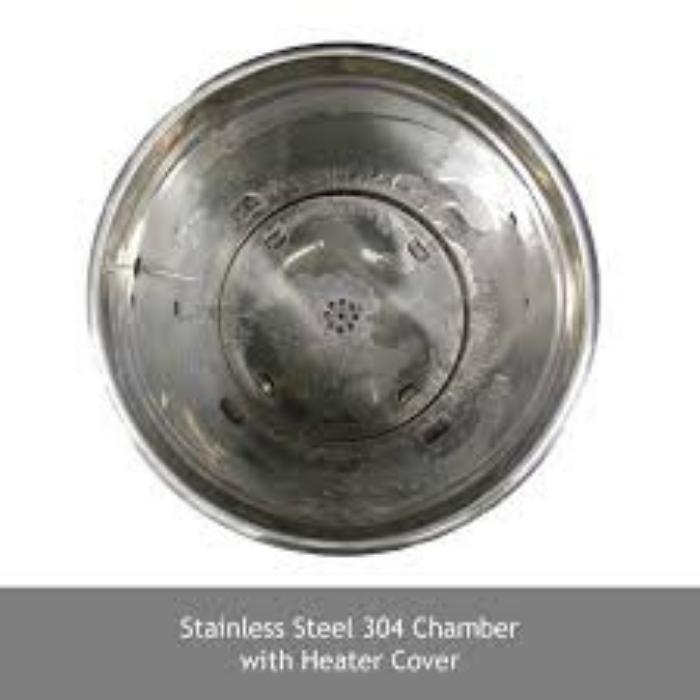

| Chamber – Stainless Steel 304 | |
| Service Basket -Stainless steel 304 wire basket | |
| Electric | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko or BS 1363 or 30 AMP |
Models

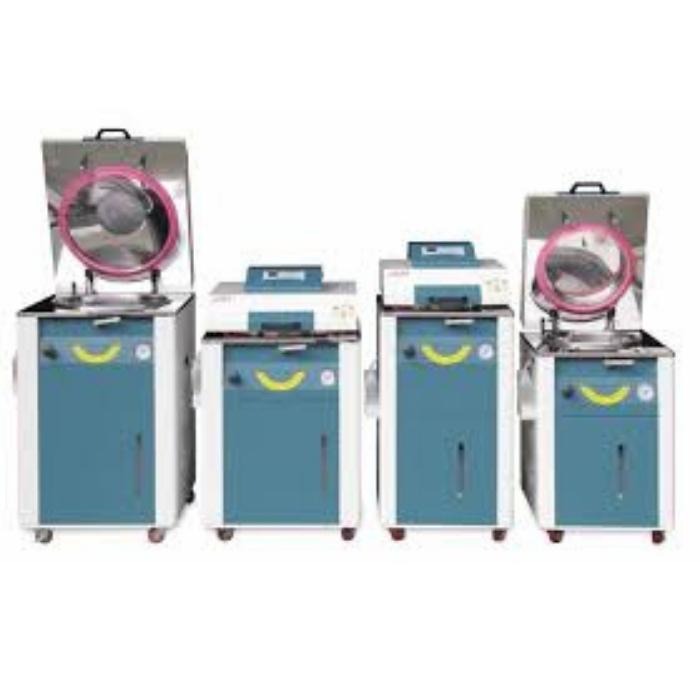

| Art / Model No. | JSAT-45 | JSAT-65 | JSAT-85 | JSAT-105 |
| Chamber Volume | 45 L | 65 L | 85 L | 105 L |
| Dimensions Inner | ∅350 x H490 | ∅350 x H680 | ∅450 x H535 | ∅450 x H665 |
| Dia. x H mm Usable | ∅350 x H410 | ∅350 x H620 | ∅450 x H480 | ∅450 x H610 |
| W x D x H mm Outer | 555 x 670 x 955 | 555 x 670 x 1105 | 655 x 780 x 1010 | 655 x 780 x 1110 |
| Basket | ∅330 x H195 | ∅330 x H280 | ∅430 x H220 | ∅430 x H270 |
| Temperature Range | Up to 123 oC | |||
| Accuracy at 121 oC | ± 0.5 oC | |||
| Uniformity at 121 oC | ± 2.0 oC | |||
| No. of Service Basket | 2 | |||
| Heater Capacity | 2.0 kW | 3.0 kW | 4.0 kW | 5.0 kW |
| Power Rating | 9.2 Amp | 13.7 Amp | 18.2 Amp | 22.8 Amp |
| Electrical Requirements | 220 VAC 50/60Hz 1 Phase | |||
| Power Plug | CEE 7/7 Schuko | 30 AMP | ||
CONVENIENCE
- Two steam collection bottles remove most of the steam generated during operation for a comfortable laboratory environment
- Equipped with drain valve for cleaning and changing with fresh water
- High-pressure and temperature-resistant silicone gasket
- Built-in analog pressure gauge
- Manual pressure release valve
- Caster for easy transport
