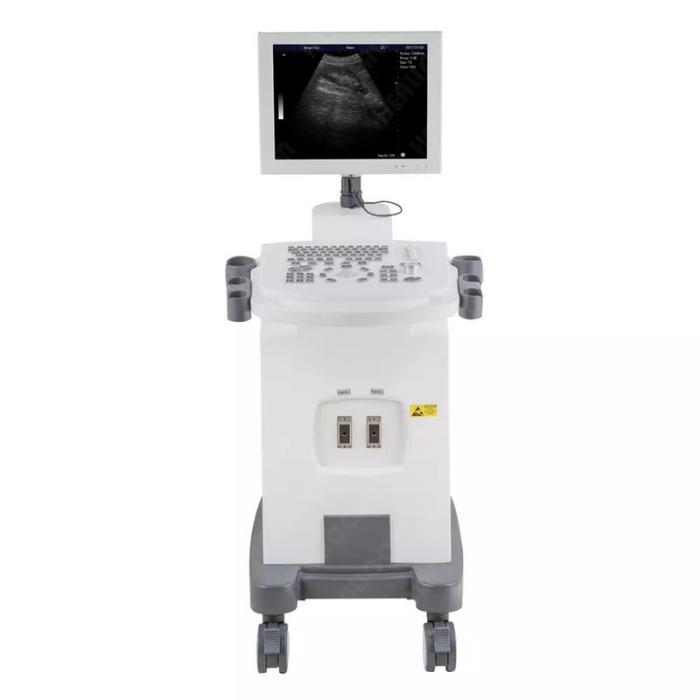

Healicom THBW-10P Full Digital Mobile Ultrasound Scanner
- 15 inch high definition SVGA non-interlaced scanning monitor
- Professional embedded ultrasonic platform,
- High definition full digital image formation technology
- Broadband frequency conversion technology
- To achieve the best combination of high penetration and higher resolution of the organization
- Intellectualized TGC gain control of the whole paragraph 8

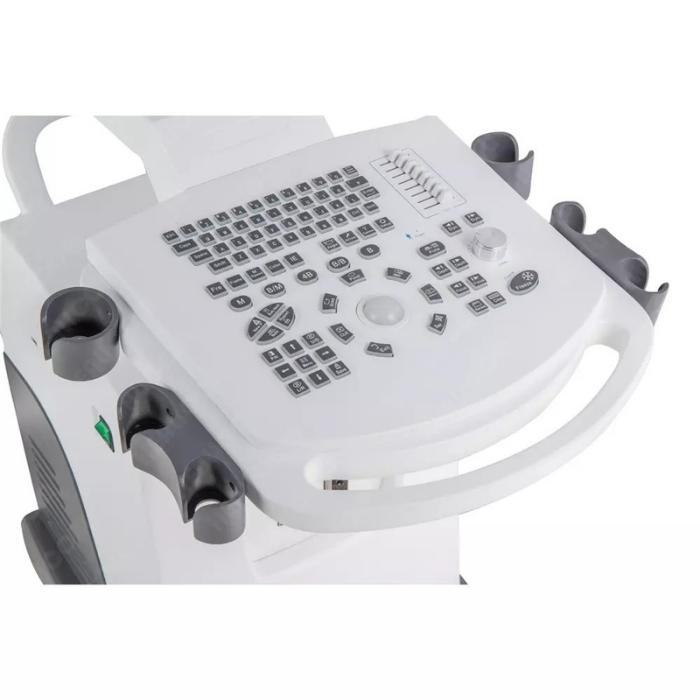

- Reliable backlit, silica gel keyboard, photoelectric-tracking control
- Powerful software functions
Call for details 01842-756014
HBW-10P Full Digital Mobile B/W Ultrasound Scanner
Feature
- 15 inch high definition SVGA non-interlaced scanning monitor
- Professional embedded ultrasonic platform,
- High definition full digital image formation technology
- Broadband frequency conversion technology
- To achieve the best combination of high penetration and higher resolution of the organization
- Intellectualized TGC gain control of the whole paragraph 8
- Reliable backlit, silica gel keyboard, photoelectric-tracking control
- Powerful software functions
Rich clinical application
Application to: abdomen, uterine attachment, superficial tissue and other clinical tests
|
Technical Specifications
|
|
|
Scanning mode
|
Convex/ linear/ micro-convex
|
|
Display
|
15 inch LED
|
|
Display mode
|
B, B B, 4B, B M, M.
|
|
Detecting depth
|
≥244mm
|
|
Lateral resolution
|
≤2mm (depth≤80mm)
≤3mm (80< depth≤130mm) |
|
Axial resolution
|
≤1mm (depth≤80mm)
≤ 2mm (80< depth≤130mm) |
|
Blind Zone
|
≤2 mm
|
|
Geometry precision
|
lateral≤5% ,axial≤5%
|
|
Gray scale
|
256
|
|
Magnification
|
×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0
|
|
Local zoom
|
Yes
|
|
Dynamic scope
|
0~100dB, visible & adjustable
|
|
Electronical focusing
|
multi-point or dynamic focusing
|
|
Pseudo color
|
7
|
|
Measurement
|
distance, perimeter, area, heart rate, gestational week (BPD, CRL, GS, FL, HC, AC, EDD, AFI) etc.
|
|
Note
|
ID, sex, age, hospital, doctor, comment, date, time.
|
|
Body marks
|
30
|
|
Probe interface
|
2
|
|
Puncture guide
|
The puncture guide line can be displayed under B mode.
|
|
Gain control
|
The total gain, 8-segment TGC
|
|
Image conversion
|
up/ down, left / right, black / white
|
|
Cine loop
|
256 frames
|
|
Image review
|
Images can be reviewed successively and checked one by one.
|
|
Image storage
|
40
|
|
Video output
|
SVGA (SVGA color monitor), PAL
|
