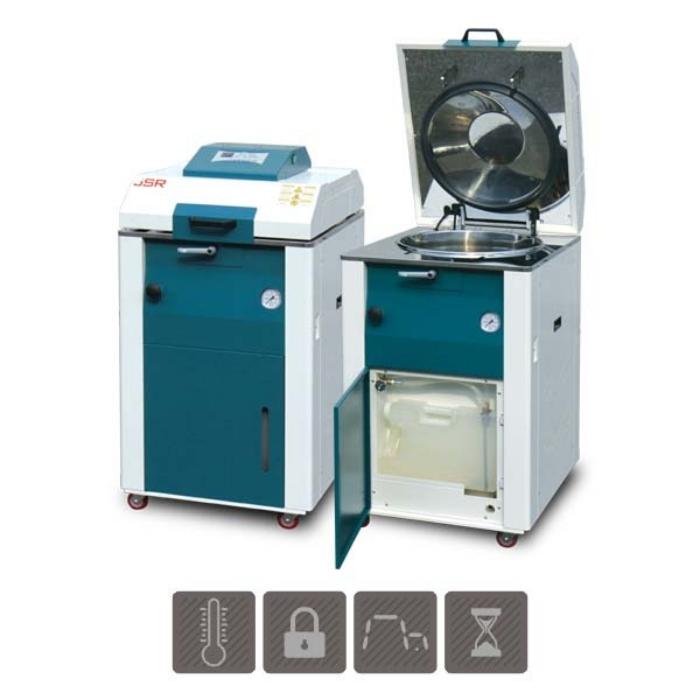

Autoclave Temperature Machine – Autoclave Sterilizer (Digital) 45 Liter Maximum 123°C JSAT-45 JSR Korea
JSAT-Series Autoclave, Steam Sterilizer is an innovative replacement of conventional laboratory autoclave by providing reliable performance, up-to-date design, and a safety door inter-lock system integrated with temperature and pressure for perfect user safety.
 Manual |
Specification:
| Temp. Range | Maximum 123 oC |
| Accuracy | ± 0.5 oC at 121 oC |
| Uniformity | within 2.0 oC above 121 oC |
| Pressure | up to 0.12 Mpa |
| Control | Fully Automatic Sterilization Process |
| Microprocessor PID Control | |
| Auto START / STOP Timer | |
| Sensor | Class A Pt-100 Ω Sensor |
| Safety | Safety Door Lock |
| Over-Temperature Cut-Off | |
| Over-Pressure Cut-Off | |
| Over Current Cut-Off | |
| Material | Body – Epoxy Powder Coated Steel |
| Chamber – Stainless Steel 304 | |
| Service Basket -Stainless steel 304 wire basket | |
| Electric | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko or BS 1363 or 30 AMP |
Models
| Art No. | JSAT-45 | JSAT-65 | JSAT-85 | JSAT-105 | |
| Chamber Volume | 45 L | 65 L | 85 L | 105 L | |
| Dimensions | Inner | ∅350 x H490 | ∅350 x H680 | ∅450 x H535 | ∅450 x H665 |
| Dia. x H mm | Usable | ∅350 x H410 | ∅350 x H620 | ∅450 x H480 | ∅450 x H610 |
| W x D x H mm | Outer | 555 x 670 x 955 | 555 x 670 x 1105 | 655 x 780 x 1010 | 655 x 780 x 1110 |
| Basket | ∅330 x H195 | ∅330 x H280 | ∅430 x H220 | ∅430 x H270 | |
| Temperature Range | Up to 123 oC | ||||
| Accuracy at 121 oC | ± 0.5 oC | ||||
| Uniformity at 121 oC | within 2.0 oC | ||||
| No. of Service Basket | 2 | ||||
| Heater Capacity | 2.0 kW | 2.5 kW | 3.0 kW | 4.0 kW | |
| Power Rating | 9.1 Amp | 11.4 Amp | 13.6 Amp | 18.2 Amp | |
| Electrical Requirements | 220 VAC 50/60Hz 1 Phase | ||||
| Power Plug | CEE 7/7 Schuko | 30 AMP | |||
Features
- Fully Automatic Digital Controller Safety Door Interlocking System
- Light Weight Gas Lifting Door, Durable Silicone Gasket, Stainless Steel 304 Door and Top
- Stainless Steel 304 Chamber Heater Protection Cover
- Steam Collection Bottles Drain Valve 0.2um Air Filter
- IQ/OQ/PQ Validation Ready
PERFORMANCE
- Maximum sterilization temperature and pressure up to 123 oC and 0.13 Mpa
- Automatic sterilization cycle starts just by setting sterilization temperature and time
- Validation compliance performance with accuracy within ± 0.5 oC and uniformity within ± 2.0 oC
