Stroke Hand Rehabilitation Brace (FES) Functional Electric Stimulator – Biofeedback Device

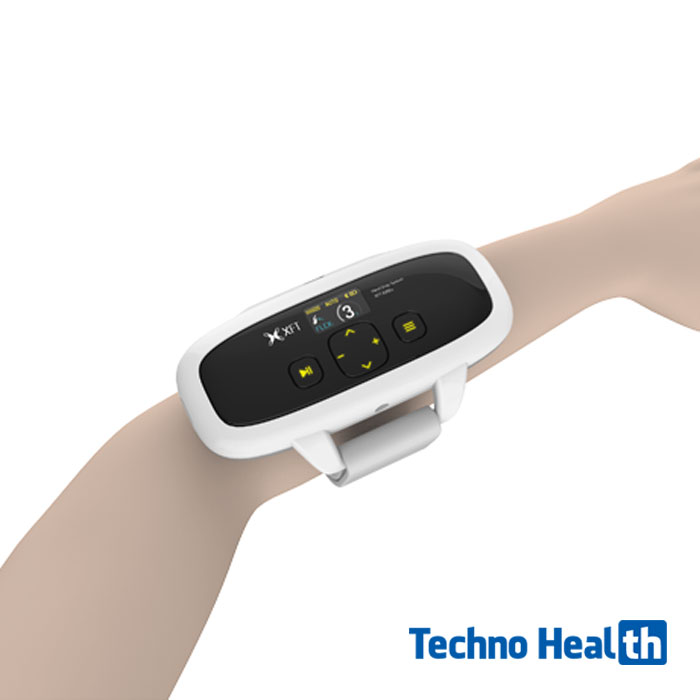

H1 Hand Rehab System is the first wearable hand rehabilitation device based on iOS. H1 combines biofeedback sEMG, Neuromuscular Electrical Stimulation (NMES), EMG Triggered Stimulation (ETS), Power Assistant Stimulation (PAS) and integrated electrode, providing perfect user experience for medical personnel and patients.

Innovations

• Collection and processing technology of patient’s EMG signals
• Latest generation of real-time Power Assistant Stimulation based on EMG
• A combination of biofeedback interactive games and rehabilitation training based on EMG
• Multiple training modes in Rehabilitation APP

Mode Selection

NMES Mode: Under this mode, user can download different prescriptions from APP for different needs.

ETS Mode: Under this mode, user can set up a threshold by the APP. The stimulation will be triggered when the EMG signal reaches the threshold.

PAS Mode: User can set up a threshold by the APP, the stimulation will be triggered when the EMG signal reaches the threshold and will continue as long as the signal is above the threshold.

EMG Mode: Under this mode, the stimulator will detect user’s sEMG signal. After you follow the instruction of 3-second relax and 6-seccond measuring cycle for 3 times, the stimulation will display the average value, and the average will be set as the threshold in ETS and PAS.

GAME Mode: This mode combines rehabilitation and games. The stimulator transits the EMG signals to the APP via Bluetooth. The APP controls the speed and position of the games according to the signals. It improves the rehabilitation level and strengthens patient’s motivation of training.

Button Instruction

Technical Specification
